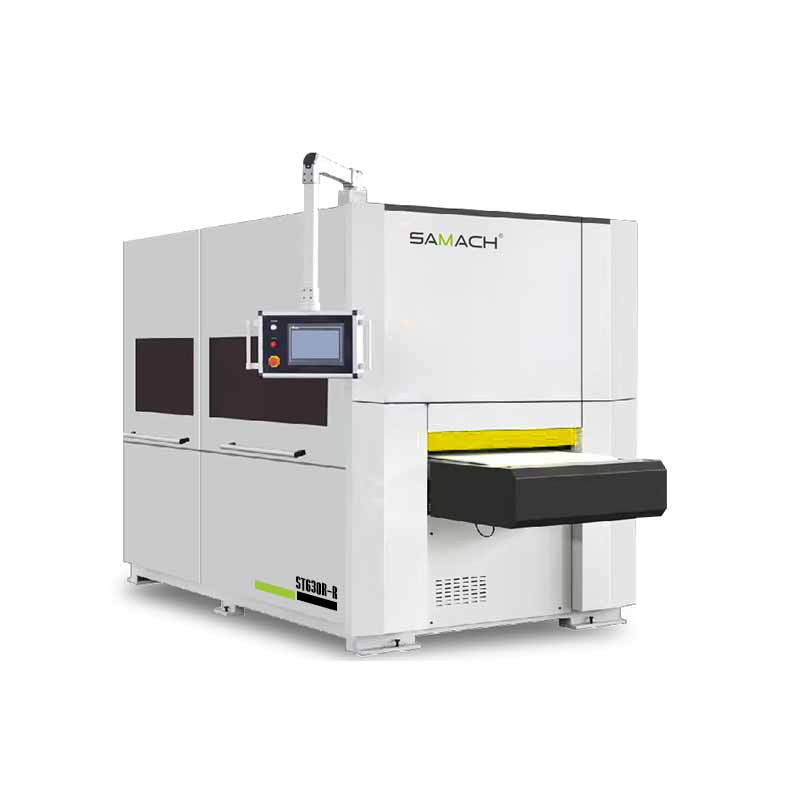

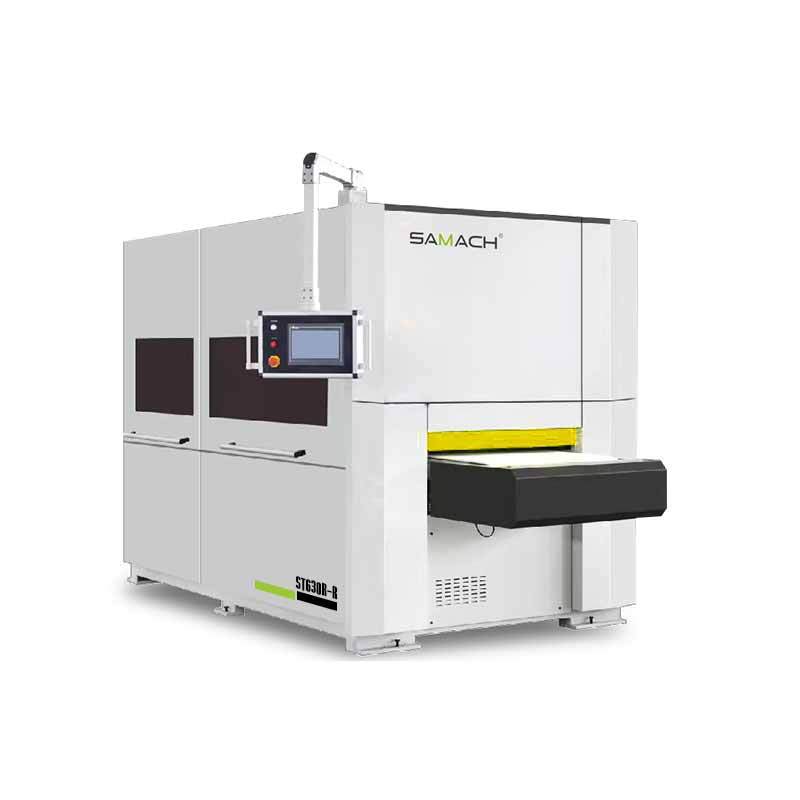

Deburring Machine with R-R Series

Applicable processes：Remove oxide layer, Drawing（NO4 Snowflake）
Function：
- Uses a vacuum suction workbench, suitable for processing small-sized workpieces.
- The contact roller can rotate both forward and backward, adjustable with one button for convenience and speed.
- The contact roller can be independently raised and lowered, automatically lifting in case of equipment failure to protect the panels from damage.
- Uses a heat-resistant, corrosion-resistant thickened conveyor belt, with high elasticity and strength.
- The magnetic scale positions the workbench height, making positioning more accurate.

Model	RST630R-R	RST1000R-R	RST1300R-R
Effective working width	30-630mm	30-1000mm	30-1300mm
Working thickness	0.5-100mm	0.5-100mm	0.5-100mm
Roller line speed	3-16m/s Variable frequency	3-16m/s Variable frequency	3-16m/s Variable frequency
Abrasive belt size(perimeter*width)	1900*650mm	2000*1020mm	2200*1320mm
1 roller configuration	Ø190mmSH45 Eccentric Roller	Ø190mmSH45 Eccentric Roller	Ø240mmSH45 Eccentric Roller
2 roller configuration	Ø190mmSH45 Straight Shaft Roller	Ø190mmSH45 Straight Shaft Roller	Ø240mmSH45 Straight Shaft Roller
1 roller motor power	7.5kw	11kw	15kw
2 roller motor power	7.5kw	11kw	15kw
Conveyor motor power	1.5kw	1.5kw	1.5kw
Workbench lifting power	0.55kw	0.55kw	0.55kw
Vacuum adsorption power	7.5kw	7.5kw	7.5kw
Total power	24.55kw	31.55kw	39.55kw
Air pressure	≥0.6Mpa	≥0.6Mpa	≥0.6Mpa
Overall dimensions	230016802350mm	235020002350mm	255022002410mm
Weight	2000kg	2800kg	3500kg
