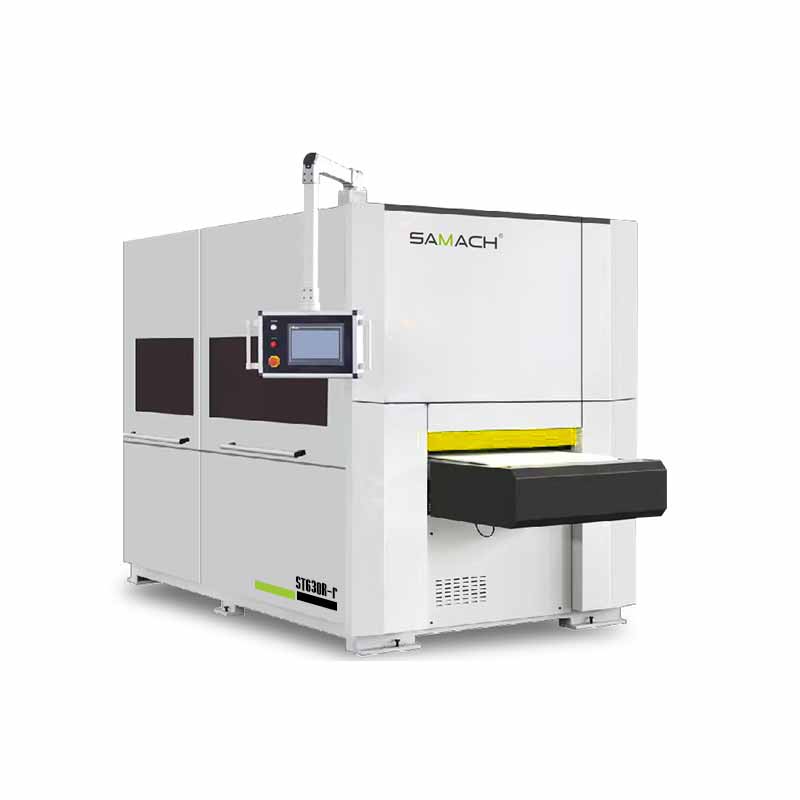

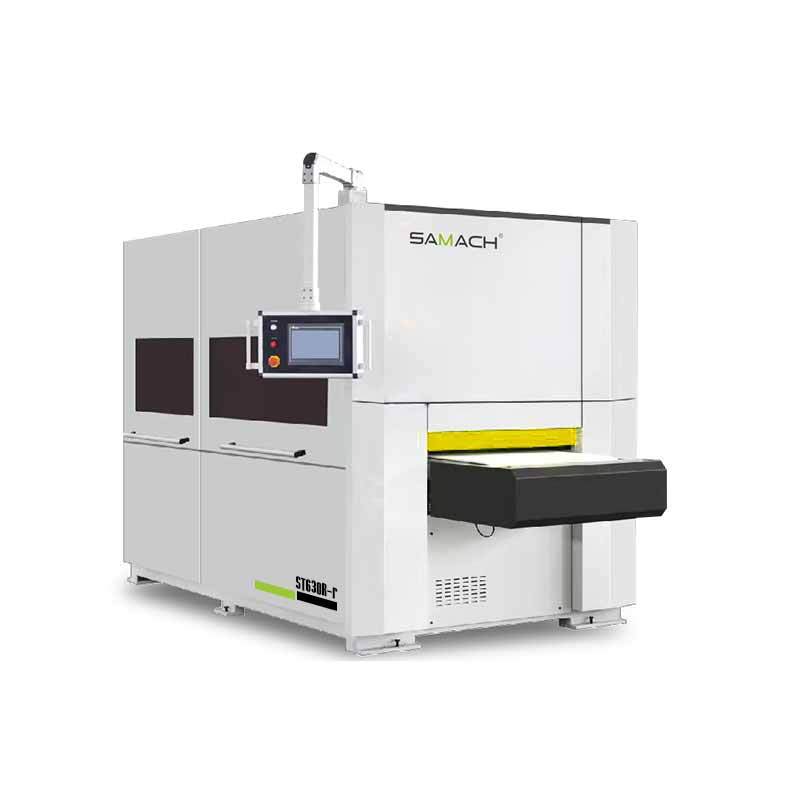

Deburring Machine with R-r Series

Applicable processes：Remove oxide layer, Drawing（HL long straight）
Function：
- Uses a vacuum suction workbench, suitable for processing small-sized workpieces.
- Polishing rollers can be raised and lowered independently, suitable for polishing workpieces of different thicknesses.
- Contact rollers can be raised and lowered independently, automatically lifting in case of equipment malfunction to protect the panels from damage.
- Uses a heat-resistant, corrosion-resistant thickened conveyor belt, with high elasticity and strength.
- Magnetic scale positioning of the workbench height allows for more precise positioning.

Model	RST630R-r	RST1000R-r	RST1300R-r
Effective working width	30-630mm	30-1000mm	30-1300mm
Working thickness	0.5-100mm	0.5-100mm	0.5-100mm
Roller line speed	3-16m/s Variable frequency	3-16m/s Variable frequency	3-16m/s Variable frequency
Abrasive belt size(perimeter*width)	1900*650mm	2000*1020mm	2200*1320mm

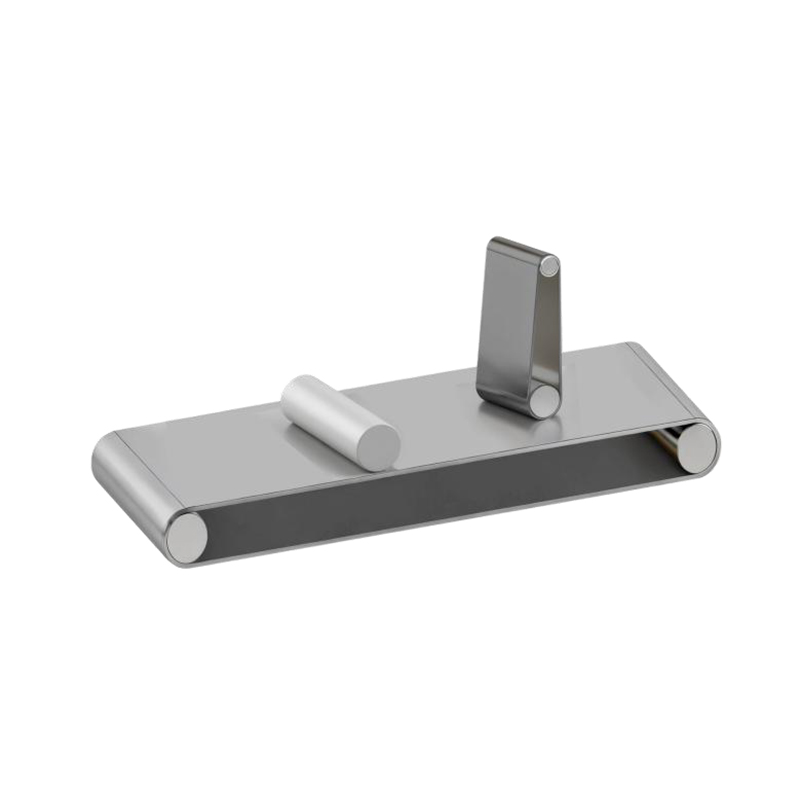

1 roller configuration	Ø190mmSH45 Eccentric Roller	Ø190mmSH45 Eccentric Roller	Ø240mmSH45 Eccentric Roller
2 roller configuration	3M Polishing roller	3M Polishing roller	3M Polishing roller
1 roller motor power	7.5kw	11kw	15kw
2 roller motor power	4kw	7.5kw	11kw
Polishing roller lifting power	0.37KW	0.37KW	0.55kw
Polishing roller swinging power	0.55KW	0.55KW	0.55kw
Conveyor motor power	1.5kw	1.5kw	1.5kw
Workbench lifting power	0.55kw	0.55kw	0.55kw
Vacuum adsorption power	7.5kw	7.5kw	7.5kw
Total power	21.97kw	28.91kw	36.65kw
Air pressure	≥0.6Mpa	≥0.6Mpa	≥0.6Mpa
Overall dimensions	220016802350mm	225020002350mm	245022002410mm
Weight	1900kg	2650kg	3300kg
