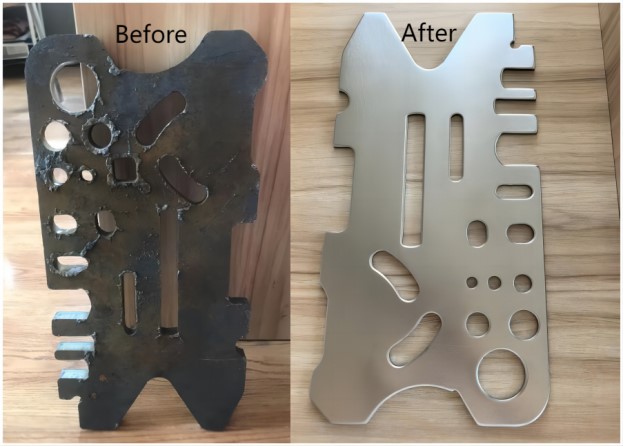

- Applicable processes：Remove welding slag, Remove oxide layer, Deburring, Corner Rounding
- Function：
- The contact roller can rotate forward and backward, adjustable with one key, convenient and fast.
- The universal roller uses a dual-direction flexible polishing with thousands of filaments to remove burrs inside holes and on edges of workpieces, achieving a chamfering effect.
- The universal roller features an independently liftable design, suitable for polishing workpieces of different thicknesses.
- Operates with self and driven rotation; the variable frequency speed-controlled universal roller allows achieving different R angle requirements.
- Uses a vacuum suction workbench, capable of processing small-sized workpieces.
| Model | RST630G-R-W | RST1000G-R-W | RST1300G-R-W |
| Effective working width | 30-630mm | 30-1000mm | 30-1300mm |
| Working thickness | 0.5-100mm | 0.5-100mm | 0.5-100mm |
| Roller line speed | 3-16m/s Variable frequency | 3-16m/s Variable frequency | 3-16m/s Variable frequency |
| Abrasive belt size(perimeter*width) | 1900*650mm | 2000*1020mm | 2200*1320mm |
| Universal roller quantity | 4pcs | 6pcs | 8pcs |
| G-frame power | 4KW | 7.5KW | 11KW |
| G-frame lifting power | 0.37KW | 0.37KW | 0.55KW |
| Contact roller power | 7.5kw | 11kw | 15kw |
| Universal rolle power | 1.5kw*2 | 2.2kw*1 1.5kw*2 | 2.2kw*4 |
| Universal roller rotation power | 0.75kw | 0.75kw | 0.75kw |
| Universal roller lifting power | 0.55kw | 0.55kw | 0.55kw |
| Conveyor motor power | 1.5kw | 1.5kw | 1.5kw |
| Workbench lifting power | 0.55kw | 0.55kw | 0.55kw |
| Vacuum adsorption power | 15kw | 15kw | 15kw |
| Total power | 33.22kw | 42.42kw | 53.7kw |
| Air pressure | ≥0.6Mpa | ≥0.6Mpa | ≥0.6Mpa |
| Overall dimensions | 3100*1680*2350mm | 3500*2000*2350mm | 4000*2200*2410mm |
| Weight | 3350kg | 3900kg | 4600kg |
