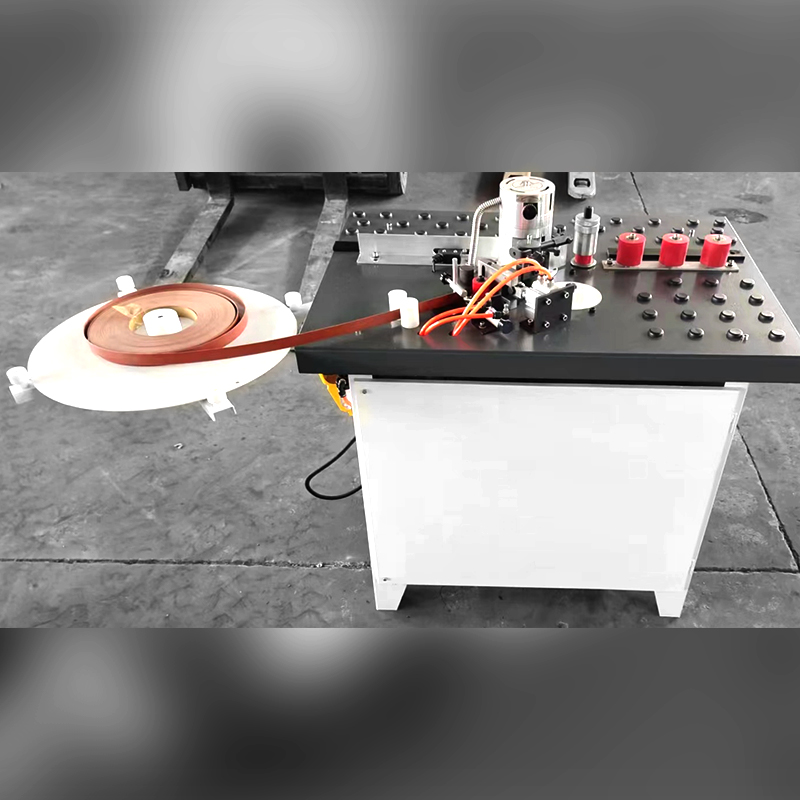

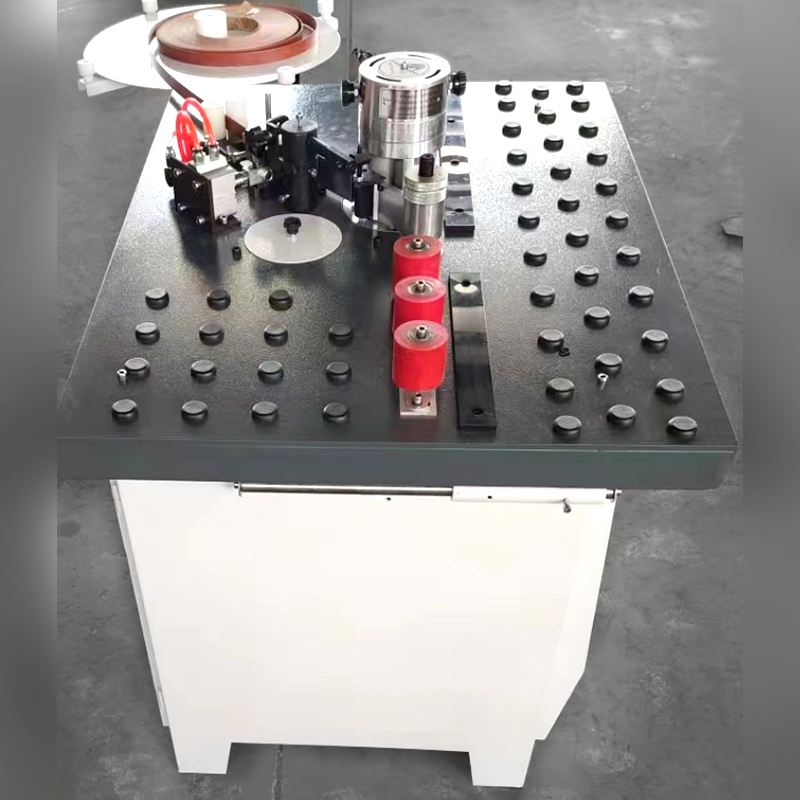

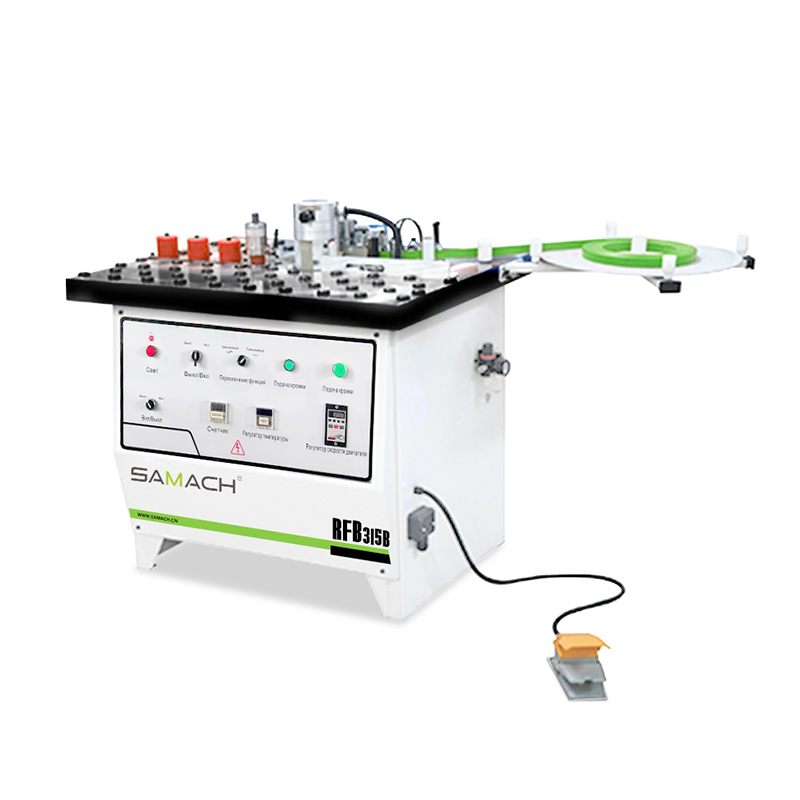

Curve & Linear Edge Banding Machine
- SUITABLE EDGEBAND: BENDABLE MELAMINE PAPER, WOOD VENEER, PVC AND OTHER FURNITURE EDGE MATERIAL
- SUITABLE GLUE: MEDIUM AND LOW TEMPERATURE GLUE WITH MELTING POINT 160-170
- SUITABLE PLATES: BOARD BONDED WITH GLUE, PARTICLEBOARD, MDF AND ALL SORTS OF PLATES ETC
- EDGE SHAPE: STRAIGHT, CURVE, THE OUTER ARC, INNER ARC AND CIRCULAR(ARC RADIUS ABOVE 20MM), UNLIMITED BORDERS LENGTH
| Model | CME-315B |
| Edge band thickness | 0.3-3mm |
| Panel thickness | 10-40mm |
| Min panel length | 150mm |
| Feed speed | 1-14m/min |
| Total power | 2kw |
| Work pressure | 0.4-0.5Mpa |
| Dimensions | 1000*800*1000m |
| Weight | 180kg |
