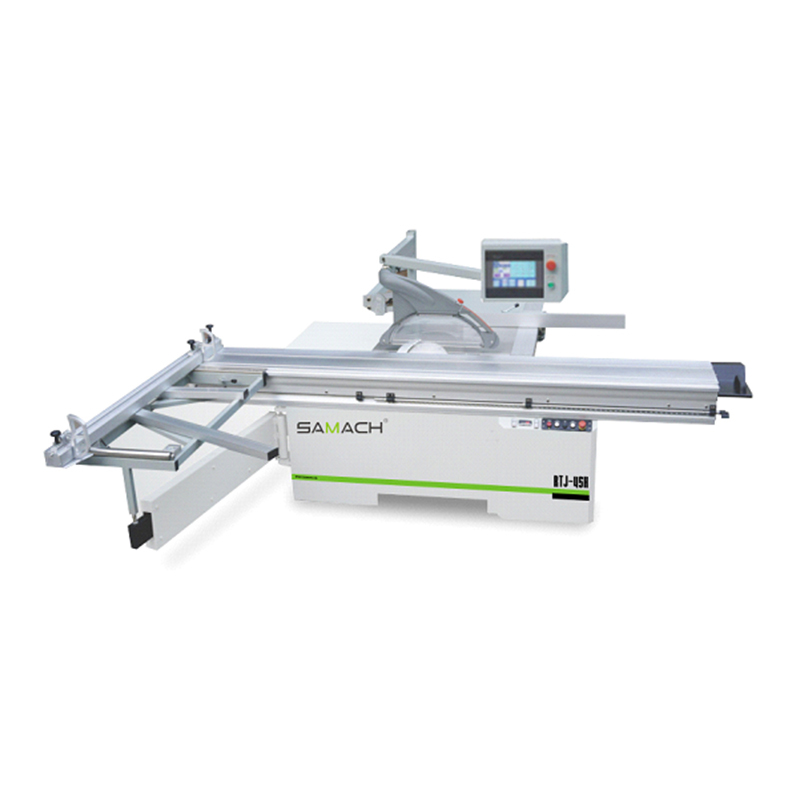

CNC Sliding Panel Saw

  • APPLY TO PROCESSING ALL KINDS OF DENSITY BOARDS, SHAVING BOARDS, WOOD BASED PANELS, ABS PANELS, PVC PANELS, SOLID WOOD, ETC

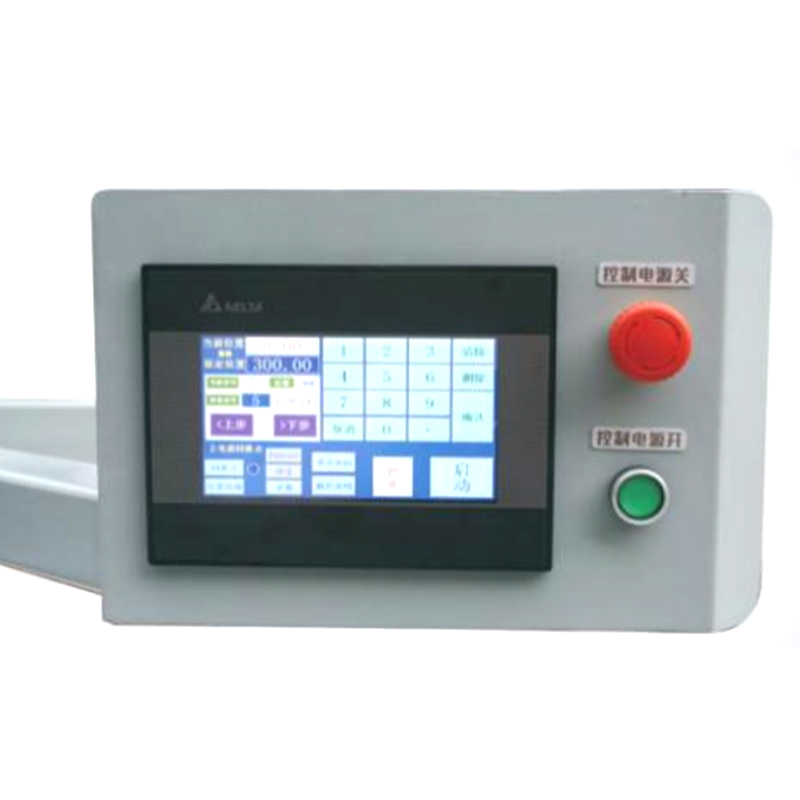

  • 7" TOUCH SCREEN CONTROL PANEL WHICH IS EASY TO OPERATE

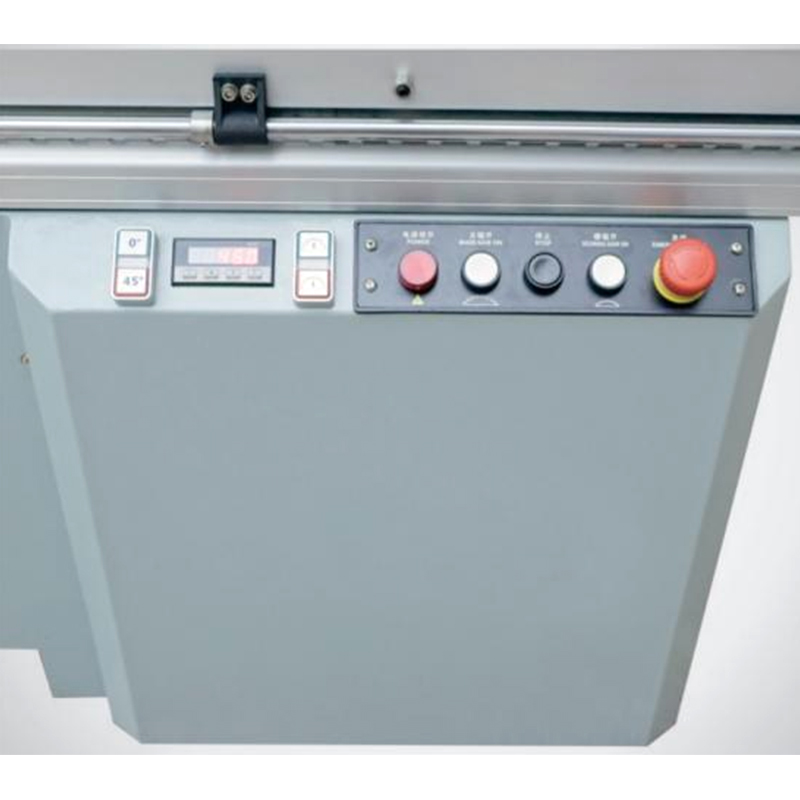

  • ELECTRICAL LIFTING AND TILTING WITH DIGITAL DISPLAY OF ANGLE
  • MOTOR OF MAIN SAW: 5.5KW(6.5KW IS OPTIONAL). MOTOR OF GROOVING SAW: 1.1KW

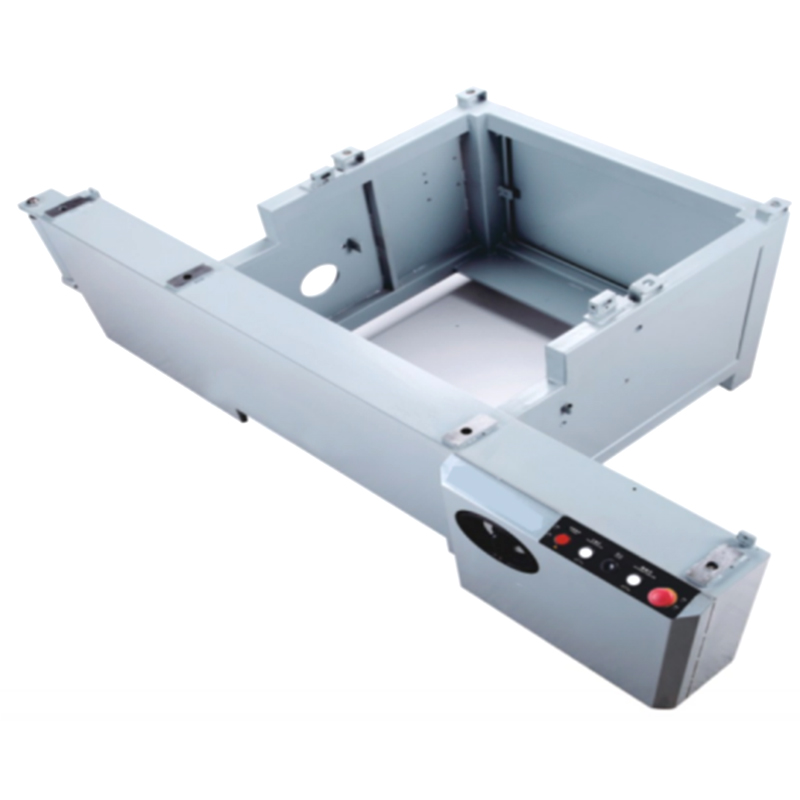

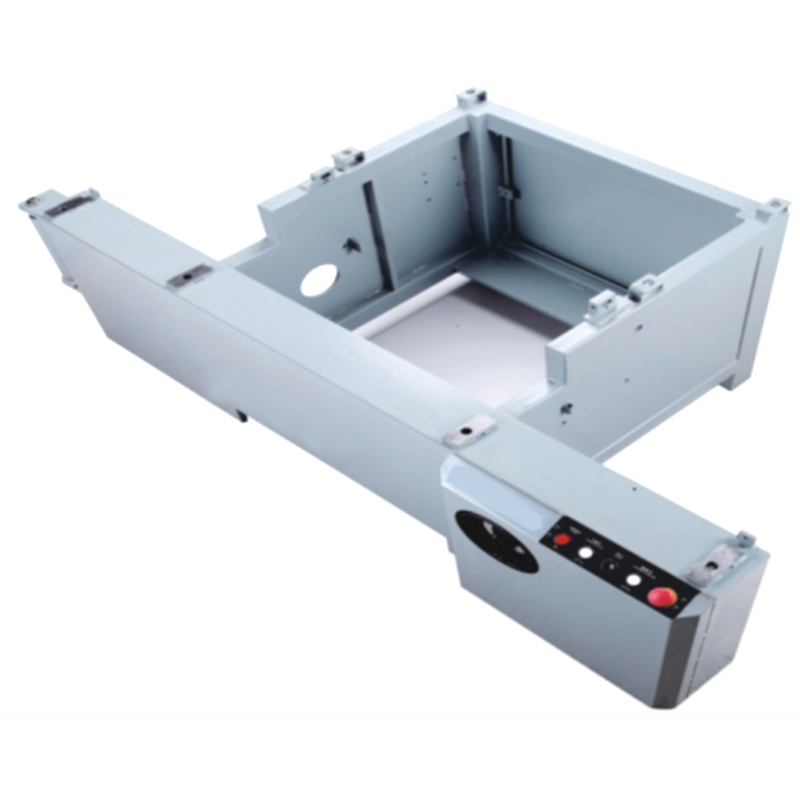

  • THE 6MM-10MM STEEL PLATE IS WELDED TO THE SQUARE TUBE LOAD-BEARING BEAM
  • MANUAL SCALING-OFF, ACCURACY: ±0.1MM
Model RTJ-45X
Main saw blade max. diameter 350mm
Main saw blade min. diameter 250mm
Main saw blade thickness 3.2mm
Main saw shaft diameter 30mm
Groove saw blade max. diameter 120mm
Groove saw shaft diameter 20mm
Main saw motor power 5.5kw(6.5kw is optional)
Groove saw motor power 1.1kw
Main spindle rotate speed 4000/5000rpm
Groove saw shaft speed 8200rpm
Sliding table max. sawing length 3100mm
Saw blade tilt range 0-45 °
Main motor lifting power 55W
Angle motor power 25W
Machine weight 850Kg
