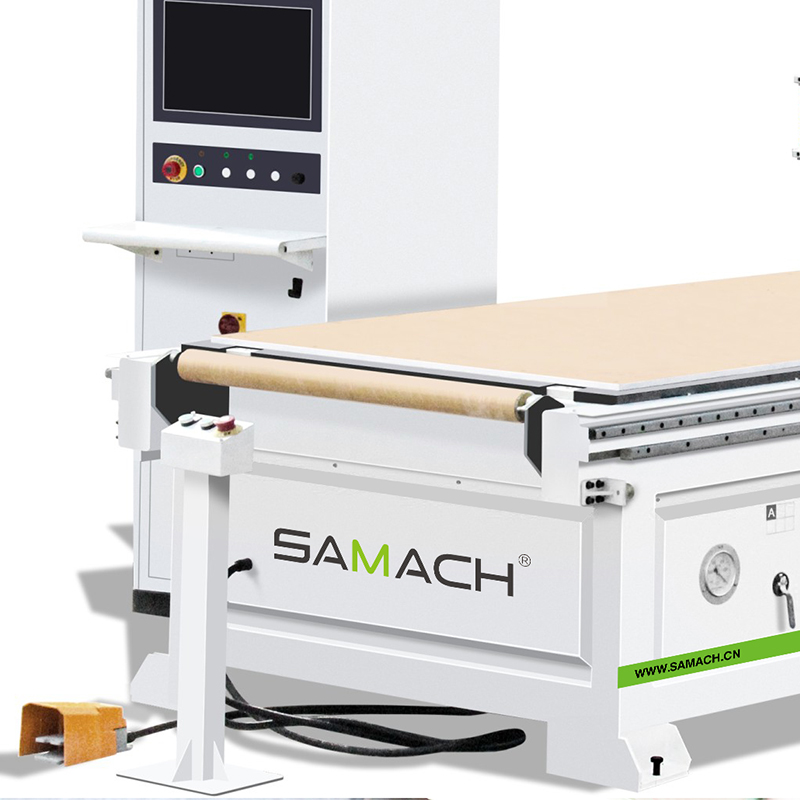

CNC Router Line with Double Vacuum Work Tables

  • 6KW*2 SPINDLE + 9 DRILLING BLOCKS
  • 2 VACUUM WORK TABLES, WORK STROKE: 1300*5000*50MM
  • ADAPTS DXF MPR XML COMMON FURNITURE FORMAT
  • JAPAN YASKAWA SERVO AND DRIVER
  • 5.5KW FULLING INVERTER
  • SYNTEC/NCSTUDIO COMPUTER CONTROL SYSTEM
  • 7.5KW WATER PUMP
Model RKS-2Z+9V
Work stroke 1300*5000*50mm
Spindle Brand HQD 6KW*2 air cooling
Spindle Speed 18000r/min

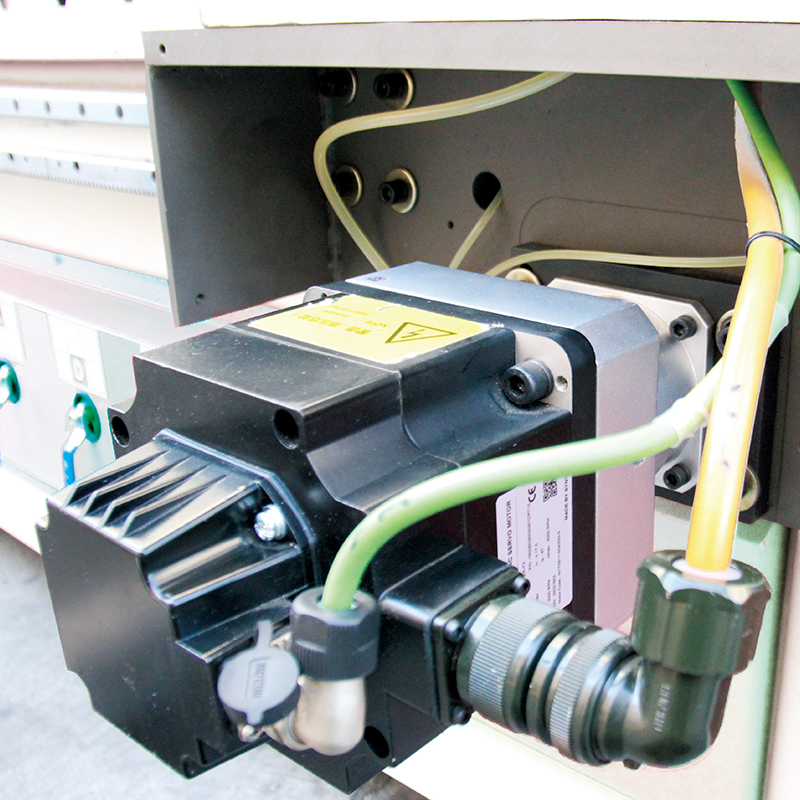

Drive system Japan Yaskawa 850W servo drive

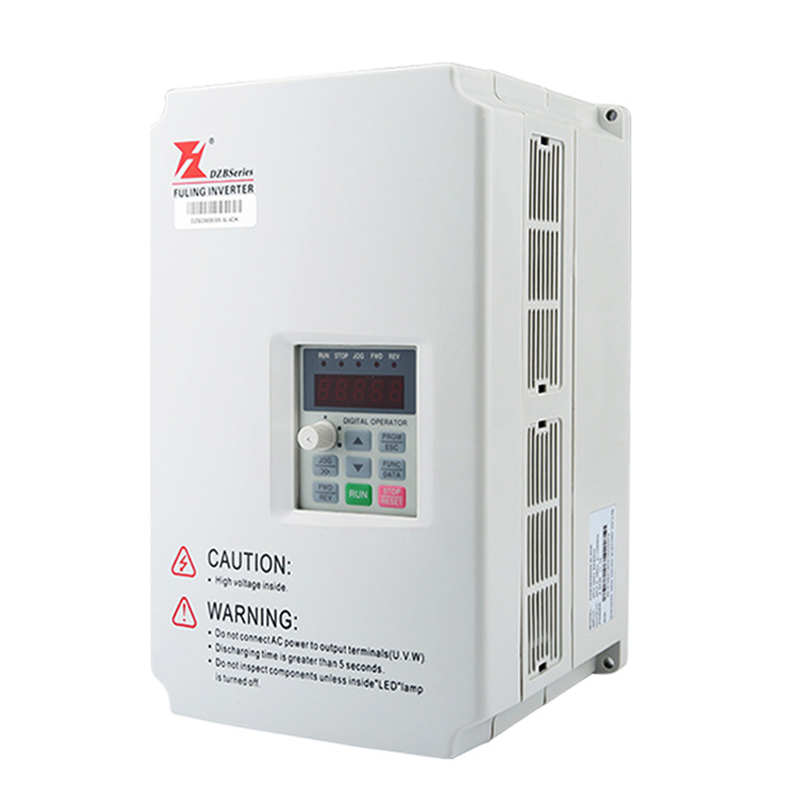

Inverter Fulling 5.5KW
Guide rail X/Y/X axis 25mm
Positioning cylinder X axis 2sets

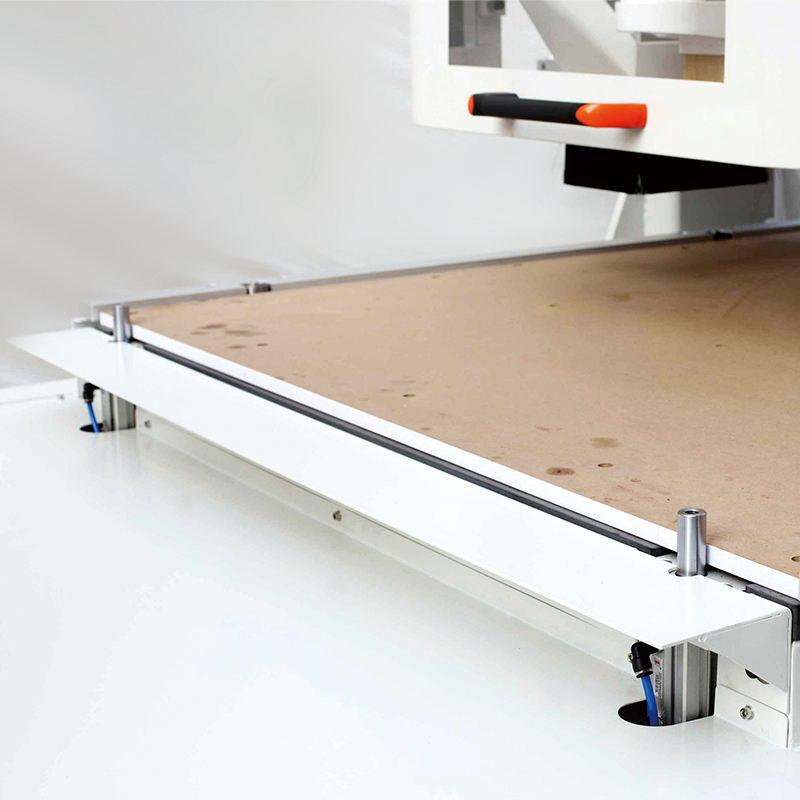

Positioning bar Y axis Installed in two sides of Y axis
PVC vacuum adsorption Total 6 areas, 2 holes in each area
Vacuum Pump Domestic water cycle 7.5kw

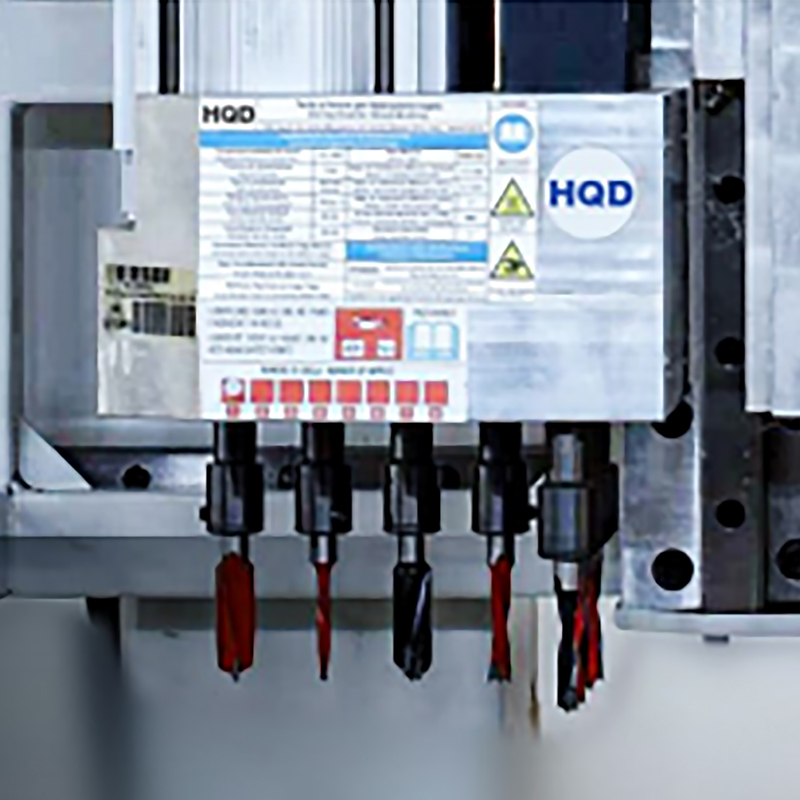

Drill group HQD 5+4 vertical
Reducer Helical gear reducer, 2m rack
Max. Idling speed X/Y axis: 75m/min, Z axis: 15m/min
Max. work speed X/Y axis: 25m/min, Z axis: 10m/min
Total power 17kw
Work voltage 380V 50HZ 3P
Operation instruction G-code, *.NC

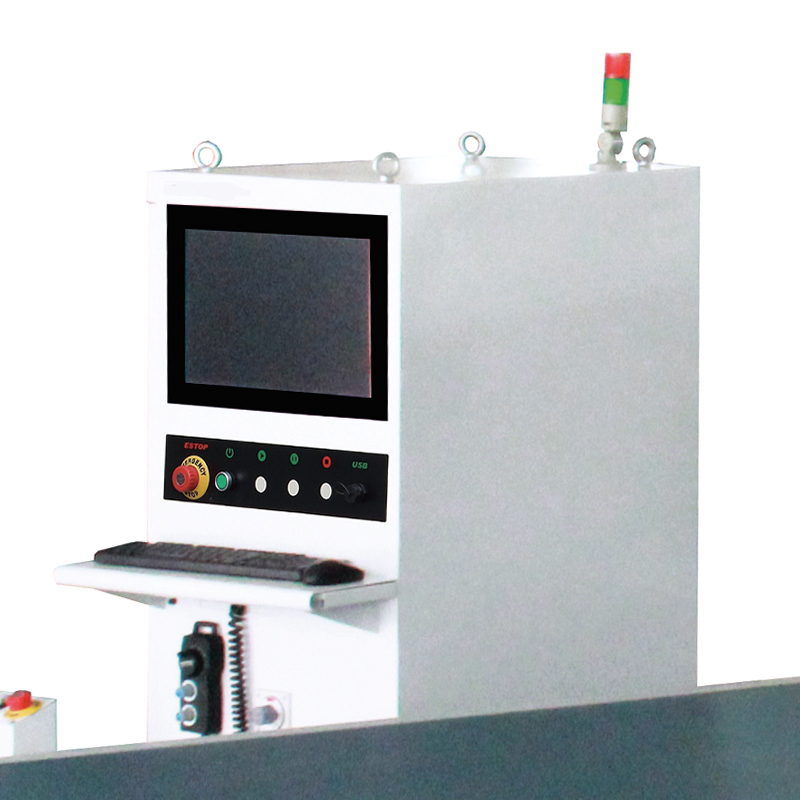

Operation system Syntec FC computer control system
(display monitor and handwheel)
