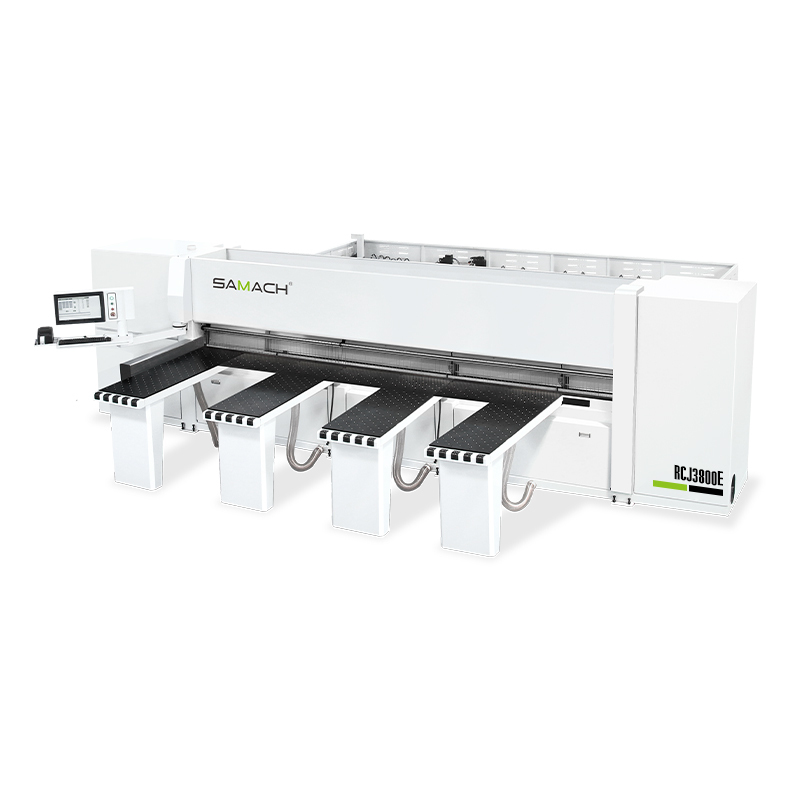

CNC Panel Saw RCJ3800E-4500E

  • INDEPENDENT LIFTING OF MAIN AND GROOVE SAWS, 15KW FOR MAIN MOTOR, 2.2KW FOR GROOVE
  • PERFECT COMBINATION OF RACK AND PINION TRANSMISSION AND REDUCER CONTROL ACHIEVE ±0.15 ACCURACY
  • WITH 8/11/13/15/17/18 PCS OF GRIPPERS FOR DIFFERENT WIDTH BOARDS
  • BAR CODER WHICH CAN READ COMMON FILES, MPR, DXF, BAN, ETC
  • UPPER SIDE PRESSURE DEVICE
Model RCJ3800E RCJ4200E RCJ4500E
Work length 3750mm 4150mm 4450mm
Work thickness 100mm 100mm 100mm
Main saw blade diameter Ф350mm Ф350mm Ф350mm
Main saw shaft diameter Ф80mm Ф80mm Ф80mm
Main saw shaft speed 4800rpm 4800rpm 4800rpm
Groove saw blade diameter Ф180mm Ф180mm Ф180mm
Groove saw shaft diameter Ф55mm Ф55mm Ф55mm
Groove saw shaft speed 6900rpm 6900rpm 6900rpm
Saw base forward speed 100m/min 100m/min 100m/min
Saw base retreat speed 150m/min 150m/min 150m/min
Main saw motor 15kw 15kw 15kw
Groove saw motor 2.2kw 2.2kw 2.2kw
Saw base drive motor 1.5kw 1.5kw 1.5kw
Automatic feeding motor 2.0kw 2.0kw 2.0kw
High pressure blower motor 2.2kw 2.2kw*2 2.2kw*2
Total power 23kw 23kw 23kw
Automatic feeding speed 100m/min 100m/min 100m/min
Gripper quantity 15 17 18
Air pressure 5-7kg/cm² 5-7kg/cm² 5-7kg/cm²
Height of worktable away ground 950mm 950mm 950mm
Machine size 6400*6300*1800mm 6800*6700*1800mm 7100*7000*1800mm
Optimization software&Printer Optional Optional Optional
