- INDEPENDENT LIFTING OF MAIN AND GROOVE SAWS, 15KW FOR MAIN MOTOR, 2.2KW FOR GROOVE
- PERFECT COMBINATION OF RACK AND PINION TRANSMISSION AND REDUCER CONTROL ACHIEVE ±0.15 ACCURACY
- WITH 8/11/13/15/17/18 PCS OF GRIPPERS FOR DIFFERENT WIDTH BOARDS
- BAR CODER WHICH CAN READ COMMON FILES, MPR, DXF, BAN, ETC
- UPPER SIDE PRESSURE DEVICE

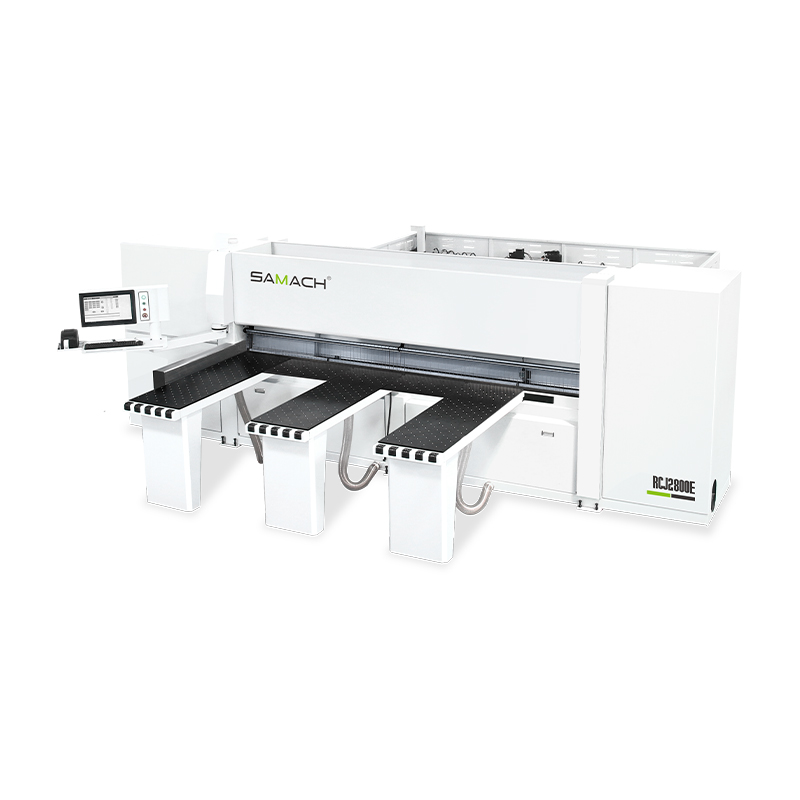

| Model | RCJ2800E | RCJ3300E |
| Work length | 2750mm | 3250mm |
| Work thickness | 100mm | 100mm |
| Main saw blade diameter | Ф350mm | Ф350mm |
| Main saw shaft diameter | Ф80mm | Ф80mm |
| Main saw shaft speed | 4800rpm | 4800rpm |
| Groove saw blade diameter | Ф180mm | Ф180mm |
| Groove saw shaft diameter | Ф55mm | Ф55mm |
| Groove saw shaft speed | 6900rpm | 6900rpm |
| Saw base forward speed | 100m/min | 100m/min |
| Saw base retreat speed | 150m/min | 150m/min |
| Main saw motor | 15kw | 15kw |
| Groove saw motor | 2.2kw | 2.2kw |
| Saw base drive motor | 1.5kw | 1.5kw |
| Automatic feeding motor | 2.0kw | 2.0kw |
| High pressure blower motor | 3kw | 3kw |
| Total power | 23kw | 23kw |
| Automatic feeding speed | 100m/min | 100m/min |
| Gripper quantity | 11 | 13 |
| Air pressure | 5-7kg/cm² | 5-7kg/cm² |
| Height of worktable away ground | 950mm | 950mm |
| Machine size | 5400*5300*1800mm | 5900*5800*1800mm |
| Optimization software&Printer | Optional | Optional |
