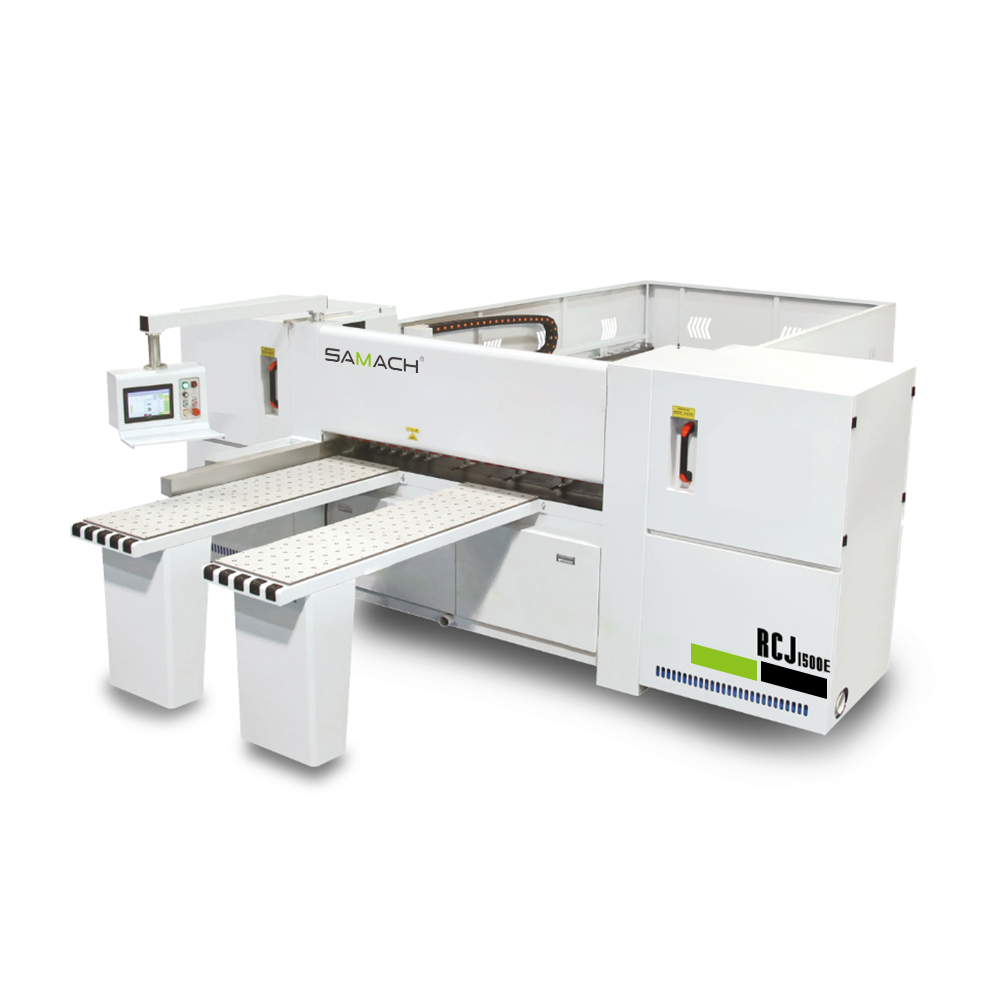

CNC Panel Saw RCJ1500E

INDEPENDENT LIFTING OF MAIN AND GROOVE SAWS, 15KW FOR MAIN MOTOR, 2.2KW FOR GROOVE
PERFECT COMBINATION OF RACK AND PINION TRANSMISSION AND REDUCER CONTROL ACHIEVE ±0.15 ACCURACY
WITH 8/11/13/15/17/18 PCS OF GRIPPERS FOR DIFFERENT WIDTH BOARDS
BAR CODER WHICH CAN READ COMMON FILES, MPR, DXF, BAN, ETC
UPPER SIDE PRESSURE DEVICE

Model	RCJ1500E
Work length	1450mm
Work thickness	100mm
Main saw blade diameter	Ф355mm
Main saw shaft diameter	Ф80mm
Main saw shaft speed	4800rpm
Groove saw blade diameter	Ф180mm
Groove saw shaft diameter	Ф55mm
Groove saw shaft speed	6900rpm
Saw base forward speed	100m/min
Saw base retreat speed	150m/min
Main saw motor	15kw
Groove saw motor	2.2kw
Saw base drive motor	1.5kw
Automatic feeding motor	2.0kw
High pressure blower motor	2.2kw
Total power	23kw
Automatic feeding speed	100m/min
Gripper quantity	8
Air pressure	5-7kg/cm²
Height of worktable away ground	950mm
Machine size	410040001800mm
Optimization software&Printer	Optional
