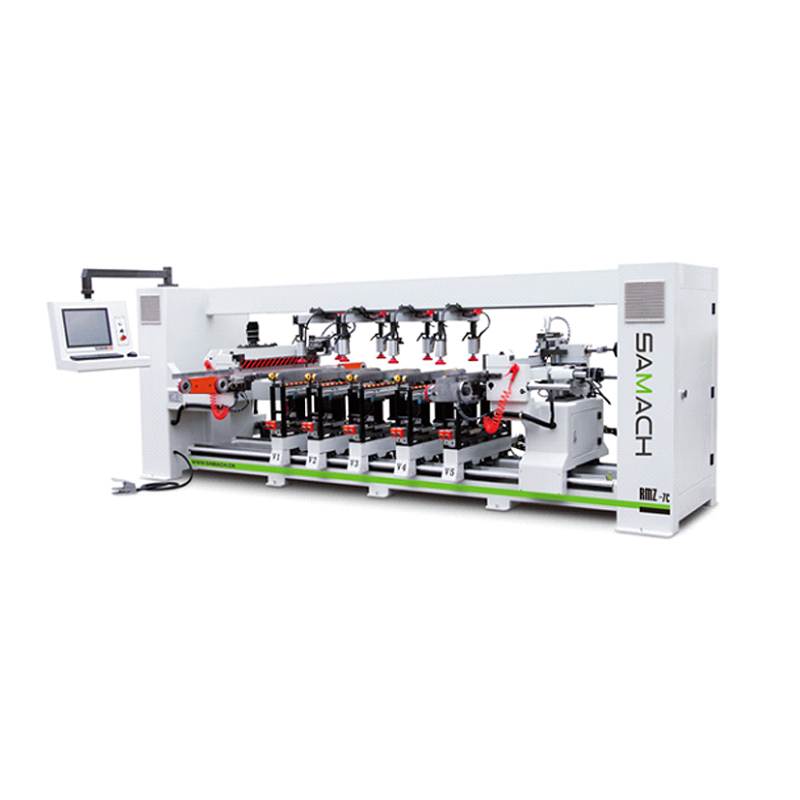

CNC Multi Rows Drilling Machine

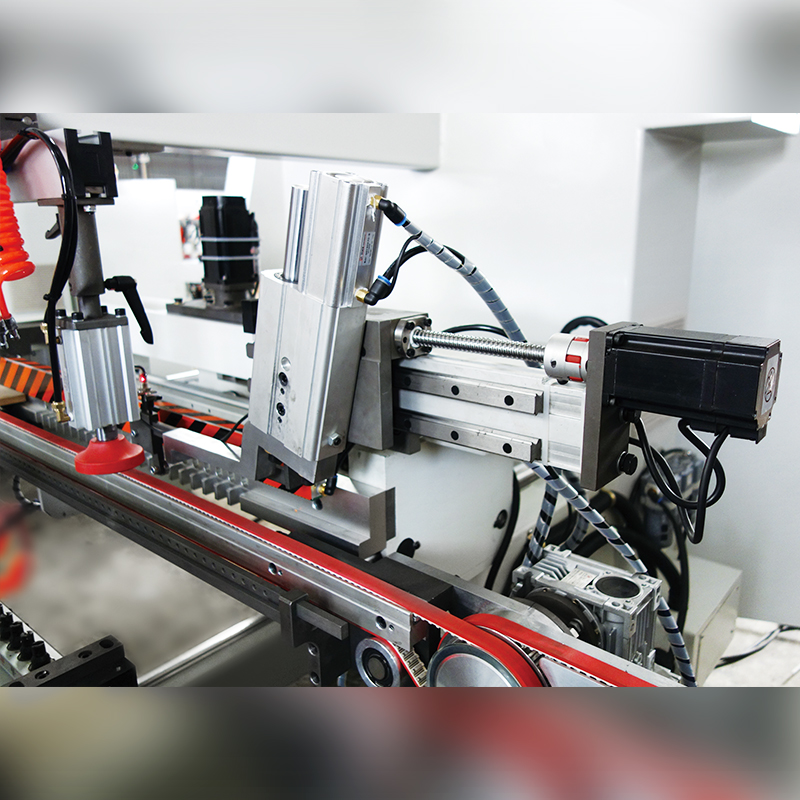

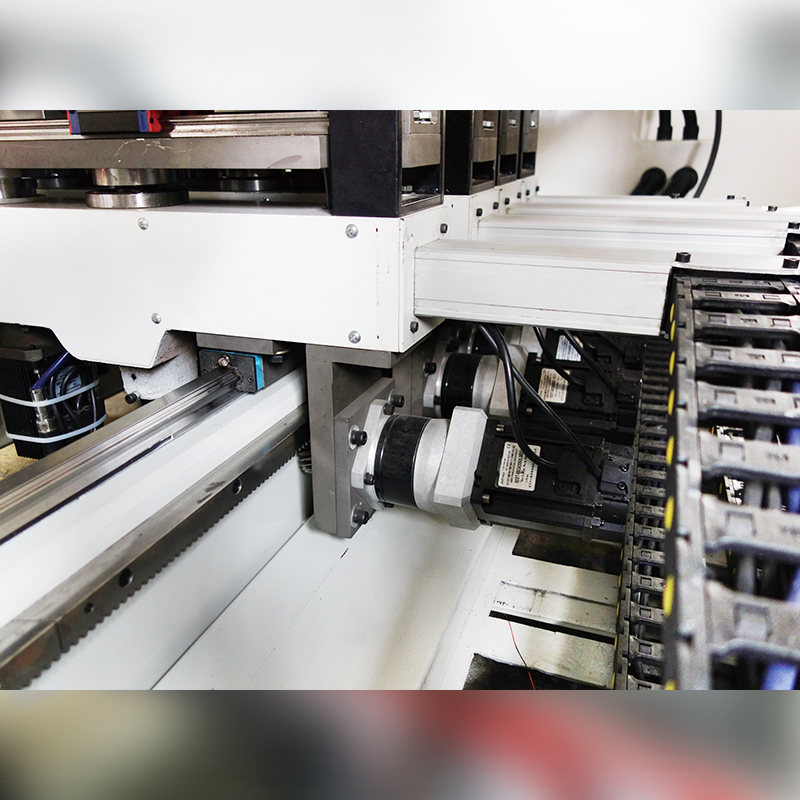

- WHOLE CNC SERVO MOTOR POSITIONING, GET RID OF COMPLEX MANKIND POSITIONING OPERATION, POSITIONING BECOME MORE ACCURATE AND FAST

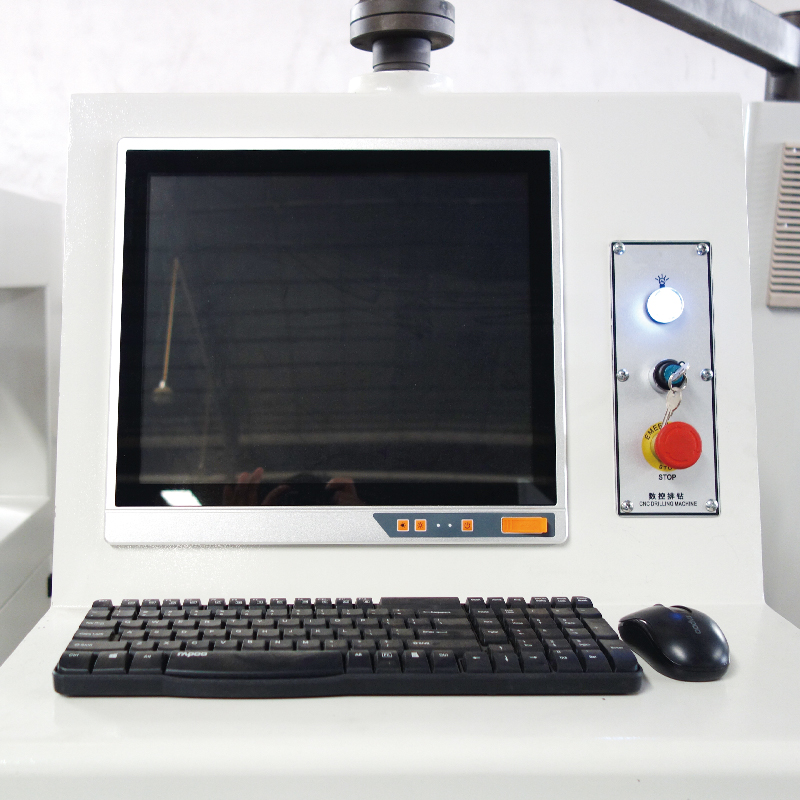

- TOUCH SCREEN OPERATION SYSTEM, MAKES CONTROL SIMPLE AND STRAIGHT, OPERATION MORE HUMANITY
- MEMORY STORE FUNCTION, OPERATOR CAN BROWSE AND REUSE HISTORY SETTING RECORDS, INCREASE EFFICIENCY
- AUTO FEEDING SYSTEM, MAKES PRODUCTION SIMPLE, FAST, ACCURATE AND SAVE LABORS

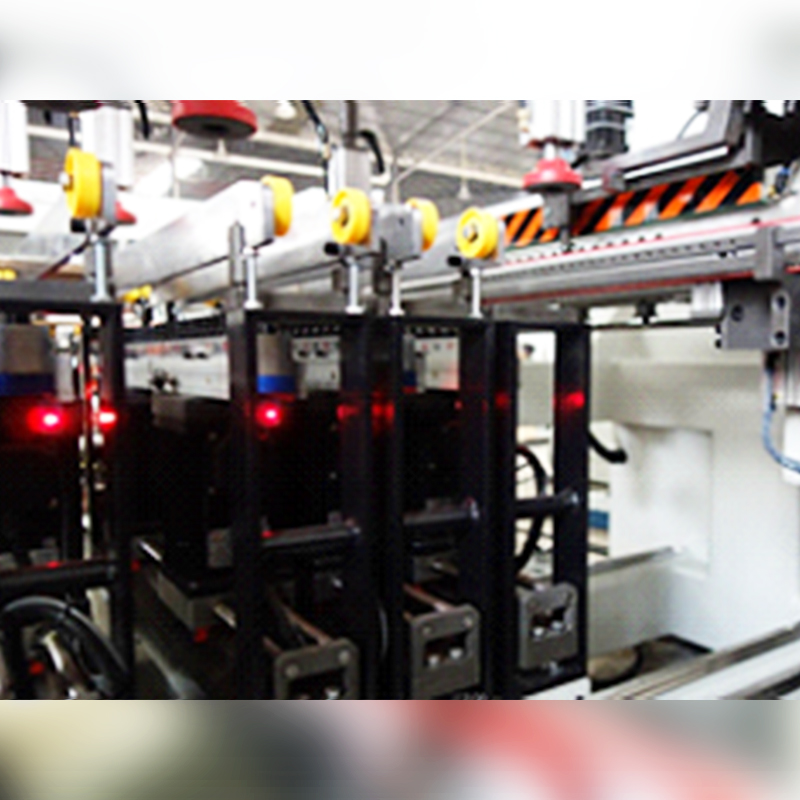

- POSITION INDICATOR, REFLECTS POSITIONS OF DRILL ROWS, WORKERS CAN OBSERVE AND ADJUST THE DRILLER POSITION
| Model | RMZ-7C | RMZ-9C |
| Max. center distance between holes | 2450mm*672mm | 2450mm*672mm |
| Min. center distance between holes | 300mm*32mm | 300mm*32mm |
| Workpiece thickness | 8-50mm | 8-50mm |
| Total quantity of spindles | 22pcs*2+11pcs*10 | 22pcs*2+11pcs*14 |
| Total quantity of drill lines | 5+2=7 | 4+2+3 |
| Max. drilling diameter | 35mm(single bit) 13mm(multi bits) |
35mm(single bit) 13mm(multi bits) |
| Max. drilling depth | 50mm | 50mm |
| Spindle speed | 2840rpm | 2840rpm |
| Processing speed | 13-16pcs/min | 13-16pcs/min |
| Total power | 19.1kw | 20.1kw |
| Net weight | 4500kg | 4500kg |
| Overall dimensions | 5000*2250*2200mm | 5000*2250*2200mm |
