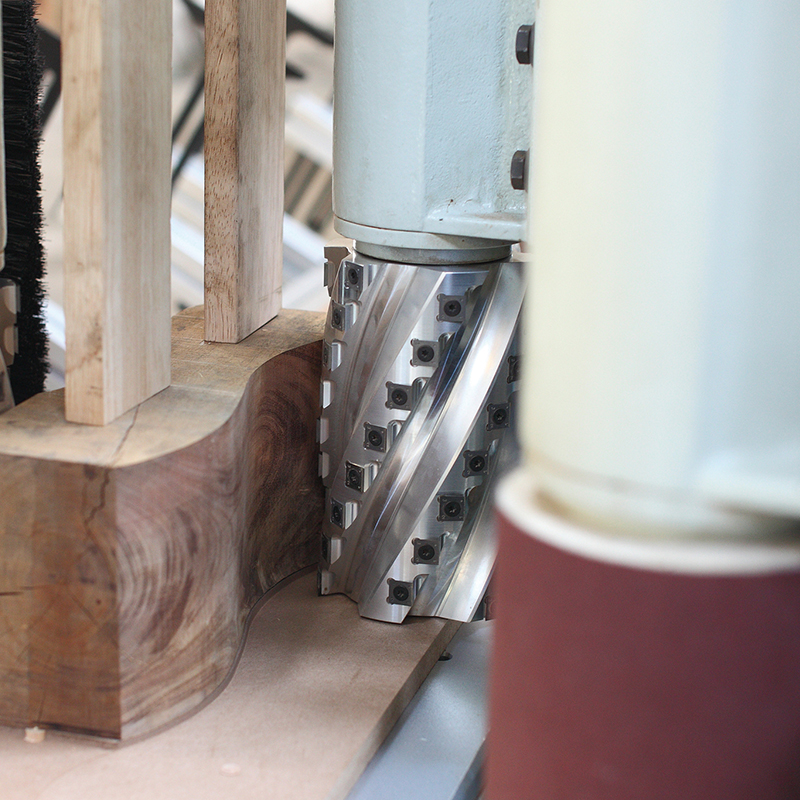

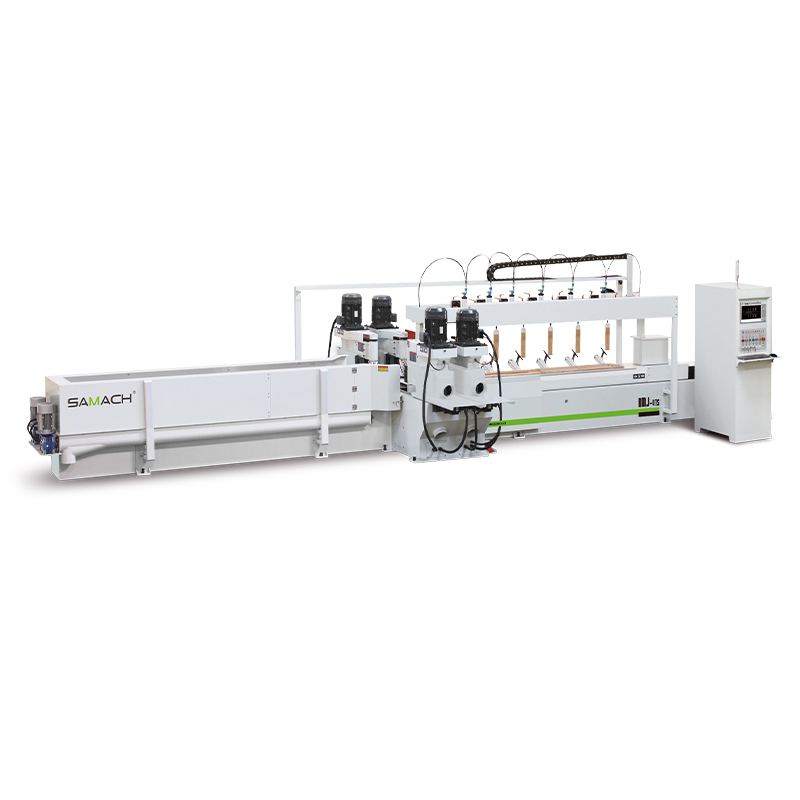

CNC Double-side Milling Machine with Four Axis

CNC Double-side Milling Machine

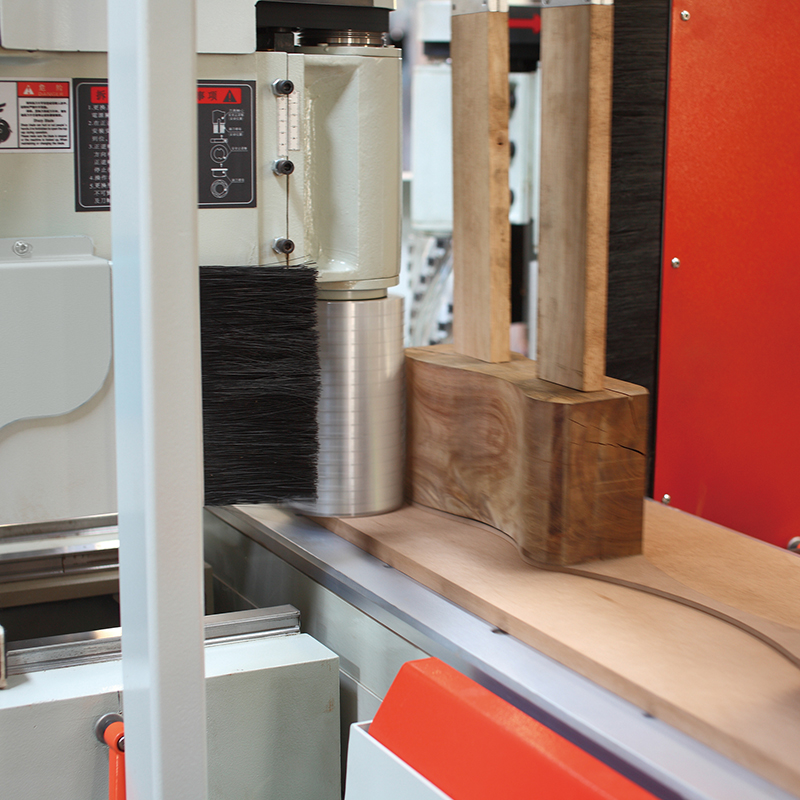

  • ONE-PIECE AND HIGH-SPEED MECHANISM DESIGN MAKES MILLING PREFECT AS REQUEST

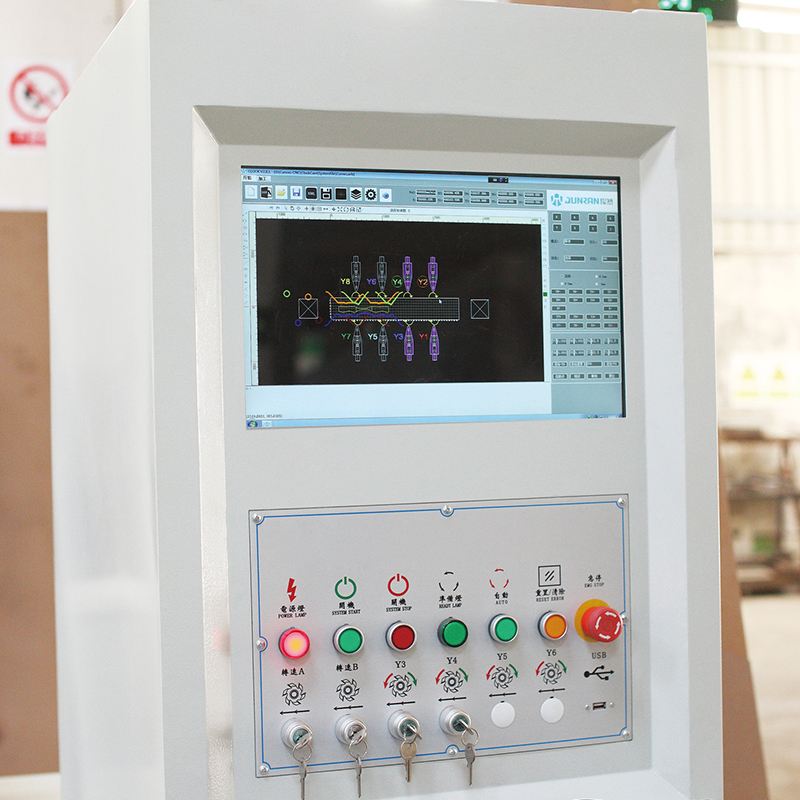

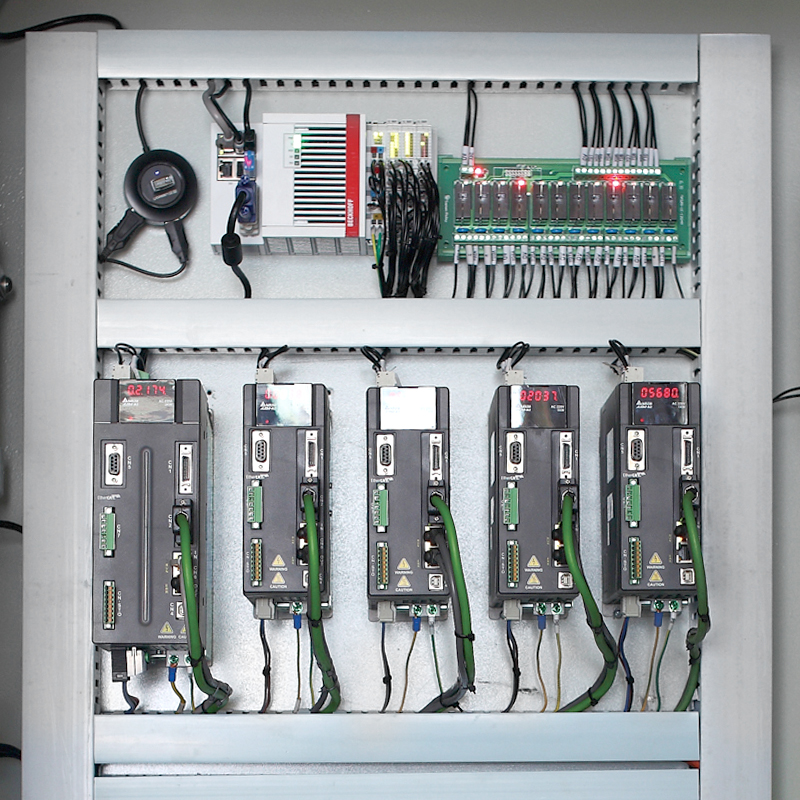

  • GERMANY BECKHOFF SYSTEM, TAIWAN DELTA DRIVE SYSTEM

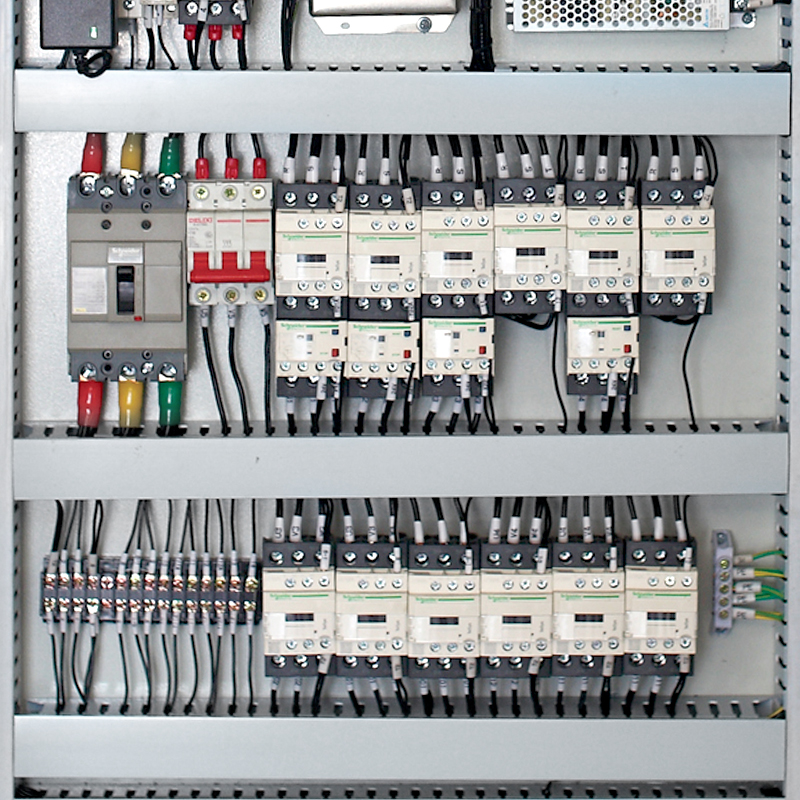

  • FRANCE SCHNEIDER ELECTRIC COMPONENTS

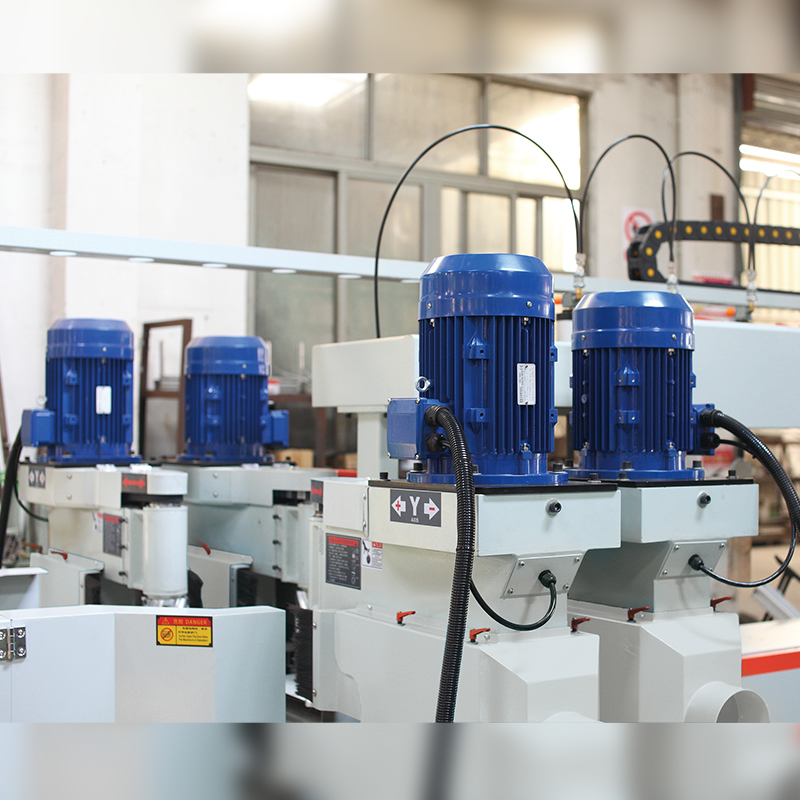

  • EUROPEAN IMPORTED TWO-SPEED MOTORS
  • MULT-DIRECTIONAL PRESSURE CYLINDER WITH FAST VALVE TO FIX THE WORKPIECES
Model RMJ-4TS
Processing length 1500/2000/2500mm
Processing width 15-400/15-600mm
Processing height 200mm
Processing speed 1-20m/min
Return speed 100m/min
Tool shaft power 7.5kw*4 /8kw(2p/4p)*4
Knife shaft speed 9000r/min-3000r/min
Spindle diameter Φ40mm
X-axis transmission power 2kw/3kw
Y-axis transmission power 1kw*4
Total power 38kw
Dimensions 6600/7600/8600*3600*2200mm
Weight 5500kg

CNC Double-side Milling Machine
