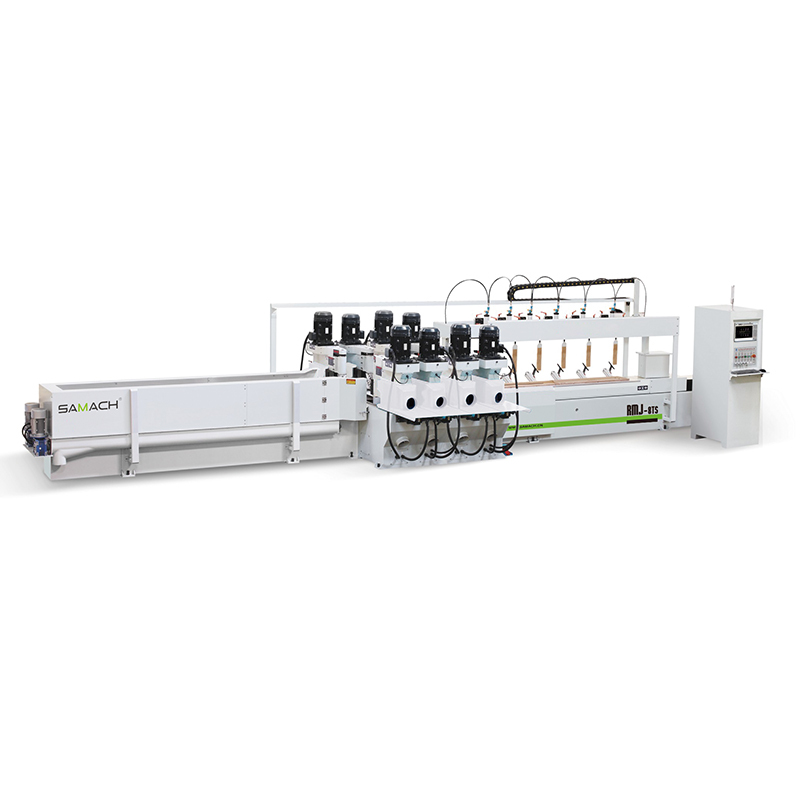

CNC Double-side Milling Machine with Eight Axis
- ONE-PIECE AND HIGH-SPEED MECHANISM DESIGN MAKES MILLING PREFECT AS REQUEST
- GERMANY BECKHOFF SYSTEM, TAIWAN DELTA DRIVE SYSTEM
- FRANCE SCHNEIDER ELECTRIC COMPONENTS
- EUROPEAN IMPORTED TWO-SPEED MOTORS
- MULT-DIRECTIONAL PRESSURE CYLINDER WITH FAST VALVE TO FIX THE WORKPIECES
| Model | RMJ-8TS |
| Processing length | 2500mm |
| Processing width | 15-400/15-600mm |
| Processing height | 200mm |
| Processing speed | 1-20m/min |
| Return speed | 100m/min |
| Tool shaft power | 7.5kw*4 /8kw(2p/4p)*4 |
| Knife shaft speed | 9000r/min-3000r/min |
| Spindle diameter | Φ40mm |
| X-axis transmission power | 2kw/3kw |
| Y-axis transmission power | 1kw*8 |
| Total power | 72kw |
| Dimensions | 9400*3600*2200mm |
| Weight | 9500kg |
