CNC Cut-off Saw
- SUITABLE FOR LARGE QUANTITY WIDER AND THICKER SOLID WOOD WORKPIECE

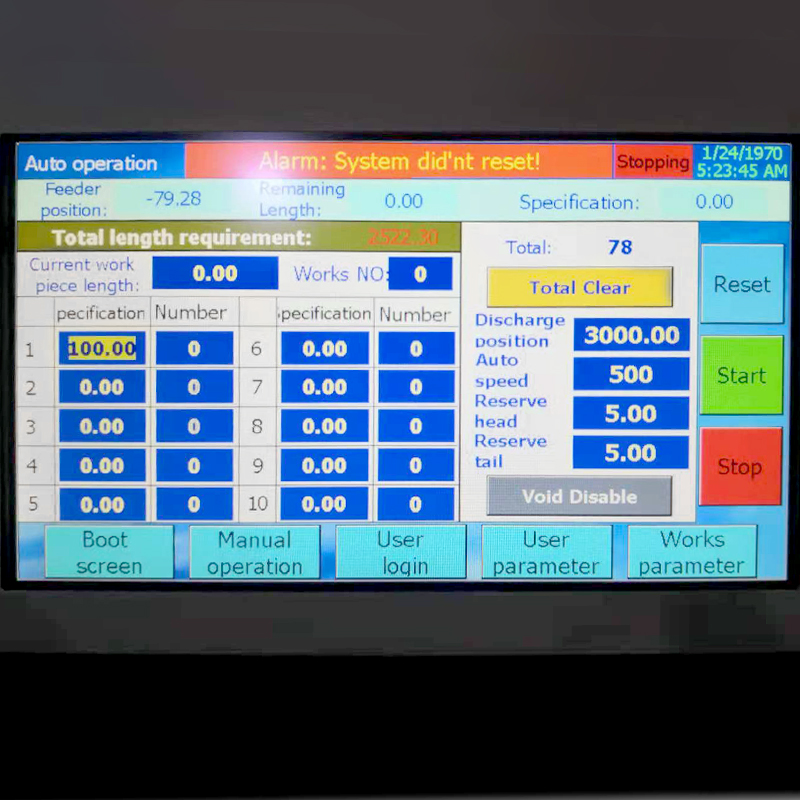

- TOUCH SCREEN OPERATION, SIMPLE AND EFFICIENT
- THE MACHINE FEED AND CUT AUTOMAIICALLY AFTER INPUT THE DATA
- FEEDING CONTROLLED BY GEAR SERVO, STABLE AND PRECISION
| Model | RMJ601 | RMJ602 |
| Cutting thickness | 120mm | 200mm |
| Cutting width | 250mm | 600mm |
| Cutting length | 4000mm | 4000mm |
| Saw blade size | Ф450mm | Ф650mm |
| Dimension of saw shaft | Ф30mm | Ф30mm |
| Saw spindle speed | 3500rpm | 1850rpm |
| Feed speed | 5-25m/min | 5-25m/min |
| Feeding servo motor | 750W | 750W |
| Saw motor | 7.5kw | 7.5kw |
| Pressure | 5-6kg/cm² | 5-6kg/cm² |
| Dust collecting port | Ф100mm*2 | Ф100mm*2 |
| Overall size | 9000*1200*1300mm | 9000*1225*1500mm |
| Sawing error | <1mm | <1mm |
| Weight | 900kg | 1200kg |
