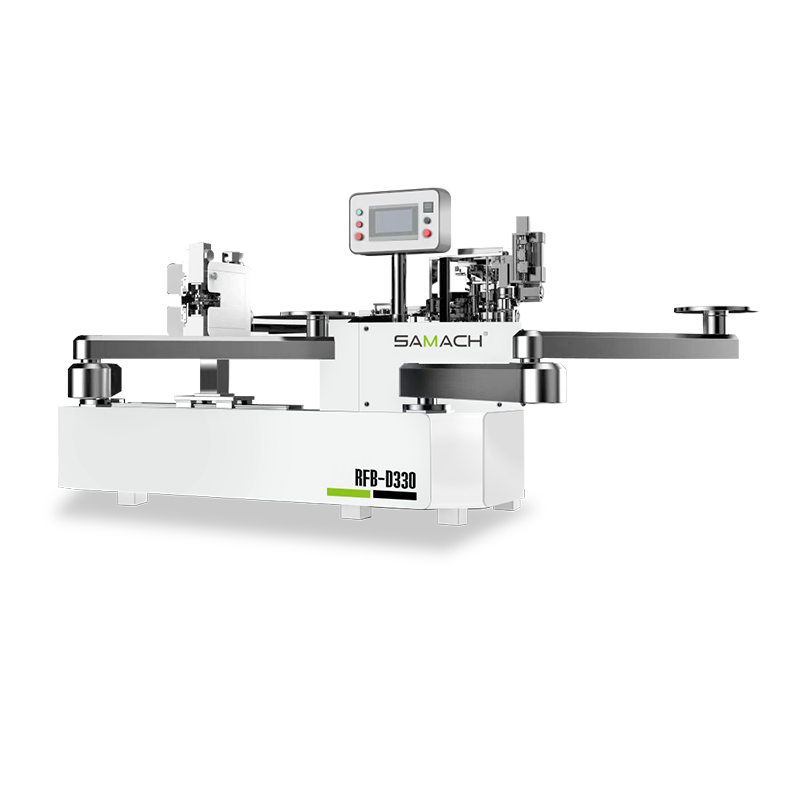

| Model | RFB-D330 |
| Panel size | Max: 1.2*2.4m, Min:200*300mm |
| Panel thickness | 9-50mm |
| PVC tape thickness | 0.6-3mm |
| Trimming angle | 0.5-2R(adjustable) with 0.75kw*2 motor |
| Feed speed | 5-8m/min stepless |
| Glue tank temperature | 80-220° |
| Glue pot | 1.5kg |
| Air pressure | 0.6-0.8Mpa |
| Total power | 4KW |
| Package size | 2100*1500*1700mm |
| Weight | 650kg |
