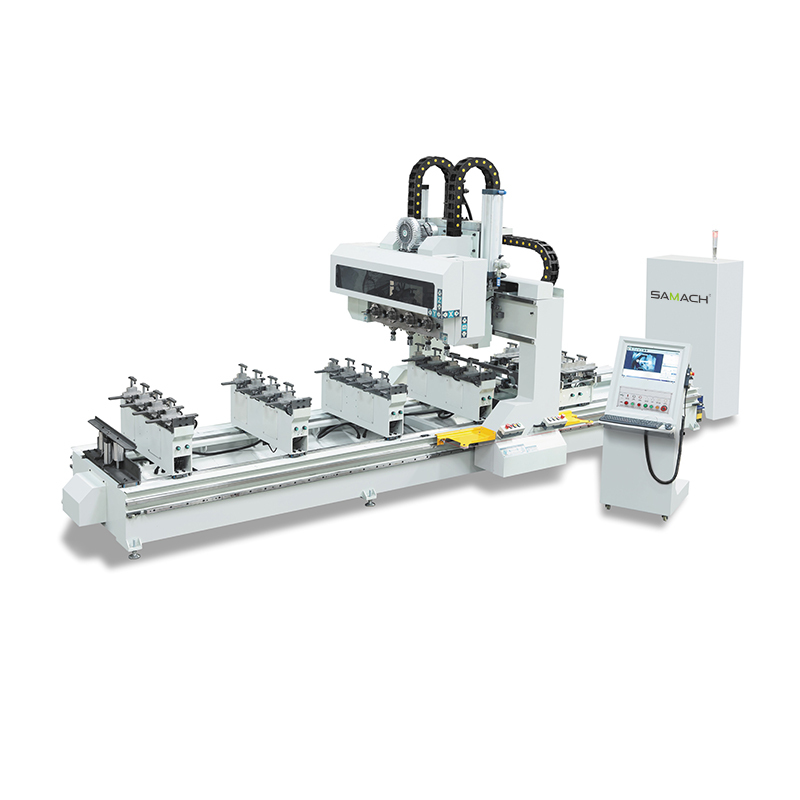

  • THE GANTRY MOVEABLE STRUCTURE OF CNC COMPOSITE MACHINING CENTER IS STABLE AND HIGH PRECISION

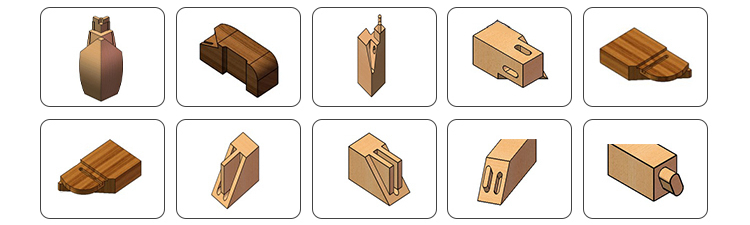

  • IT CAN PROVIDE MULTI-TOOLS COMBINATION TO FORM DIFFERENT TYPES OF MODULES TO REALIZE VARIOUS MORIISE AND TENON

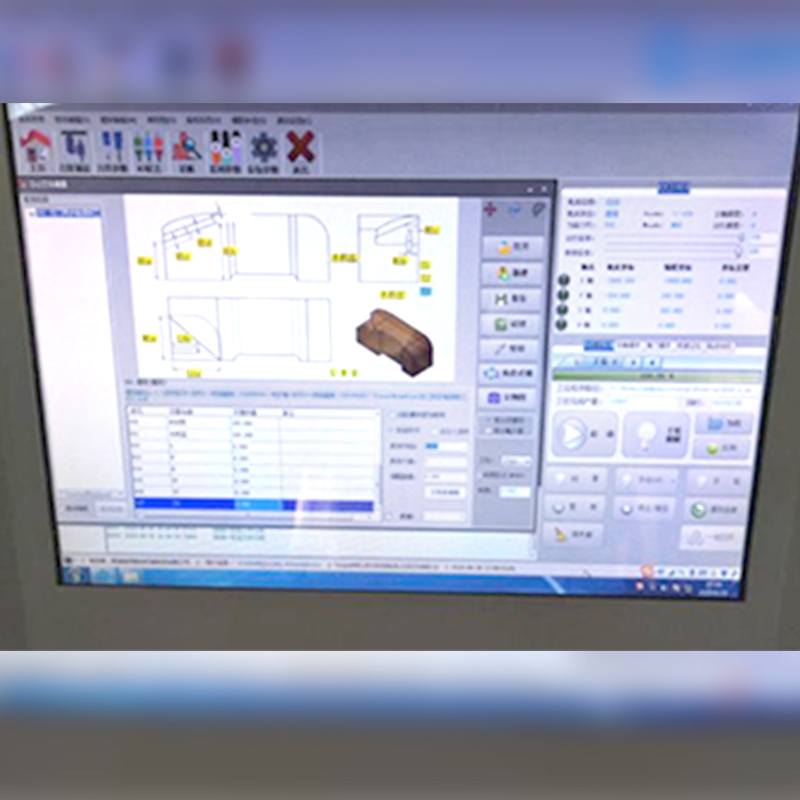

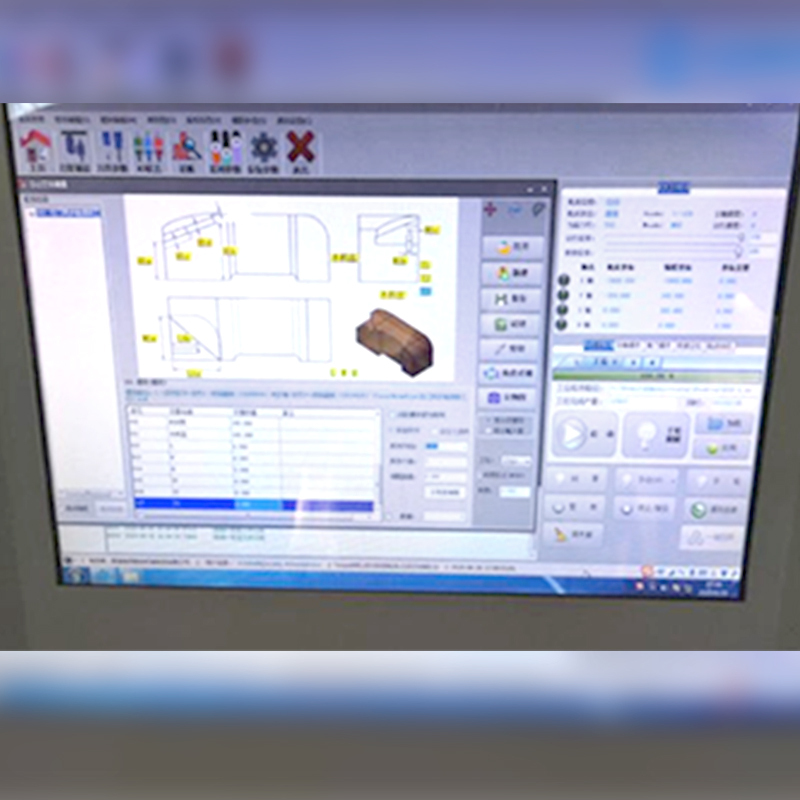

  • MODULAR PROGRAMMING PROVIDES THE MODULE PROCESSING TRACK PROGRAMMING FUNCTION FORMED BY SIMPLE AND INTUITIVE ELEMENT COMBINATION, AND PRODUCT EDITING CAN BE COMPLETED ONLY BY INPUTTING SIZE DATA

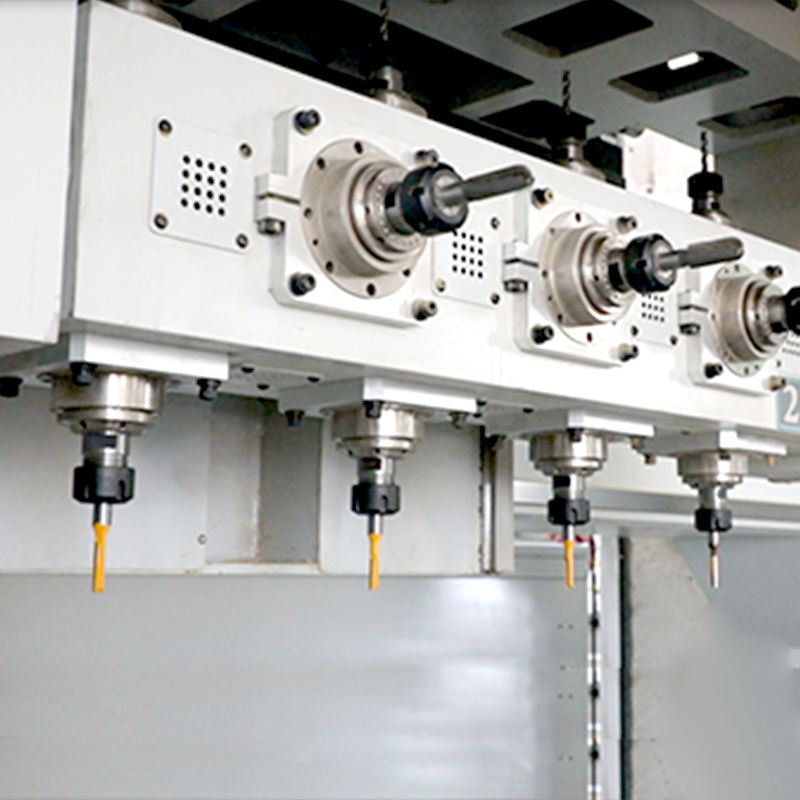

  • HIGH PRECISION IMPORTED RV REDUCER TO CONTROL THE TOOLS
Model RMJ-5013
X axis effective work stroke 5000mm
Y axis effective work stroke 140mm
Z axis effective work stroke 200mm
Working area Single area 5000mm, double area 2500mm*2
Work speed 1-15m/min
Return speed 50m/min
Distance between tools 260mm
Spindle speed 12000r/min-18000r/min(Frequency)
Motor power 43kw
Size 6500*2200*2600mm
Weight 5500kg
