CNC Bore and Dowel Machine
- THIS IS MADE FOR WOODEN DOWEL FOR AMERICAN CABINET
- MADE FOR THE AUTOMATIC BOARD SIDE PROCESSING MACHINING CENTER INTEGRATED SIDE DRILLING, MILLING SLOT, DOWELING (AUXILIARY AUTOMATIC GLUE)

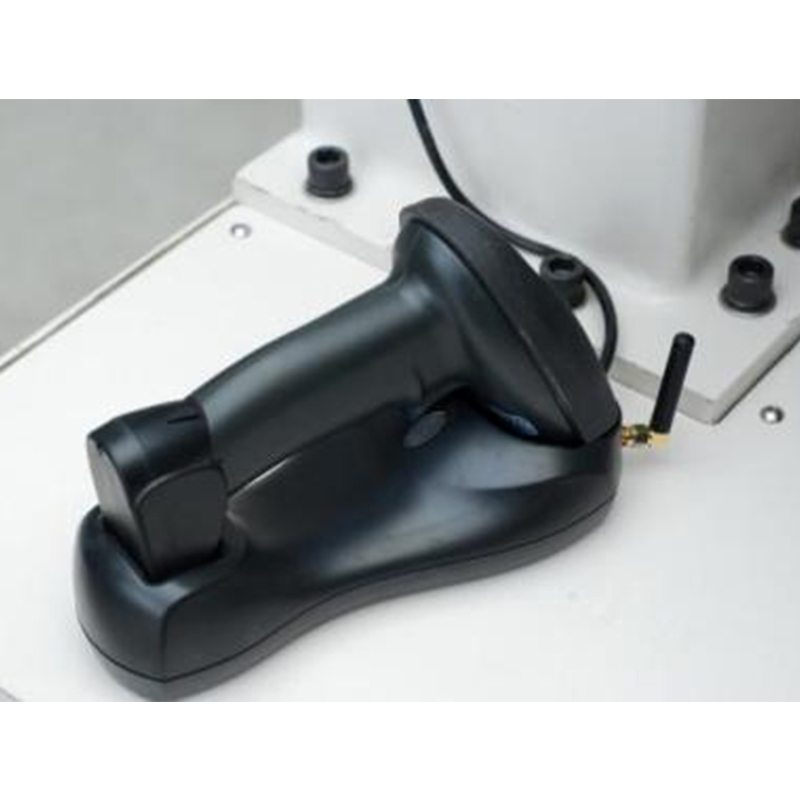

- IT SUPPORTS THE PROCESSING OF BAR CODE SCANNING IMPORT AND MANUAL IMPORT
- FOR STEEL AND PLASTIC DOWELS, S2 IS OPTIONAL

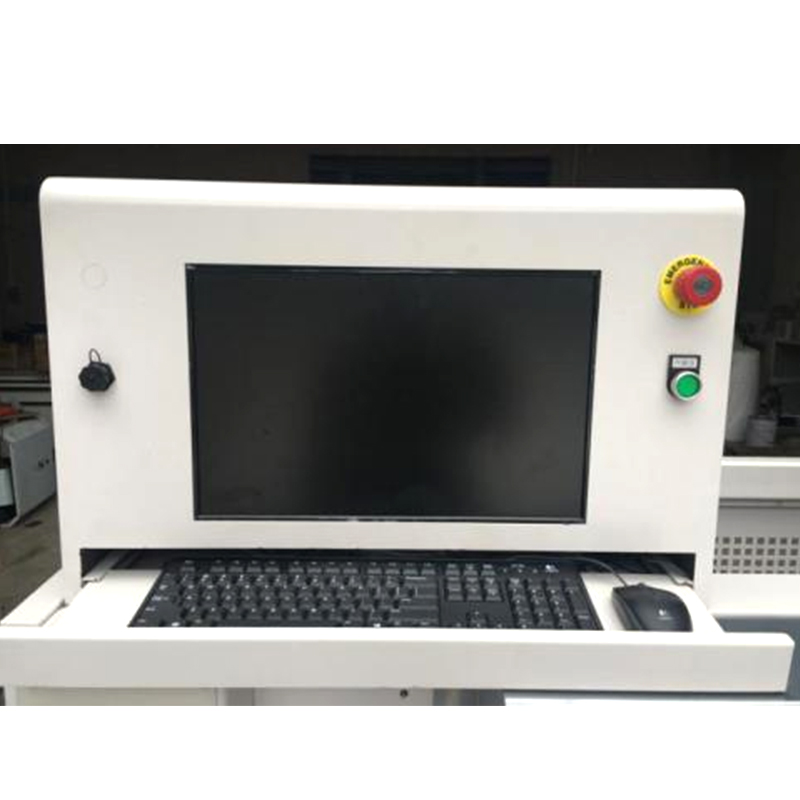

- EASY TO EDIT THE LOADED PROCESSING DOCUMENTS BY USING PLAIN TEXT NUMERICAL EDITING

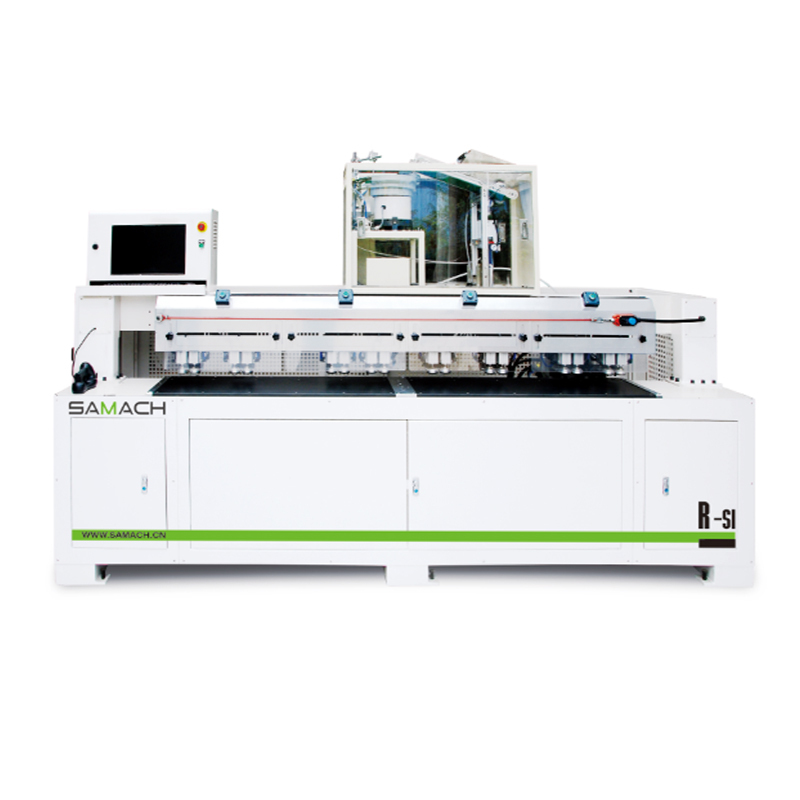

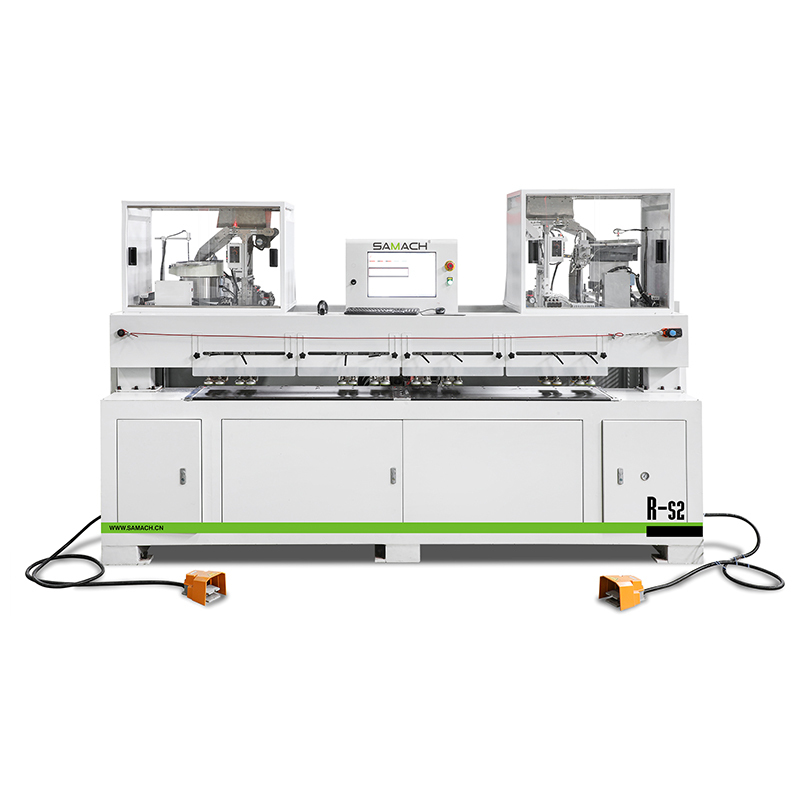

| Model | R-S1 | R-S2 |

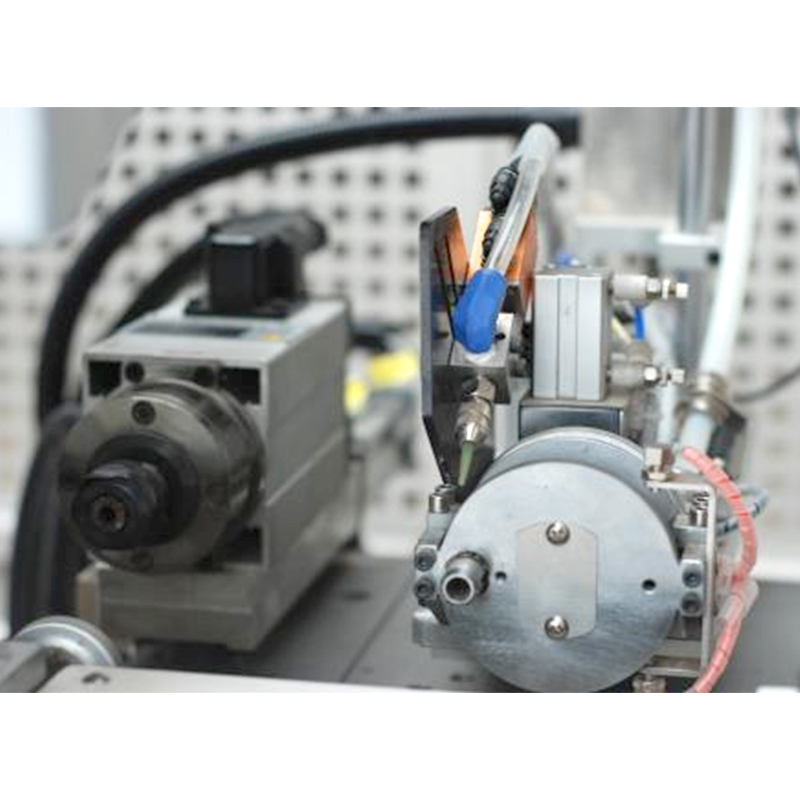

| Spindle power | 1.5kw | 1.5kw*2 |
| Spindle speed | 0-24000rpm, adjusted by VFD knob control | 0-18000rpm, adjusted by VFD knob control |
| Speeds & stroke for X | 40m/min & 2440mm | 40m/min & 2420 mm |
| Speeds & stroke for Y | 10m/min & 80mm | 10m/min & 30 mm |
| Speeds & stroke for Z | 10m/min & 50mm | 10m/min & 30 mm |
| Capacity of bore and insertion | 60 insert/min | 80 insert/min |
| Max drilling depth | 50mm | 50mm |
| Max dowel insertion depth | 40mm | 40mm |
| Packing size | 3462*1133*2015mm | 3462*1133*2015mm |
| Weight | 1615kg | 1780kg |
