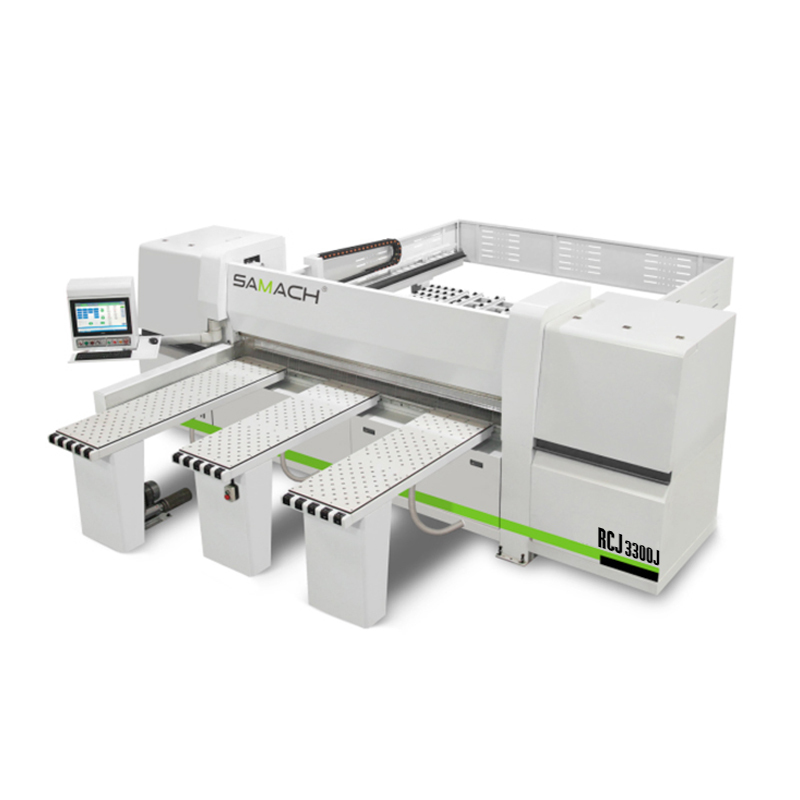

CNC Beam Saw
$0.00 USD
Shipping calculated at checkout.
Quantity
Free worldwide shipping
Free returns
Carbon neutral
Secure payments

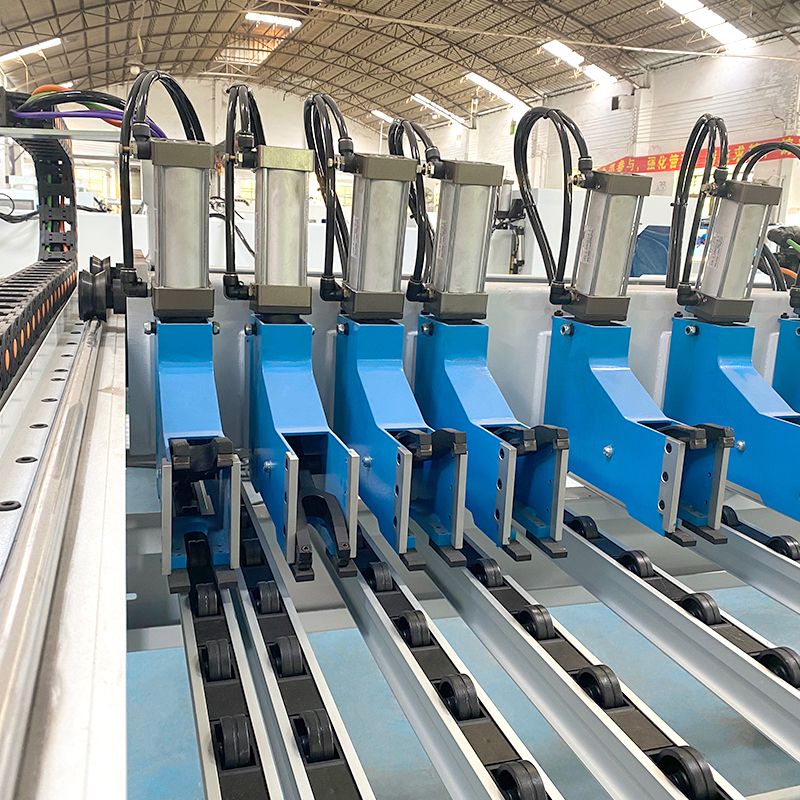

- SERVO MOTORS FOR SAW CARRIER AND UPPER SIDE PRESSURE DEVICE

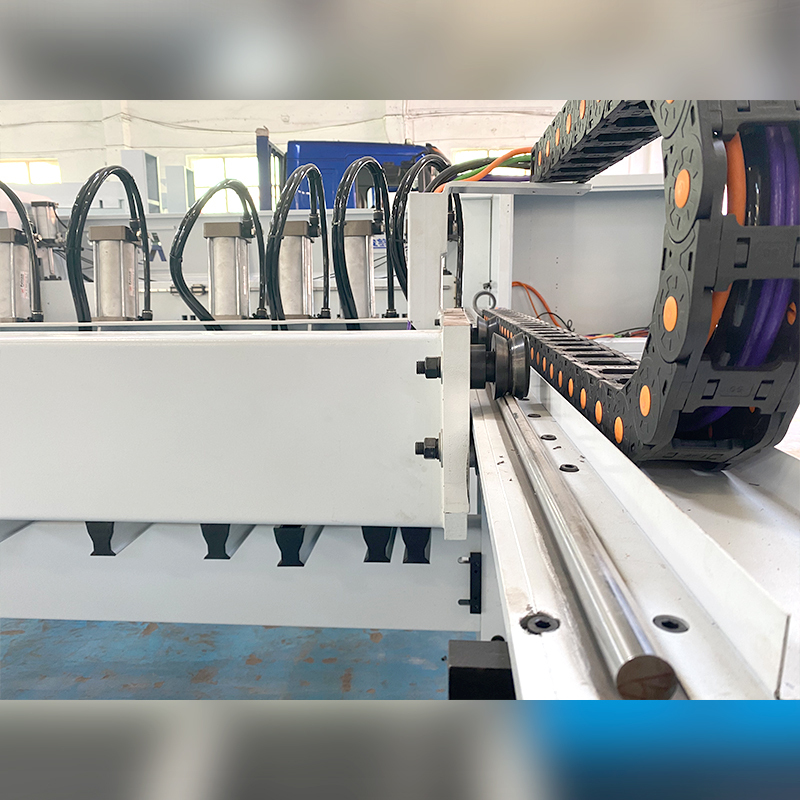

- HIGH PRECISION: THE MACHINE BODY SAW CARRIER IS ADOPT GERMAN TECHNOLOGY, THE PERFECT COMBINATION OF RACK AND PINION TRANSMISSION, THE SAWING ACCURACY IS WITHIN ±0.15
- THE AUTOMATIC POSITIONING AND SAWING CAN BE REALIZED FOR DIFFERENT WORKPIECE WIDTH
- DELTA PLC CONTROL SYSTEM: IT CAN EDIT AND MANAGE THE SAWING PLAN, AND CONNECT WITH A VARIETY OF SAWING SOFTWARE, BARCODE MANAGEMENT SOFTWARE, AND AUTOMATION SYSTEM

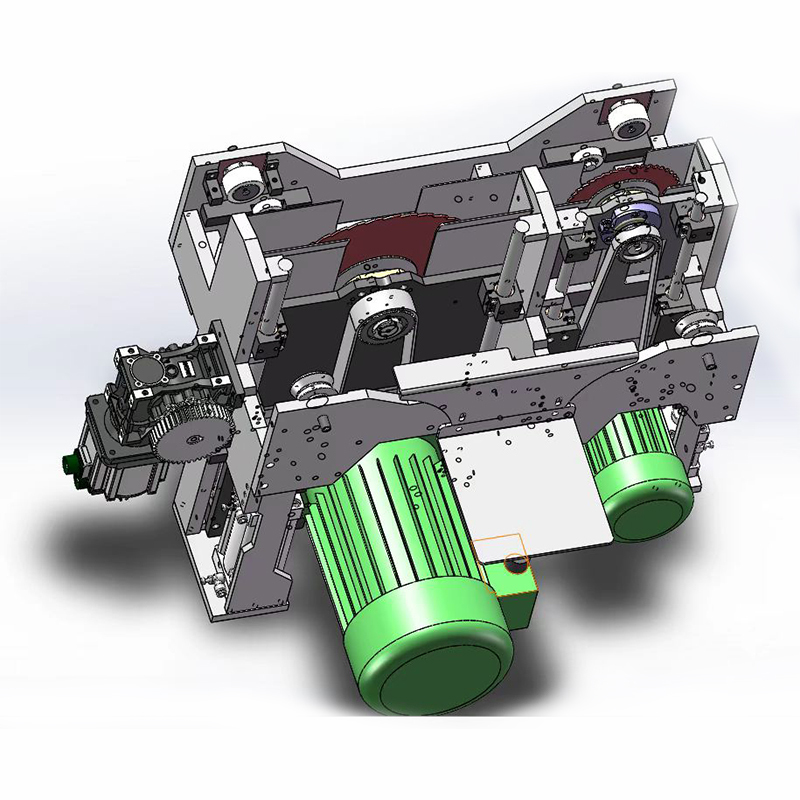

- INDEPENDENT LIFTING OF MAIN AND GROOVE SAWS: THE MAINE SAW ADOPTS IGARASHI MOTOR 15KW, AND THE GROOVE SAW 2.2KW
| Model | RCJ2800J | RCJ3300J |
| Cutting width | 2750mm | 3250mm |
| Cutting thickness | 120mm | 120mm |
| Main saw blade diameter | Ф400mm(Ф450mmoptional) | Ф400mm(Ф450mmoptional) |
| Main saw shaft diameter | Ф75mm | Ф75mm |
| Main saw shaft speed | 4800rpm | 4800rpm |
| Groove saw blade diameter | Ф200mm | Ф200mm |
| Groove saw shaft diameter | Ф50mm | Ф50mm |
| Groove saw shaft speed | 6900rpm | 6900rpm |
| Saw carrier forward speed | 100m/min | 100m/min |
| Saw carrier backward speed | 120m/min | 120m/min |
| Main saw motor | 15kw(18.5kw optional) | 15kw(18.5kw optional) |
| Groove saw motor | 2.2kw | 2.2kw |
| Saw carrier drive motor | 2.0kw(AC Servo) | 2.0kw(AC Servo) |
| Automatic feeding motor | 2.0kw(AC Servo） | 2.0kw(AC Servo） |
| High pressure blower motor | 3.0kw | 3.0kw |
| Total power | 26.5kw | 26.5kw |
| Automatic feeding speed | 100m/min | 100m/min |
| Air pressure | 5-7kg/cm² | 5-7kg/cm² |
| The height of the workbench from the ground | 950mm | 950mm |
| Machine size (L*W*H) | 6500*5100*1850mm | 7000*5600*1800mm |
