Rear Loading CNC Beam Saw

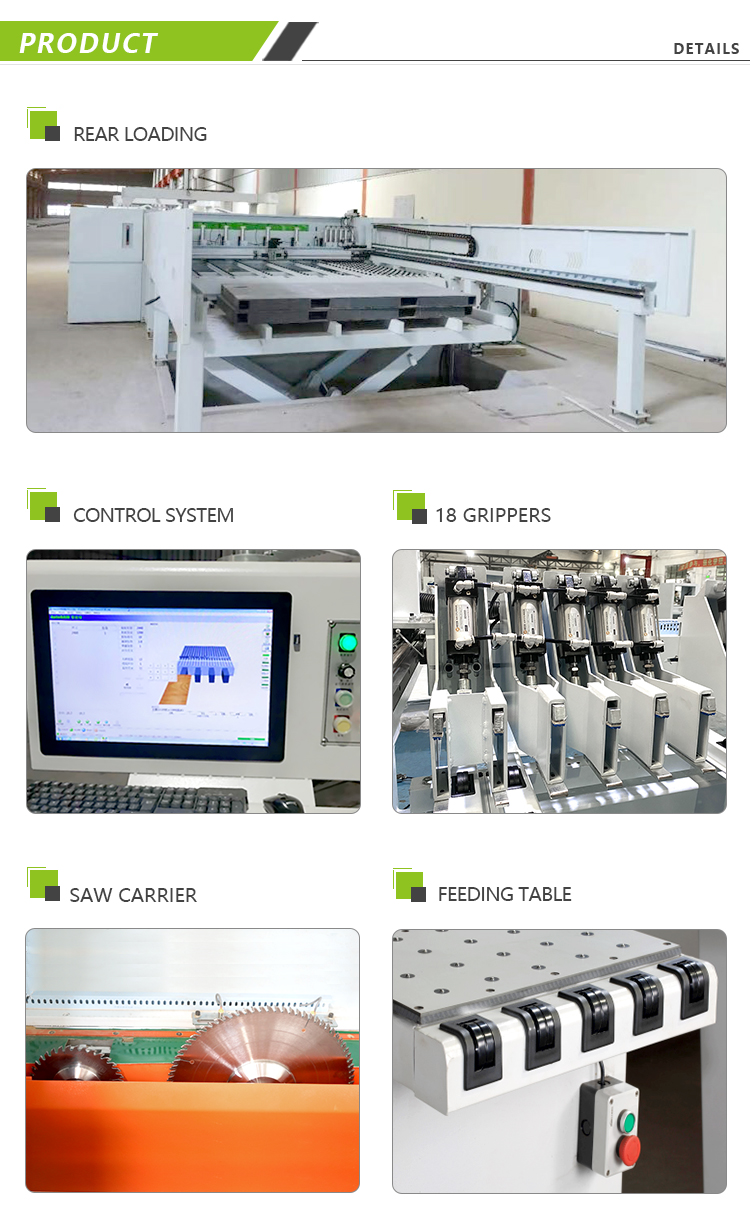

  • AUTOMATIC LOADING FOR LARGE QUANTITIES TO SAVE LABORS
  • HIGH PRECISION: THE MACHINE BODY SAW CARRIER IS ADOPT GERMAN TECHNOLOGY, THE PERFECT COMBINATION OF RACK AND PINION TRANSMISSION AND REDUCER CONTROL, THE SAWING ACCURACY IS WITHIN ±0.15
  • THE AUTOMATIC POSITIONING AND SAWING CAN BE REALIZED FOR DIFFERENT WORKPIECE WIDTH
  • PLC CONTROL SYSTEM: IT CAN EDIT AND MANAGE THE SAWING PLAN, AND CONNECT WITH A VARIETY OF SAWING SOFTWARE, BARCODE MANAGEMENT SOFTWARE, AND AUTOMATION SYSTEM
  • INDEPENDENT LIFTING OF MAIN AND GROOVE SAWS: THE MAINE SAW ADOPTS IGARASHI MOTOR 15KW, AND THE GROOVE SAW 2.2KW
Model RCJ4500E-R
Work length 4450mm
Work thickness 100mm
Main saw blade diameter Ф355mm
Main saw shaft diameter Ф80mm
Main saw shaft speed 4800rpm
Groove saw blade diameter Ф180mm
Groove saw shaft diameter Ф55mm
Groove saw shaft speed 6900rpm
Saw base forward speed 100m/min
Saw base retreat speed 150m/min
Main saw motor 15kw
Groove saw motor 2.2kw
Saw base drive motor 1.5kw
Automatic feeding motor 2.0kw
High pressure blower motor 3kw*2
Total power 27kw
Automatic feeding speed 100m/min
Gripper quantity 15
Air pressure 5-7kg/cm²
Height of worktable away ground 950mm
Machine size 10100*6850*2600mm
