CNC Beam Saw

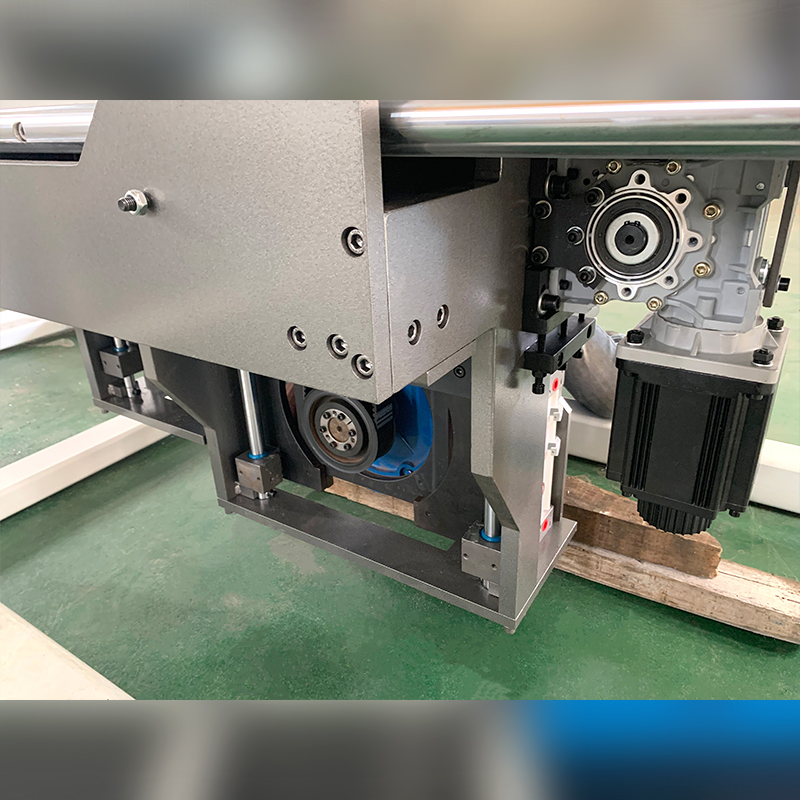

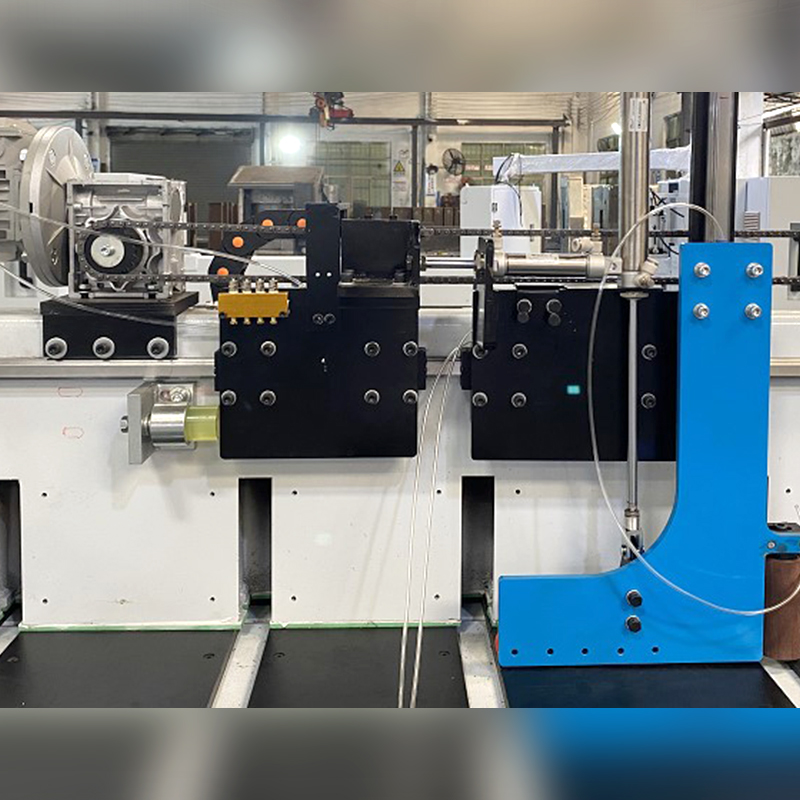

  • SERVO MOTORS FOR SAW CARRIER AND UPPER SIDE PRESSURE DEVICE

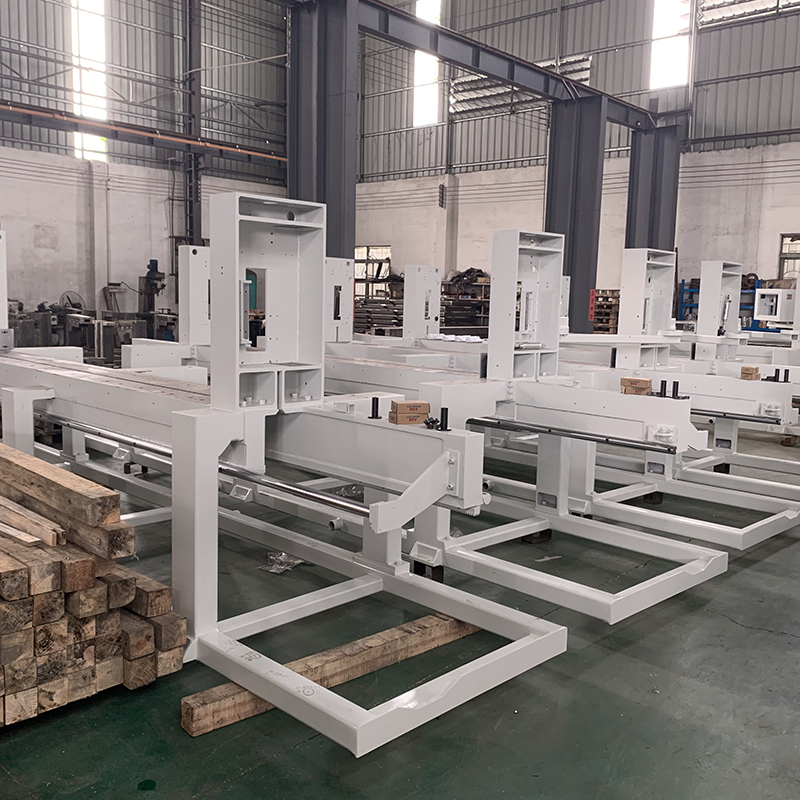

  • HIGH PRECISION: THE MACHINE BODY SAW CARRIER IS ADOPT GERMAN TECHNOLOGY, THE PERFECT COMBINATION OF RACK AND PINION TRANSMISSION, THE SAWING ACCURACY IS WITHIN ±0.15
  • THE AUTOMATIC POSITIONING AND SAWING CAN BE REALIZED FOR DIFFERENT WORKPIECE WIDTH
  • DELTA PLC CONTROL SYSTEM: IT CAN EDIT AND MANAGE THE SAWING PLAN, AND CONNECT WITH A VARIETY OF SAWING SOFTWARE, BARCODE MANAGEMENT SOFTWARE, AND AUTOMATION SYSTEM

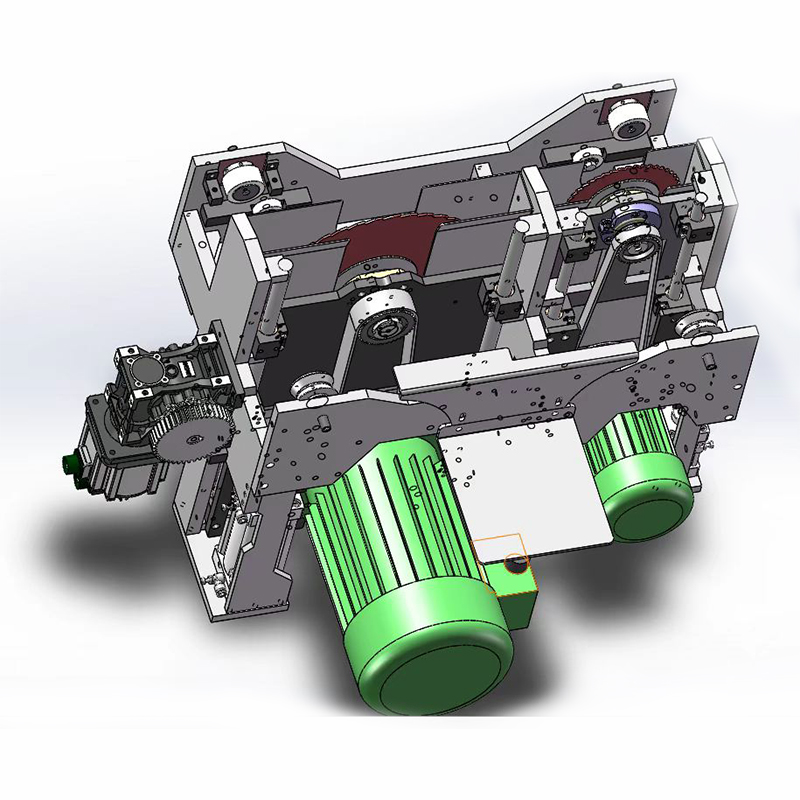

  • INDEPENDENT LIFTING OF MAIN AND GROOVE SAWS: THE MAINE SAW ADOPTS IGARASHI MOTOR 15KW, AND THE GROOVE SAW 2.2KW
Model RCJ2800J RCJ3300J
Cutting width 2750mm 3250mm
Cutting thickness 120mm 120mm
Main saw blade diameter Ф400mm(Ф450mmoptional) Ф400mm(Ф450mmoptional)
Main saw shaft diameter Ф75mm Ф75mm
Main saw shaft speed 4800rpm 4800rpm
Groove saw blade diameter Ф200mm Ф200mm
Groove saw shaft diameter Ф50mm Ф50mm
Groove saw shaft speed 6900rpm 6900rpm
Saw carrier forward speed 100m/min 100m/min
Saw carrier backward speed 120m/min 120m/min
Main saw motor 15kw(18.5kw optional) 15kw(18.5kw optional)
Groove saw motor 2.2kw 2.2kw
Saw carrier drive motor 2.0kw(AC Servo) 2.0kw(AC Servo)
Automatic feeding motor 2.0kw(AC Servo) 2.0kw(AC Servo)
High pressure blower motor 3.0kw 3.0kw
Total power 26.5kw 26.5kw
Automatic feeding speed 100m/min 100m/min
Air pressure 5-7kg/cm² 5-7kg/cm²
The height of the workbench from the ground 950mm 950mm
Machine size (L*W*H) 6500*5100*1850mm 7000*5600*1800mm
