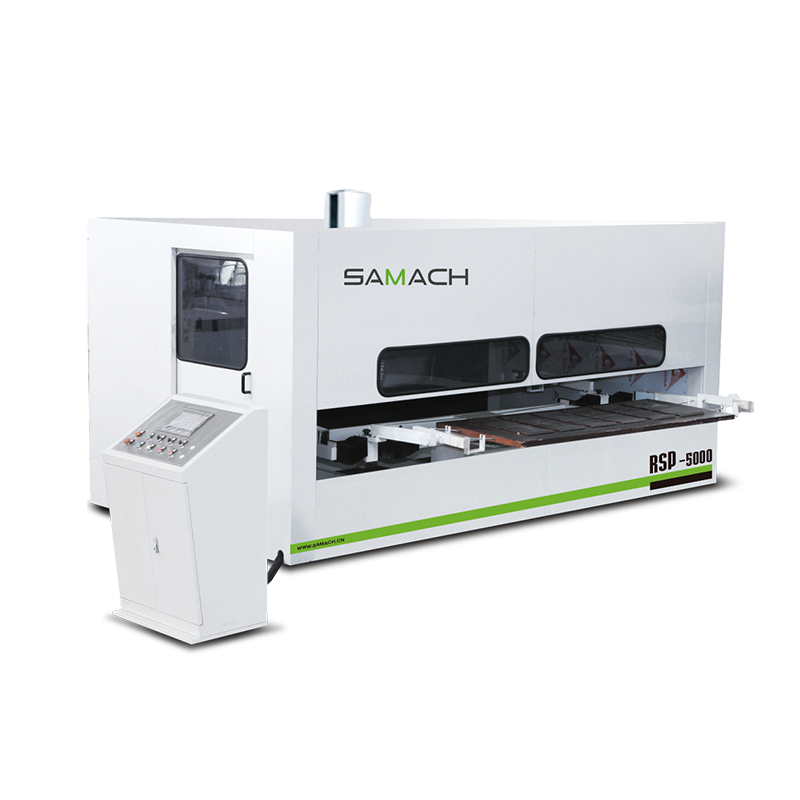

CNC Automatic Spraying Machine (Doors)
CNC Automatic Spraying Machine (Doors)
CNC Automatic Spraying Machine (Doors)
CNC Automatic Spraying Machine (Doors)
CNC Automatic Spraying Machine (Doors)
CNC Automatic Spraying Machine (Doors)
CNC Automatic Spraying Machine (Doors)
CNC Automatic Spraying Machine (Doors)
CNC Automatic Spraying Machine (Doors)
CNC Automatic Spraying Machine (Doors)
CNC Automatic Spraying Machine (Doors)
CNC Automatic Spraying Machine (Doors)
CNC Automatic Spraying Machine (Doors)
CNC Automatic Spraying Machine (Doors)
CNC Automatic Spraying Machine (Doors)
CNC Automatic Spraying Machine (Doors)
CNC Automatic Spraying Machine (Doors)
CNC Automatic Spraying Machine (Doors)
CNC Automatic Spraying Machine (Doors)
CNC Automatic Spraying Machine (Doors)
CNC Automatic Spraying Machine (Doors)
1/7

CNC Automatic Spraying Machine (Doors)

CNC Automatic Spraying Machine (Doors)

  • THE PNEUMATIC ROTARY DOUBLE‐POSITIONING FEEDING AND AUTOMATIC TURNOVER MECHANISM ENABLES THE MACHINE TO PAINT THE DOOR’S FIVE SIDES ONCE TIME WHICH SAVES WORKING PROCEDURES, IMPROVE EFFICIENCY AND ENSURE THE PAINTING EFFECT
  • ONLY NEED TWO WORKERS TO FINISH THE WHOLE PROCESS. THE CAPACITY IS 90‐120M 3 PER HOUR

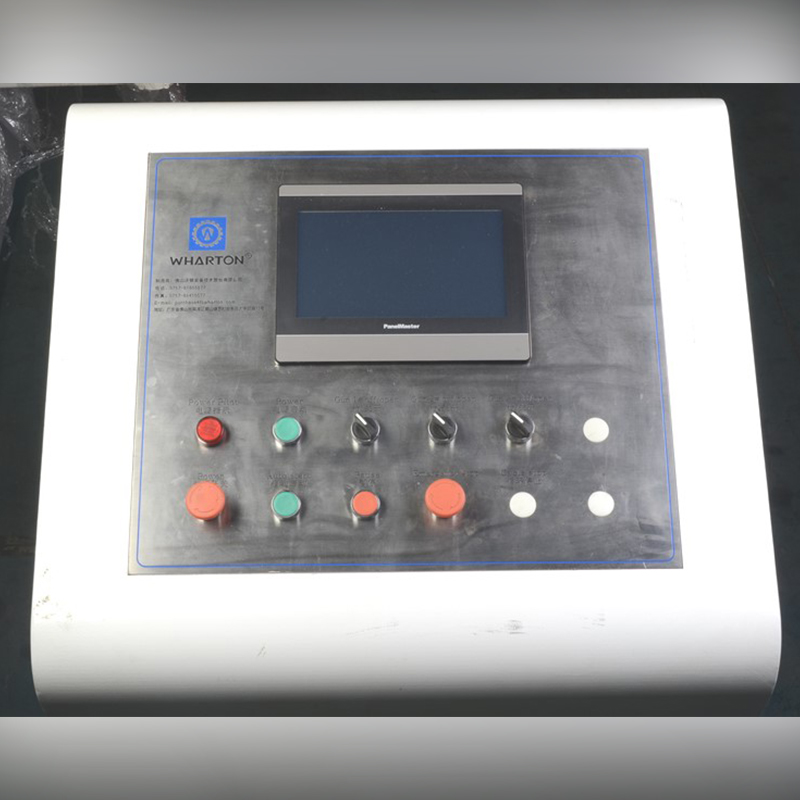

  • ADOPT IMPORTED NUMERICAL CONTROL SYSTEM AND SELF‐DEVELOPMENT SOFTWARE, REALIZING THE DIALOGUE WINDOW OF THE OPERATOR AND THE COMPUTER. BOTH OF THEM ARE EASY TO LEARN, CONTROLLING THE SPRAY GUN’S MOVING ROUTE THROUGH THE COMPUTER TO IMITATE MANUAL PAINTING, WHICH ENSURES SMOOTH PAINTED SURFACE AND REACHES THE CORNERSBEING PAINTED
  • THE MACHINE IS EASY TO OPERATE AND NOT RELY ON PAINTING TECHNIQUE. IT SHORTENS THE PRODUCTION CYCLE, REDUCES PAINT COST AND LABOR COST
Model  RSP-5000
Working spray gun 2 support
Gun diameter 1.0-1.4mm
Coating thickness 0.2-0.8mm
Paint consumption 80-200g/m²
Total power 3.5kw
Air pressure 0.6MPa
Air flow 300L/mm
Power supply 380V 50Hz
Dimensions 4200*2500*2400mm

CNC Automatic Spraying Machine (Doors)
