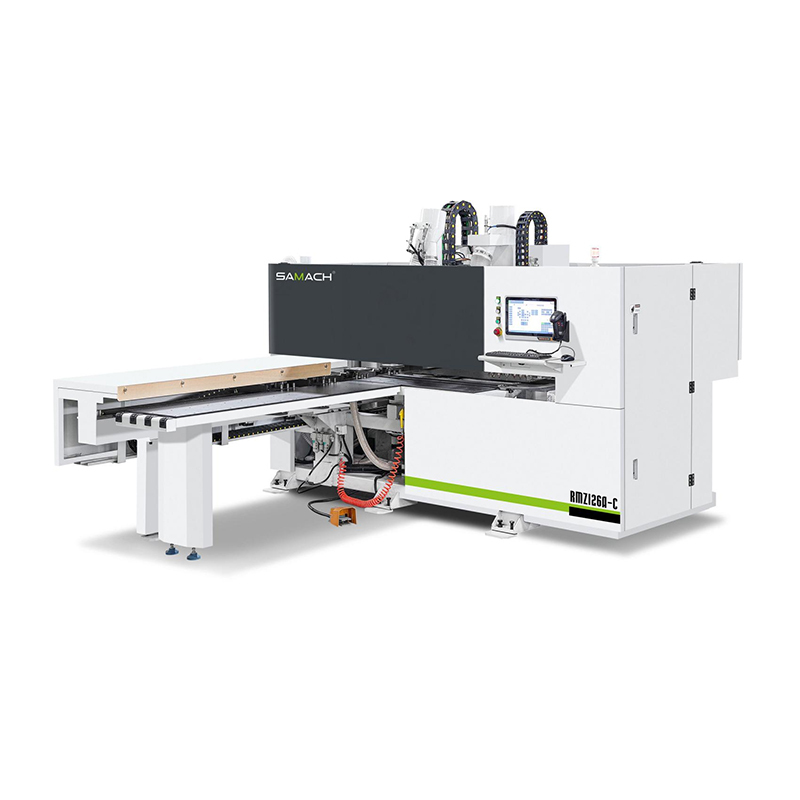

CNC 6 Sides Drilling Machine with 4 ATC

  • 6.0KW HQD SPINDLE + 4 ATC

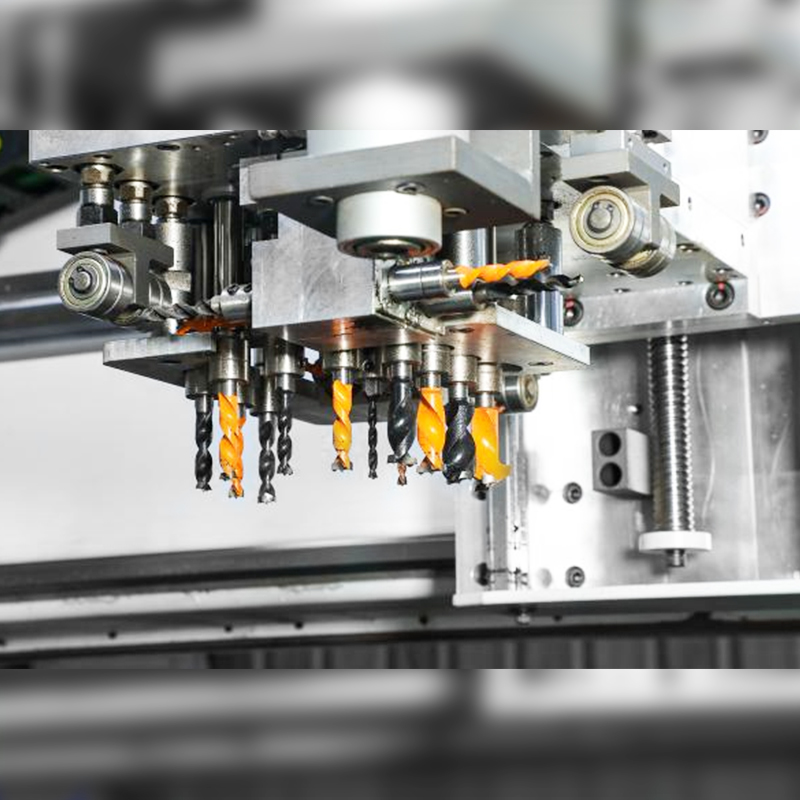

  • TOP DRILLING BLOCKS VER. 12 PLUS HOR. X:2 + Y:2
  • 1 BOTTOM DRILLING BLOCK WITH VER. 10 + 3.5KW SPINDLE
  • TOUCH OFF DEVICE TO SET THE SPINDLE ORIGIN POINT
  • ADAPTS DXF MPR XML COMMON FURNITURE FORMAT
Model RMZ-126A-C
Efficiency 80-100pcs per hour
Panel length 200-2500mm
Panel width 50-1200mm
Panel thickness 9-40mm
X/Y/Z Max.Speed 120/80/30m/min
High pressure blower 2.2kw
Spindle power 6kw
Speed of spindle 18000rpm
Top vertical drill 12pcs
Top horizontal drill X: 2+Y: 2
Bottom vertical drill 10 pcs
Total power 23kw
Overall dimensions 4650*3000*2150mm

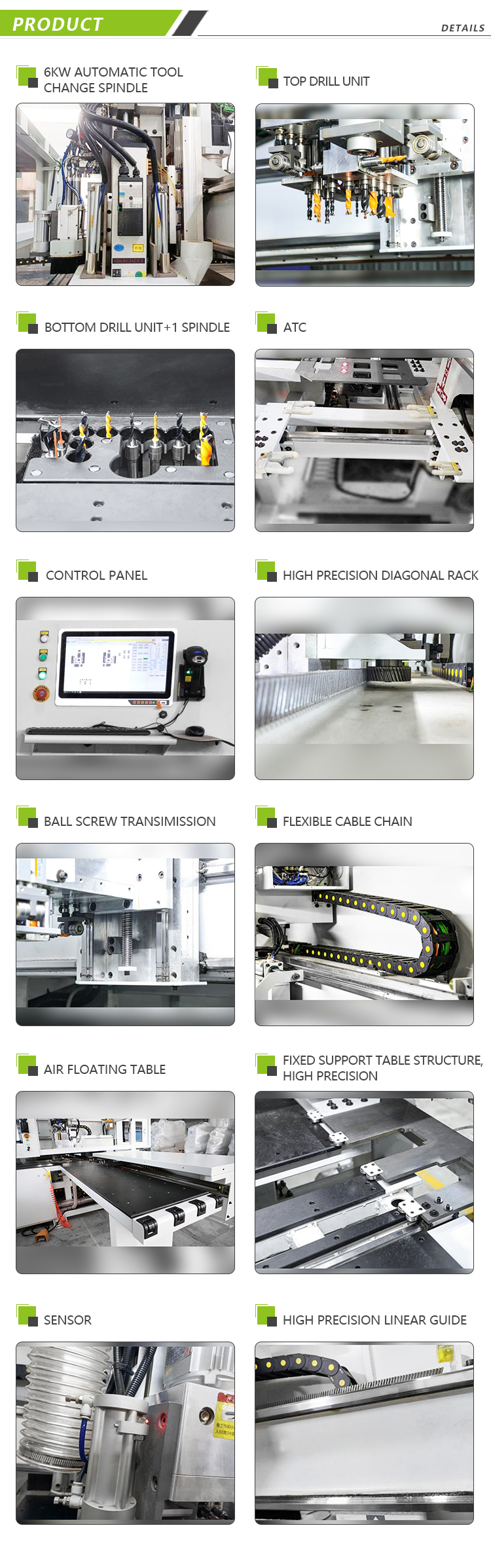

CNC 6 Sides Drilling Machine with 16 bits Round ATC Magazine
