Bottom Shaft Rip Saw
- FEEDING CHAIN ARE MADE BY SPECIAL MATERIAL AND THE STRUCTURE OF THE TEETH IS MORE STRONGER

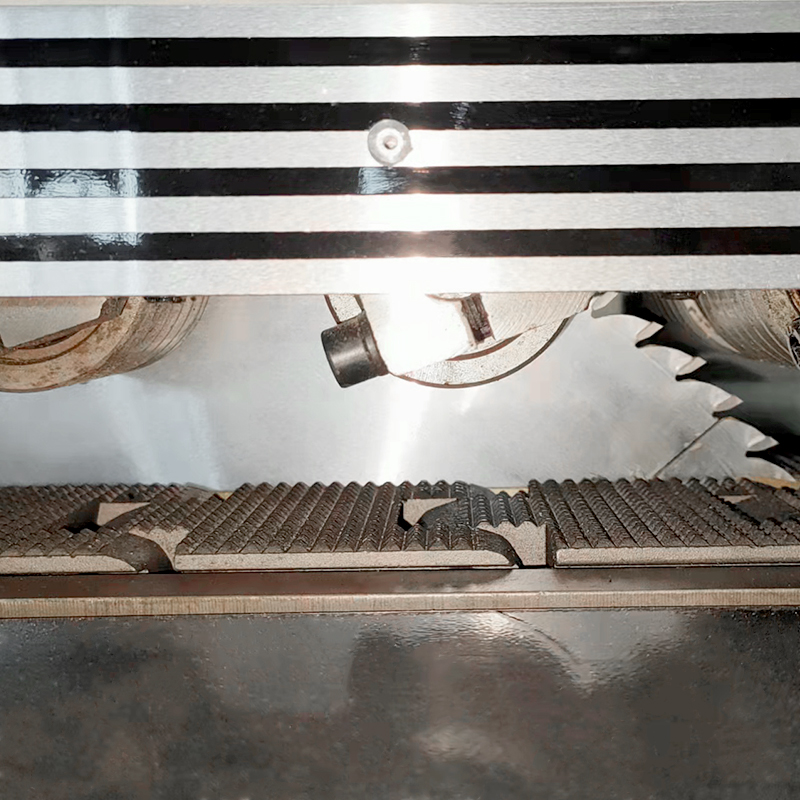

- SAW BLADE ENSURES HIGH PRECISION AND MAKE THE SURFACE OF FINISHED PRODUCT SMOOTH

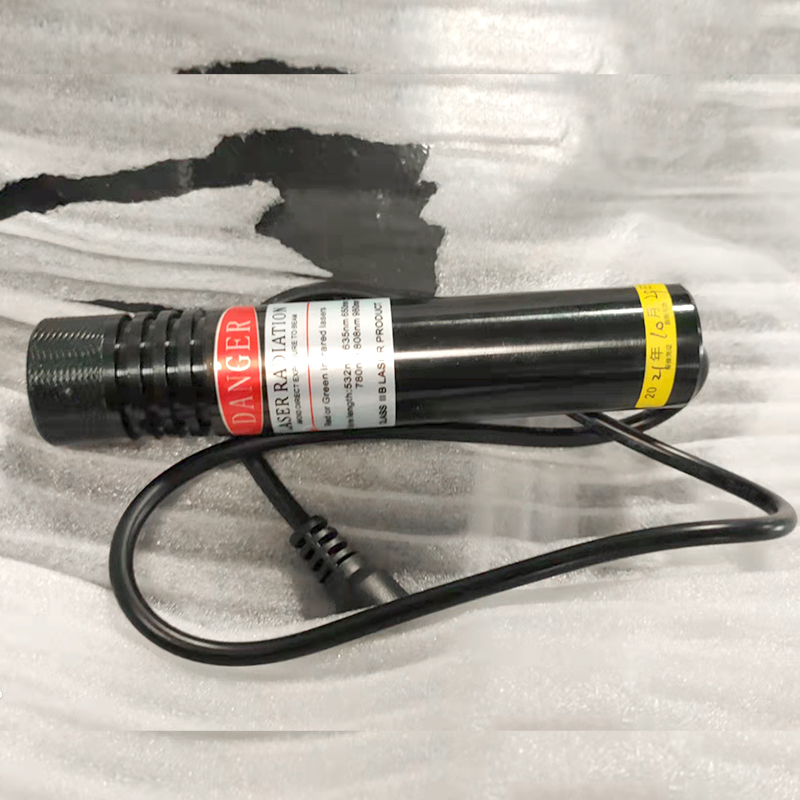

- INFRARED CALIBRATION DEVICE TO MAKE THE REAL-TIME DETECTION
- AUTO OILING FOR KEY PARTS TO EXTEND THE SERVICE LIFE
| Model | RMJV163A |
| Sawing thickness | 10-80mm |
| Maximum sawing width | 470mm |
| Minimum sawing length | 230mm |
| Maximum saw blade diameter | Ф355mm |
| Main motor power | 7.5 kw(optional 11KW) |
| Feed motor power | 1.1kw |
| Lifting box lifting motor power | 0.25kw |
| Total power | 12.35kw |
| Saw shaft diameter | Ф50.8mm |
| Spindle speed | 2840r/min |
| Feeding speed | 10-16-22m/min |
| Working desk size | 1500*980mm |
| Dimension | 1730*1430*1330mm |
| Packing size | 1850*1600*1450mm |
| Weight | 950kg |
