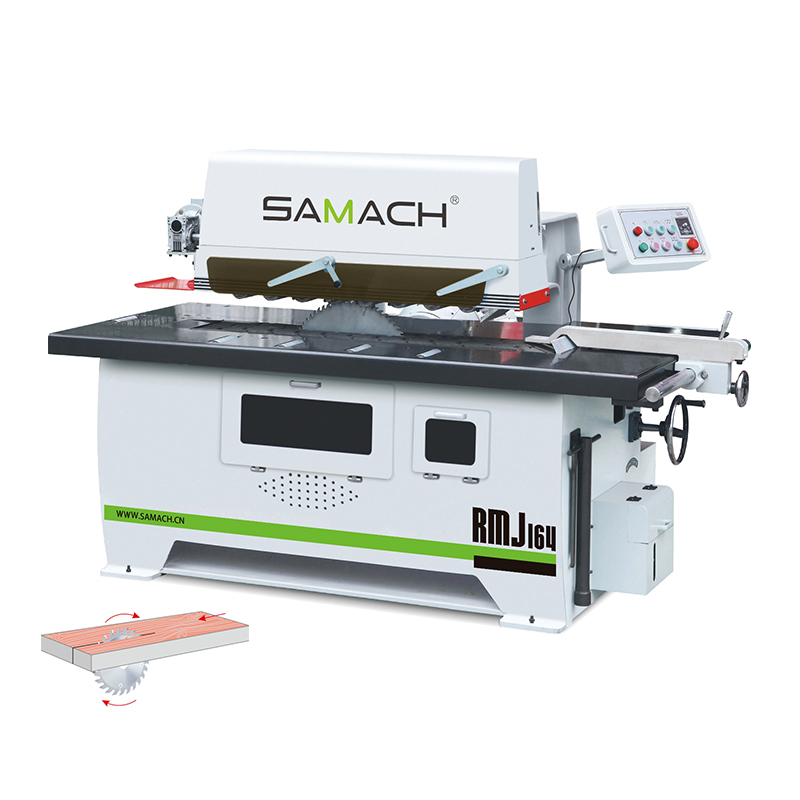

Bottom Shaft Longitudinal Saw

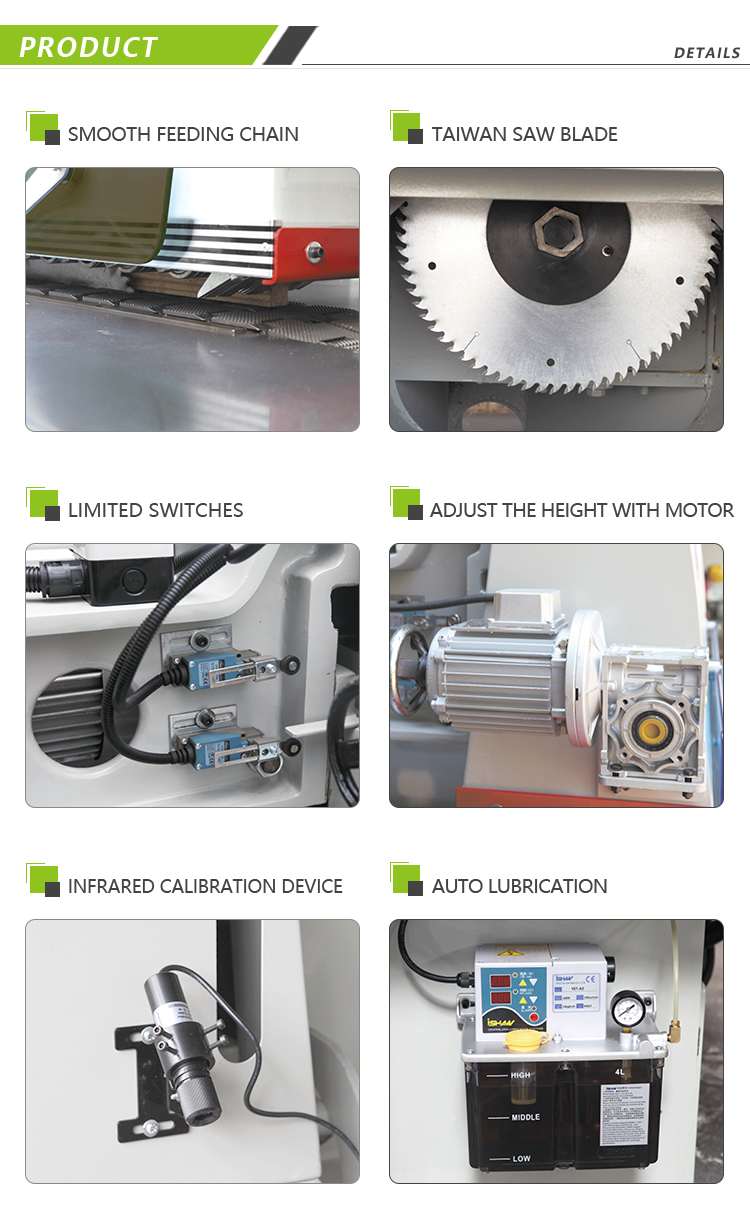

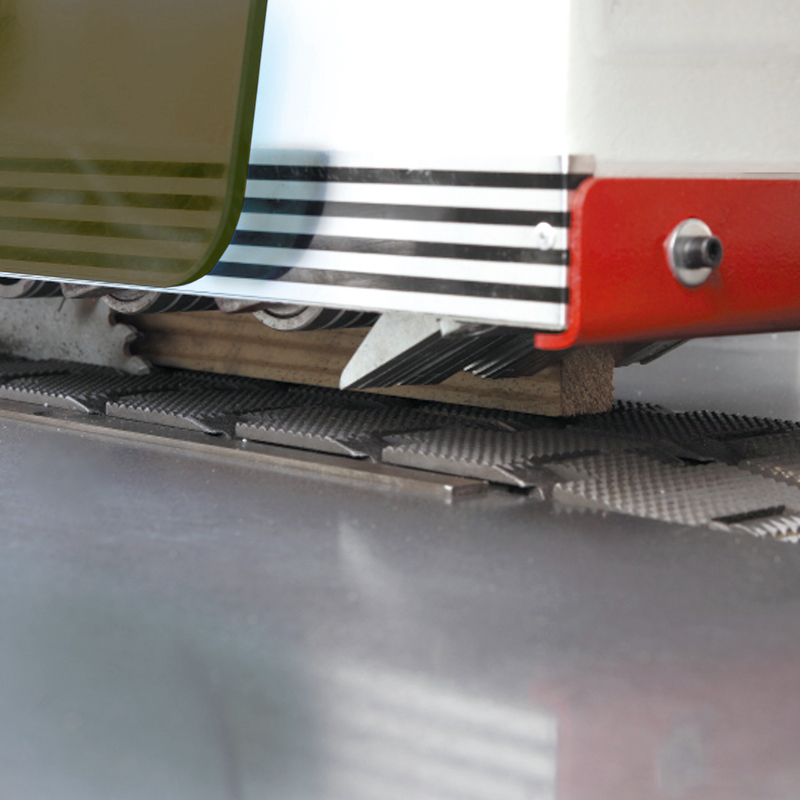

- FEEDING CHAIN ARE MADE BY SPECIAL MATERIAL AND THE STRUCTURE OF THE TEETH IS MORE STRONGER
- SAW BLADE ENSURES HIGH PRECISION AND MAKE THE SURFACE OF FINISHED PRODUCT SMOOTH

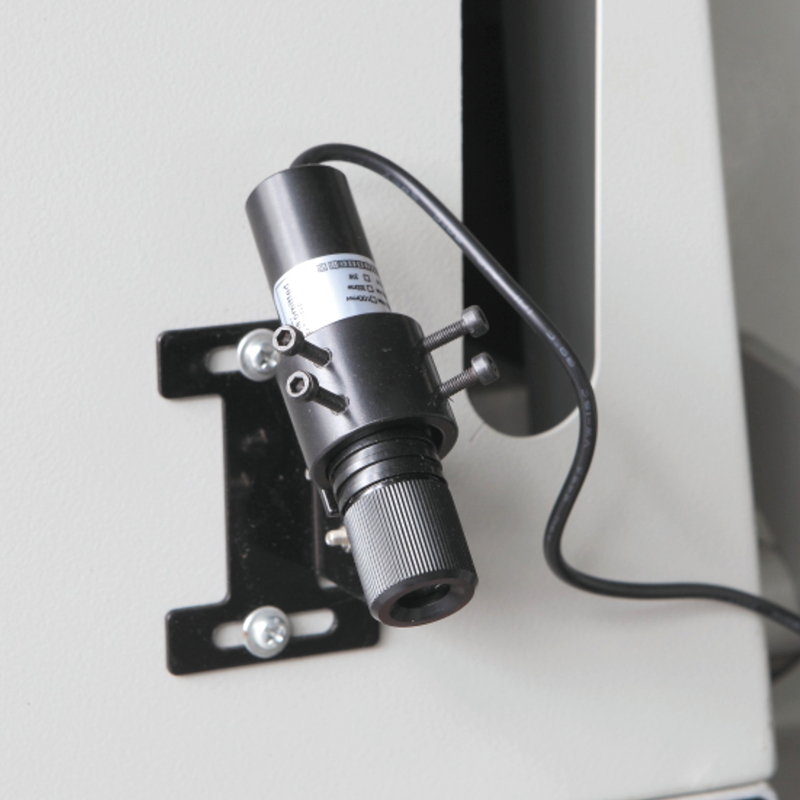

- INFRARED CALIBRATION DEVICE TO MAKE THE REAL-TIME DETECTION

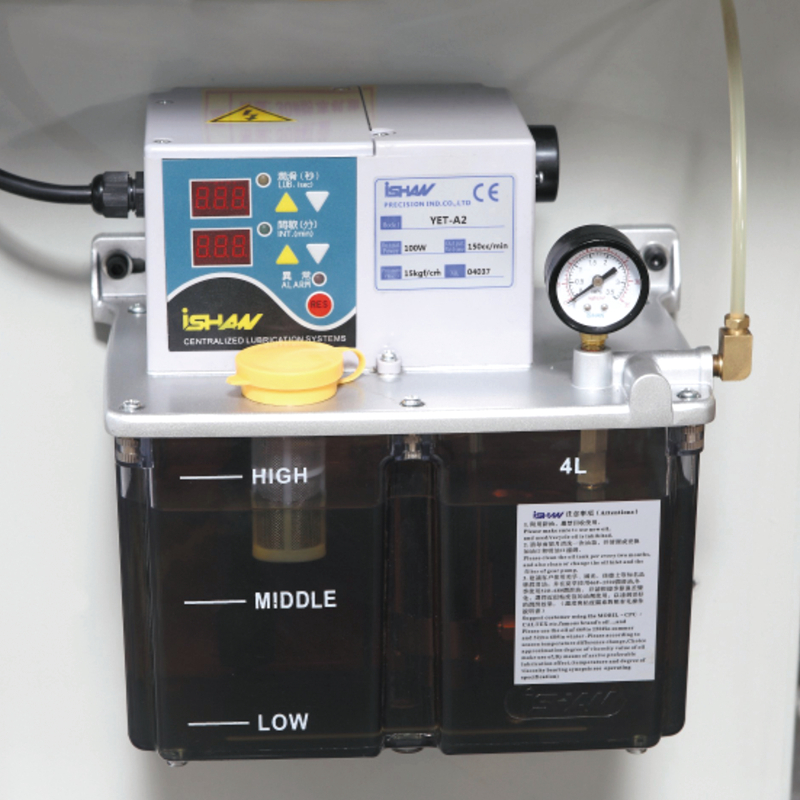

- AUTO OILING FOR KEY PARTS TO EXTEND THE SERVICE LIFE
| Model | RMJV164 |
| Sawing thickness | 10-120mm |
| Maximum sawing width | 560mm |
| Minimum sawing length | 280mm |
| Maximum saw blade diameter | Ф405-500mm |
| Main motor power | 15kw |
| Feed motor power | 2.2kw |

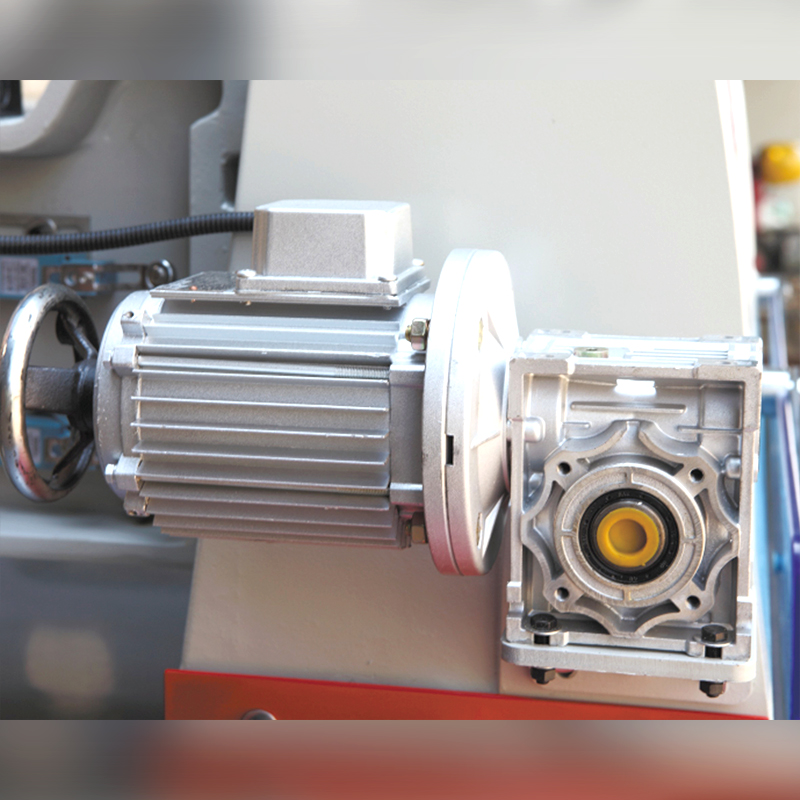

| Lifting box lifting motor power | 0.25kw |
| Total power | 17.45kw |
| Saw shaft diameter | Ф50.8mm |
| Spindle speed | 2840r/min |
| Feeding speed | 10-33m/min |
| Working desk size | 2020*1170mm |
| Dimension | 2260*1850*1450mm |
| Packing size | 2380*1960*1550mm |
| Weight | 1900kg |
