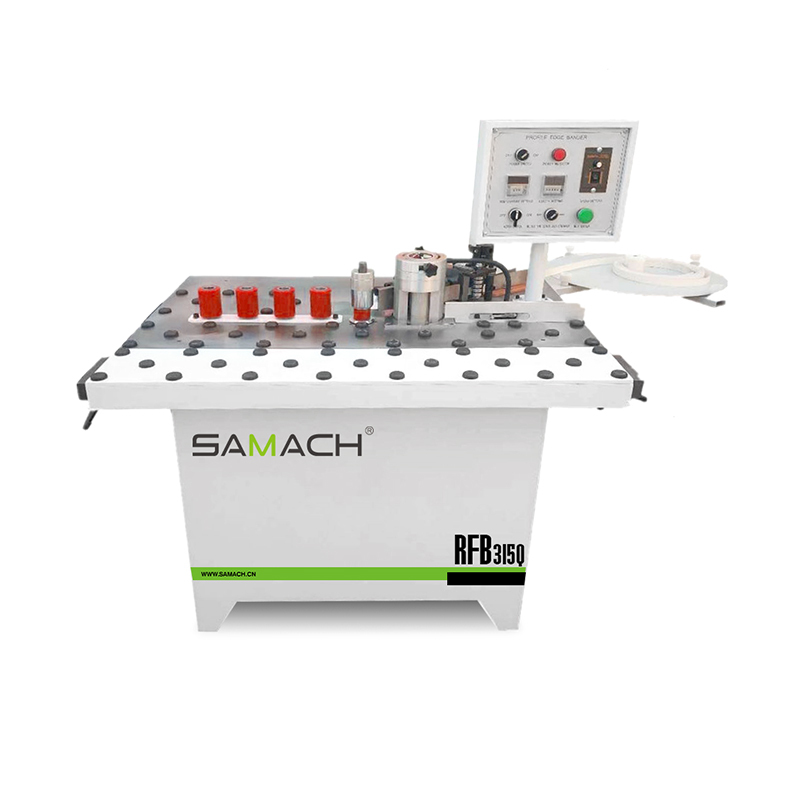

Bevel Curve & Linear Edge Banding Machine
- SUITABLE EDGEBAND: BENDABLE MELAMINE PAPER, WOOD VENEER, PVC AND OTHER FURNITURE EDGE MATERIAL
- SUITABLE GLUE: MEDIUM AND LOW TEMPERATURE GLUE WITH MELTING POINT 160-170
- SUITABLE PLATES: BOARD BONDED WITH GLUE, PARTICLEBOARD, MDF AND ALL SORTS OF PLATES ETC
- EDGE SHAPE: STRAIGHT, CURVE, THE OUTER ARC, INNER ARC AND CIRCULAR(ARC RADIUS ABOVE 20MM), UNLIMITED BORDERS LENGTH
- AUXILIARY WORKING TABLE CAN BE TILTED 45 DEGREES IN ORDER TO BAND BEVEL EDGE MATERIALS EASILY
| Model | CME-315Q |
| Edge band thickness | 0.15-3mm |
| Panel thickness | 10-50mm |
| Min panel length | 150mm |
| Min working radius | 20mm |
| Work table size | 1000*1000mm |
| Feed speed | 1-14m/min |
| Heating power | 1.6kw |
| Work pressure | 0.6Mpa |
| Dimensions | 1400*1000*725mm |
| Weight | 180kg |
