Belt/Direct Driven Screw Air Compressor

Model	RKP30	RKP50	RKP75	RKP100
Cooling mode	Air-Cooling
Air displacement / Discharge pressure	3.8m³/min / 0.7Mpa	6.4m³/min / 0.7Mpa	10.4m³/min / 0.7Mpa	13.2m³/min / 0.7Mpa
	3.6m³/min / 0.8Mpa	6.2m³/min / 0.8Mpa	10m³/min / 0.8Mpa	12.8m³/min / 0.8Mpa
	3.0m³/min / 1.0Mpa	5.6m³/min / 1.0Mpa	8.5m³/min / 1.0Mpa	10.9m³/min / 1.0Mpa
	2.6m³/min / 1.2Mpa	4.6m³/min / 1.2Mpa	7.6m³/min / 1.2Mpa	9.8m³/min / 1.2Mpa
Discharge temperature	Under Ambient temperature+15℃
Oil capacity	22L	26L	54L	54L
Noise	70-72±2 dB(A)	70-72±2 dB(A)	70-78±3 dB(A)	70-78±3 dB(A)
Transmission	Belt Driven
Motor Power	22kw	37kw	55kw	75kw
Overall size	11509501380 mm	128010801480 mm	170014001660 mm	170014001660 mm
Net weight	580kg	780kg	1440kg	1550kg

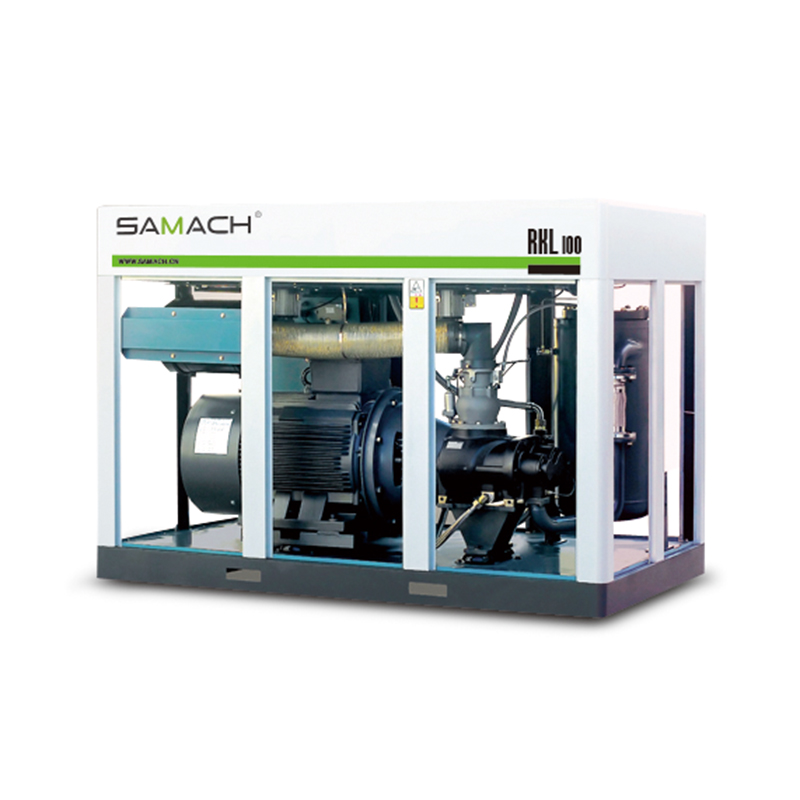

Model	RKL30	RKL50	RKL75	RKL100
Cooling mode	Air-Cooling
Air displacement / Discharge pressure	3.8m³/min / 0.7Mpa	6.1m³/min / 0.7Mpa	10.3m³/min / 0.7Mpa	13.0m³/min / 0.7Mpa
	3.6m³/min / 0.8Mpa	5.8m³/min / 0.8Mpa	9.6m³/min / 0.8Mpa	12.3m³/min / 0.8Mpa
	3.0m³/min / 1.0Mpa	5.1m³/min / 1.0Mpa	8.5m³/min / 1.0Mpa	10.9m³/min / 1.0Mpa
	2.6m³/min / 1.2Mpa	4.6m³/min / 1.2Mpa	7.6m³/min / 1.2Mpa	9.8m³/min / 1.2Mpa
Discharge temperature	Under Ambient temperature+15-18℃
Oil capacity	22L	26L	54L	54L
Noise	68-70±2 dB(A)	68-70±2 dB(A)	70-78±3 dB(A)	70-78±3 dB(A)
Transmission	Coupling is connected with a driver directly
Motor Power	22kw	37kw	55kw	75kw
Overall size	13509501230 mm	158010801380 mm	200014001660 mm	200014001660 mm
Net weight	630kg	870kg	1550kg	1680kg
