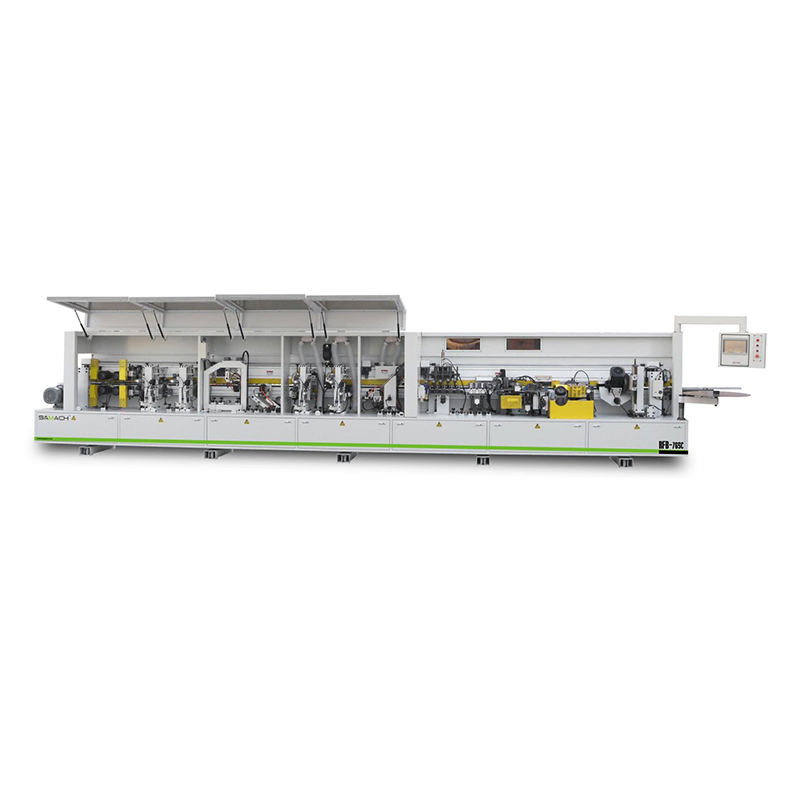

Automatic Inclination Edge Banding Machine with Corner Trim
- STRAIGHT & BEVEL EDGE OR TOTALLY STRAIGHT CAN BE DONE IN ONE MACHINE
- MIN SIZE FOR BEVEL & STRAIGHT: 250*250*15MM
- MIN SIZE FOR STRAIGHT: 120*120*9MM
- THE STRAIGHT PART EDGE SHOULD BE OVER THAN 5MM
- THICKNESS OF PVC:0.6-15MM FOR BEVEL & STRAIGHT, 0.4-3MM FOR STRAIGHT
| Model | RFB765C |
| Panel length | Inclined Straight: ≥250mm Straight: ≥120mm |
| Panel width | Inclined Straight: ≥250mm Straight: ≥120mm |
| Panel thickness | Inclined Straight:15-25mm Straight: 9-50mm Straight reserved: >5mm |
| Edge band thickness | Inclined Straight: 0.6-1.5mm Straight: 0.4-3mm |
| Infeed speed | 0-22m/min |
| Air pressure | 0.6Mpa |
| Total power | 21.7kw |
| Overall size | 8800*1000*1900mm |
