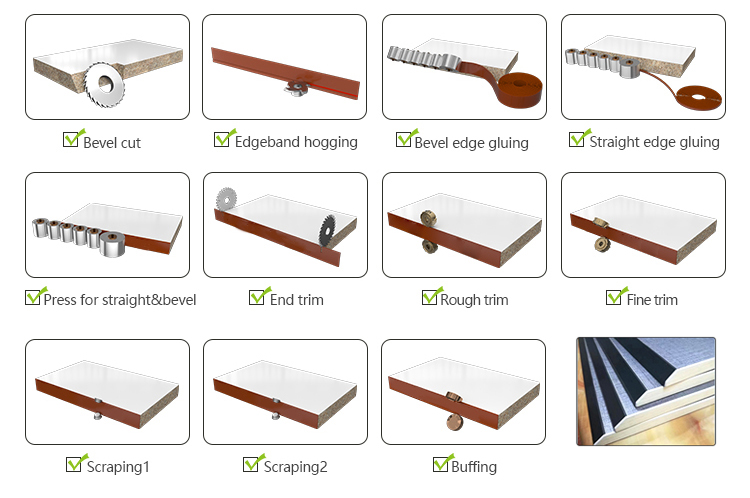

- SPECIAL FOR STRAIGHT & BEVEL EDGE IN LIMITED SPAMIN SIZE
- MIN SIZE FOR BEVEL & STRAIGHT: 250*250*15MM
- LENGTH OF THE WHOLE MACHINE IS LESS THAN 7.5M
- THE STRAIGHT PART EDGE SHOULD BE OVER THAN 5MM
- THICKNESS OF PVC: 0.6-1.5MM. OTHER THICKNESS IS OPTIONAL

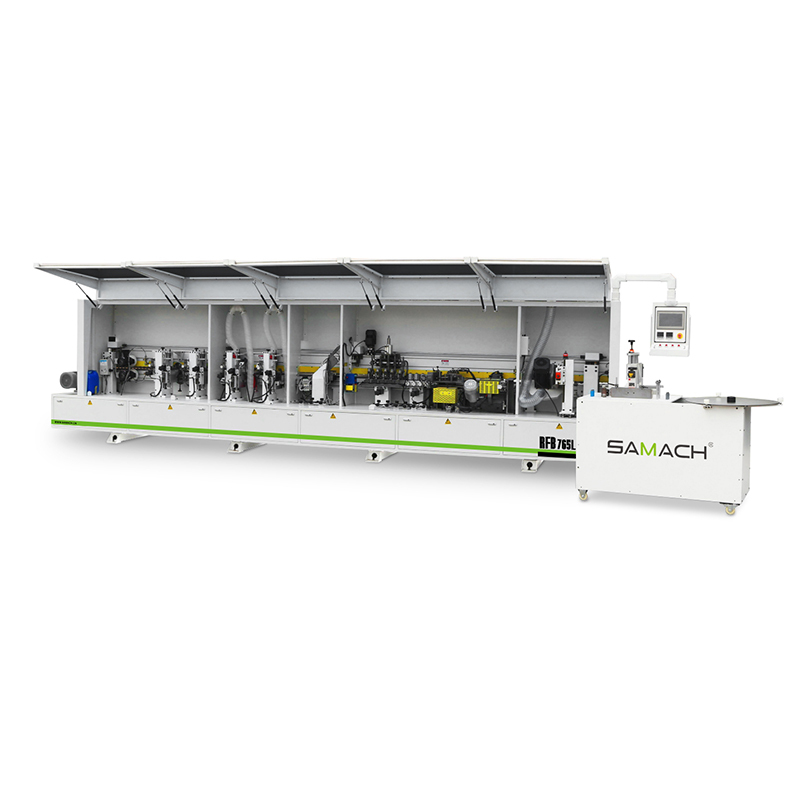

| Model | RFB765L |
| Panel length | ≥250mm |
| Panel width | ≥250mm |
| Panel thickness | 15-25mm Straight reserved: ＞5mm |
| Edge band thickness | 0.6-1.5mm |
| Infeed speed | 0-22m/min (5.5kw feeding motor) |
| Lifting motor | 0.37kw |
| Air pressure | 0.6Mpa |
| Total power | 16kw |
| Overall size | 7500*1000*1900mm |
