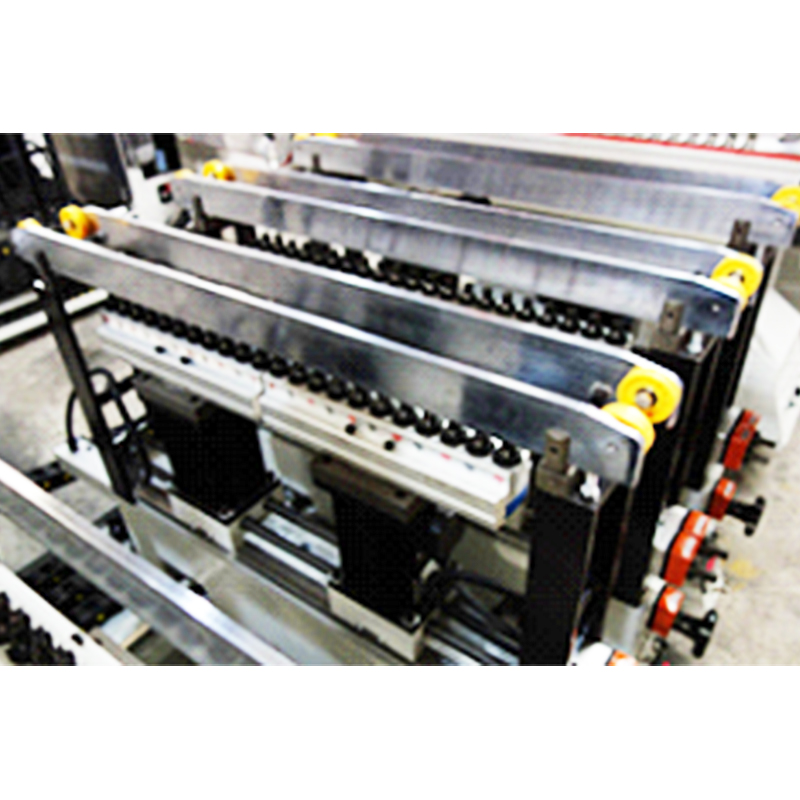

Automatic Feeding Four Rows Drilling Machine

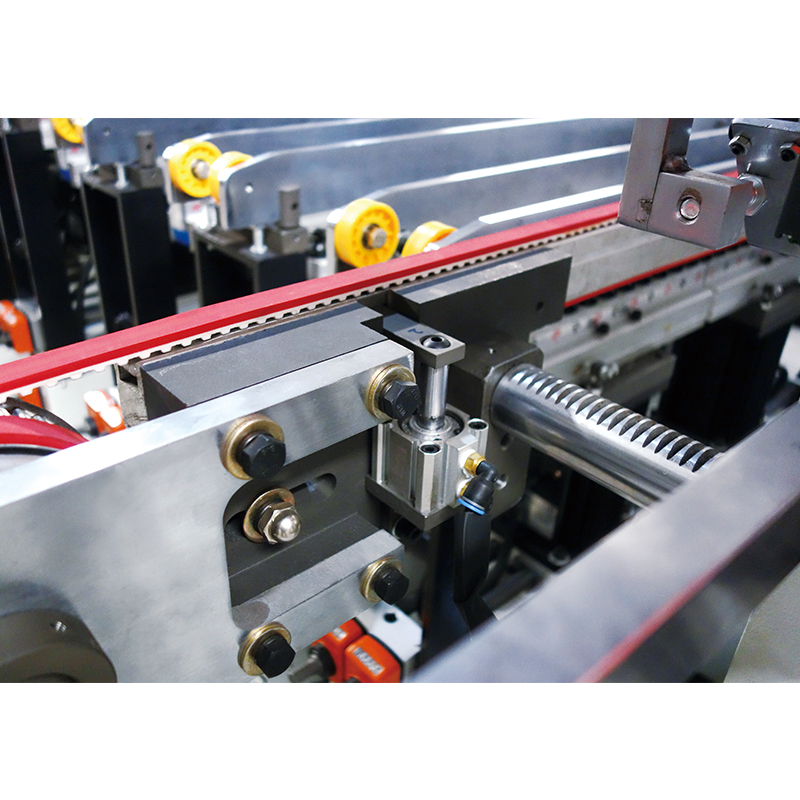

- DRILL GROUP ADOPTS DOUBLE LINEAR GUIDE RAIL WHICH ENSURED STABILITY AND DURATION

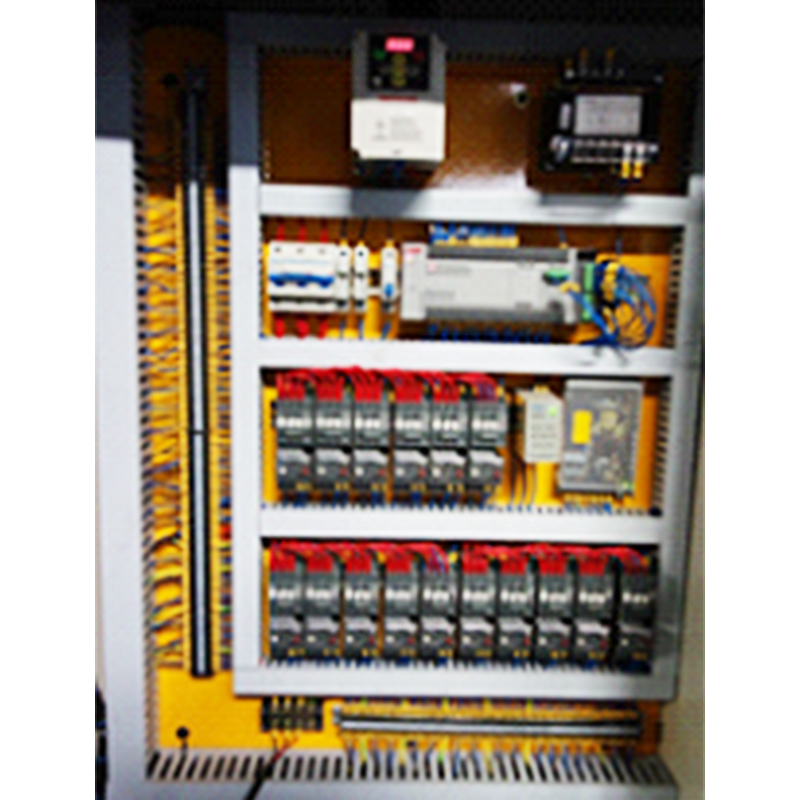

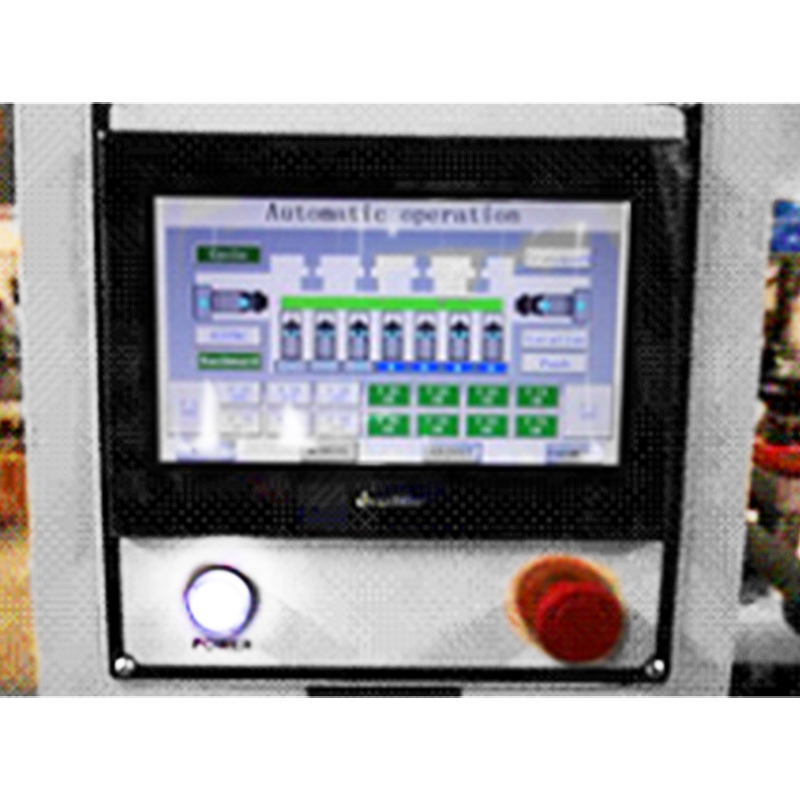

- FAMOUS BRAND TOUCH SCREEN AND PLC CONTROL SYSTEM ARE APPLIED WHICH MAKES MACHINE FULL OF POWER AND HAS LOW FAILURE RATE
- DRILL HOLE RANGE IS BIG, ALL DRILL BIT USING FAST CONNECTION DESIGN, QUICK AND EASY

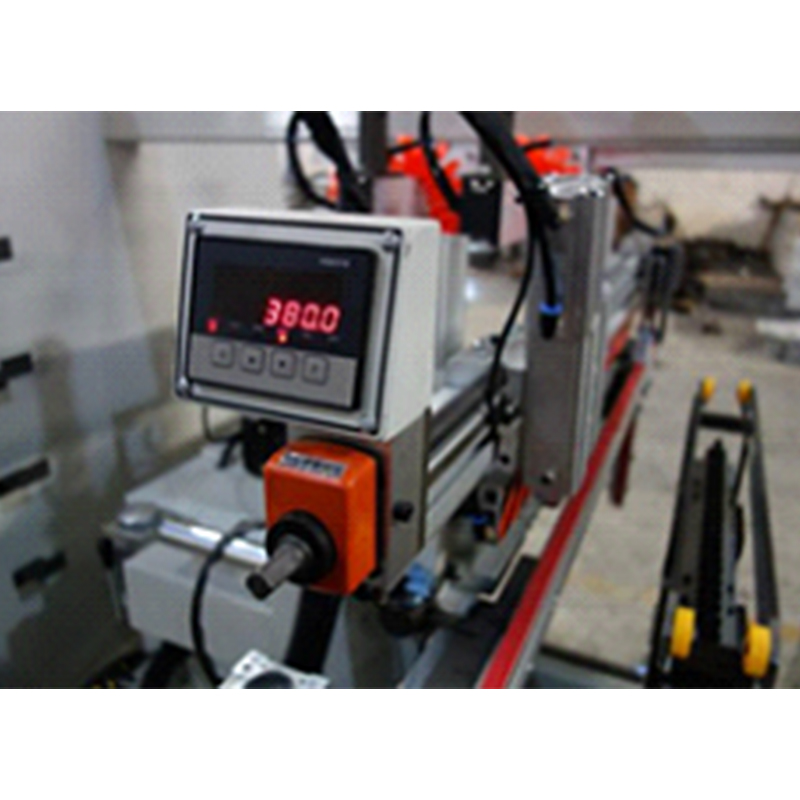

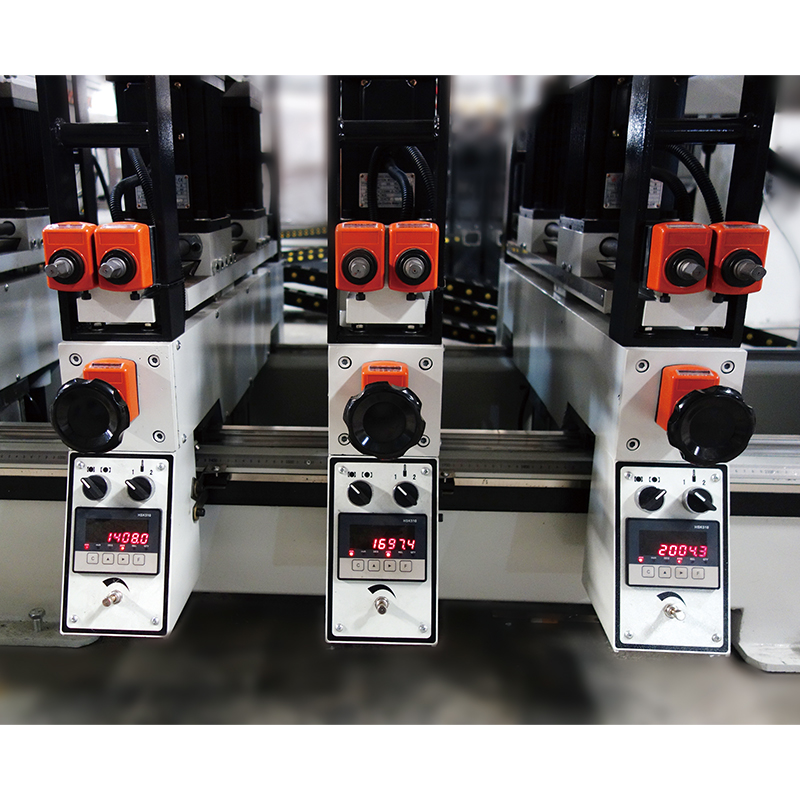

- THE DEPTH AND DISTANCE OF THE DRILL HOLE WILL BE DISPLAYED ON THE HIGH-PRECISION DIGITAL TUBE WHICH MAKES THE SIZE LOCATION FAST AND PRECISE

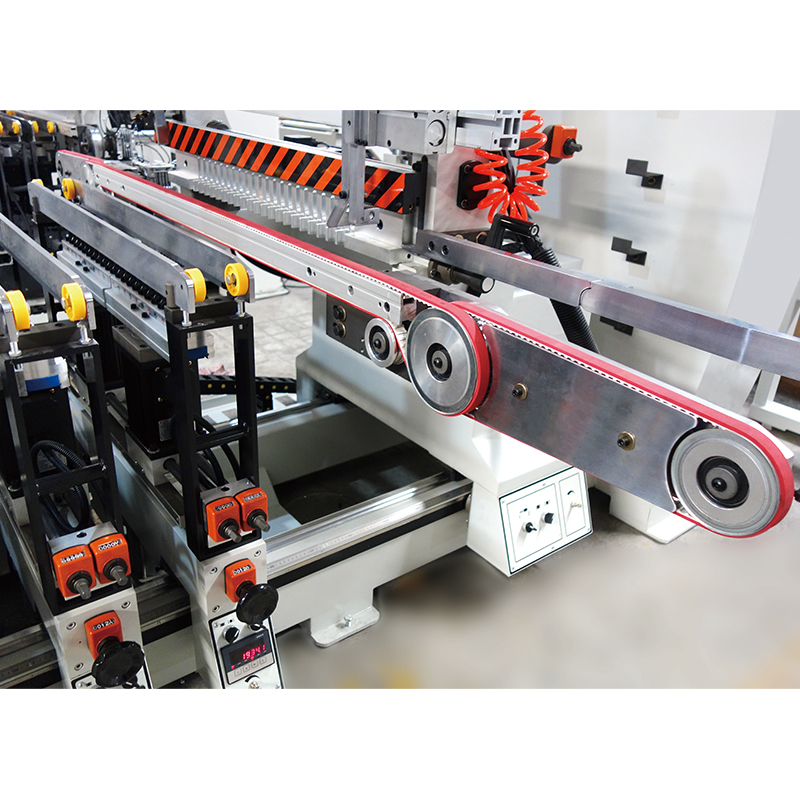

- HIGH-SPEED AUTOMATIC FEEDING DEVICE RUN SMOOTHLY, PROCESSING EFFICIENCY IS 15-20 TIMES PER MINUTE
- MACHINE USE FRAME STRUCTURE, SOLID BODY, AND SET WITH EMERGENCY STOP DEVICES, SAFE AND RELIABLE
| Model | RMZ-4BL | RMZ-4CL |
| Max. center distance between holes | 2450mm*672mm | 1500mm*672mm |
| Min. center distance between holes | 250mm*32mm | 220mm*32mm |
| Workpiece thickness | 8-50mm | 12-40mm |
| Total quantity of spindles | 11pcs*4+22pcs*2 | 22pcs*2+22pcs*2 |
| Total quantity of drill lines | 2+2 | 2+2 |
| Max. drilling diameter | 35mm(single bit) 13mm(multi bits) |
35mm(single bit) 13mm(multi bits) |
| Max. drilling depth | 50mm | 50mm |
| Spindle speed | 2840rpm | 2840rpm |
| Processing speed | 13-16pcs/min | Single plate:13-16pcs/min Double plates:20-26pcs/min |
| Total power | 10.1kw | 6.5kw |
| Net weight | 1500kg | 1000kg |
| Overall dimensions | 4500*2250*1650mm | 3400*2250*1650mm |
