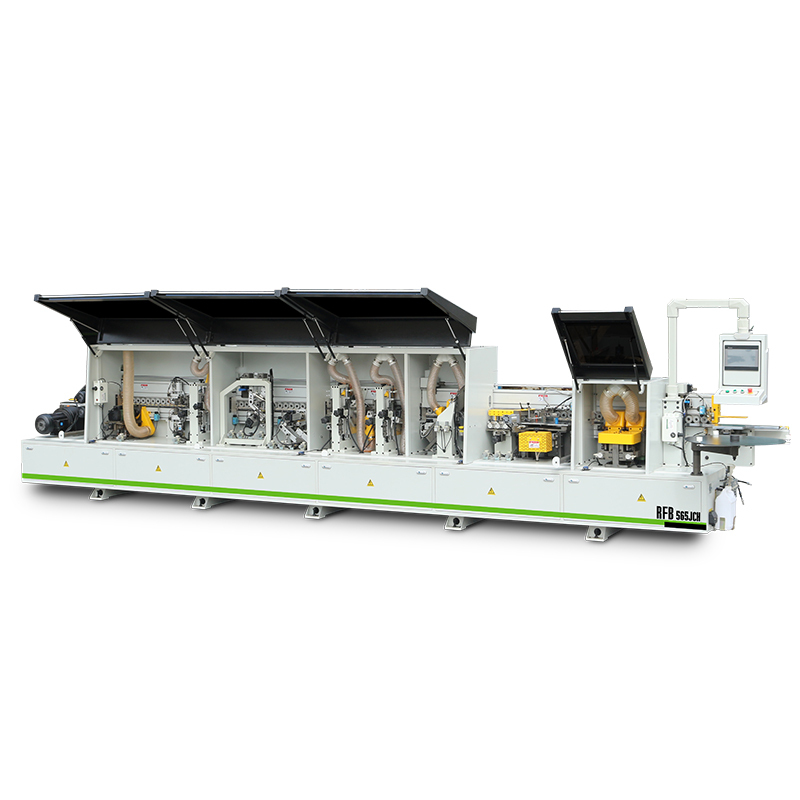

Automatic Edge Banding Machine with Flat Scrapping and Hogging
$0.00 USD
Quantity
Free worldwide shipping
Free returns
Carbon neutral
Secure payments

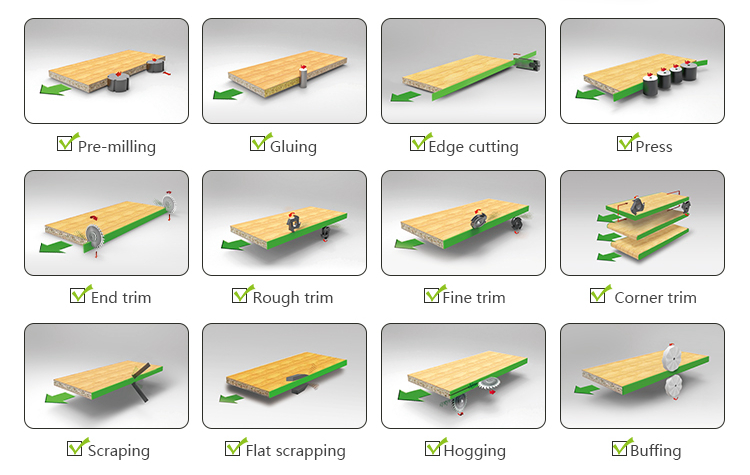

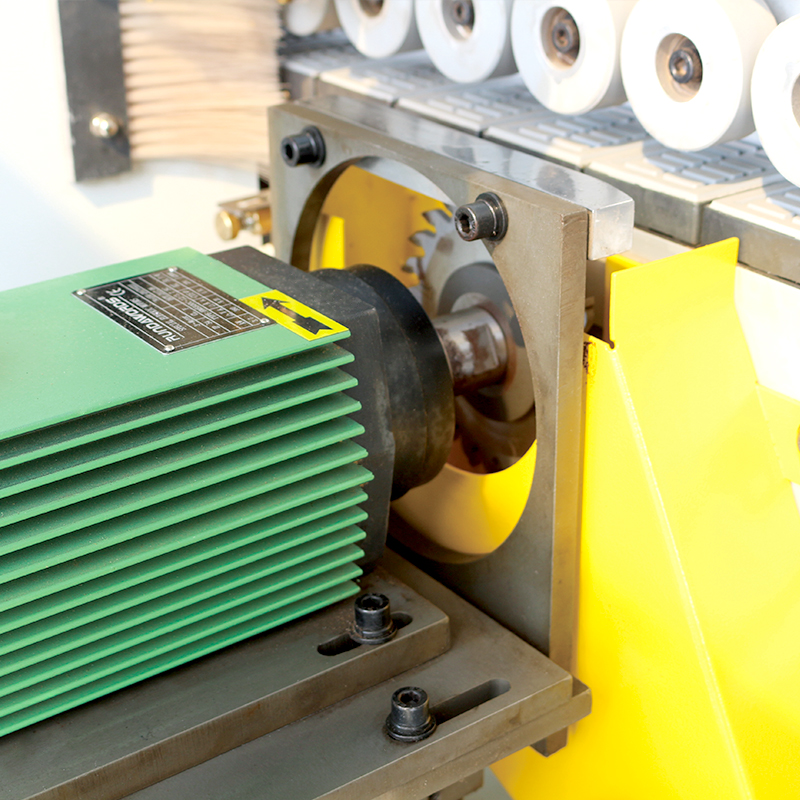

- PRE-MILLING CUER Φ125MM H35MM SIX-TOOTH DIAMOND

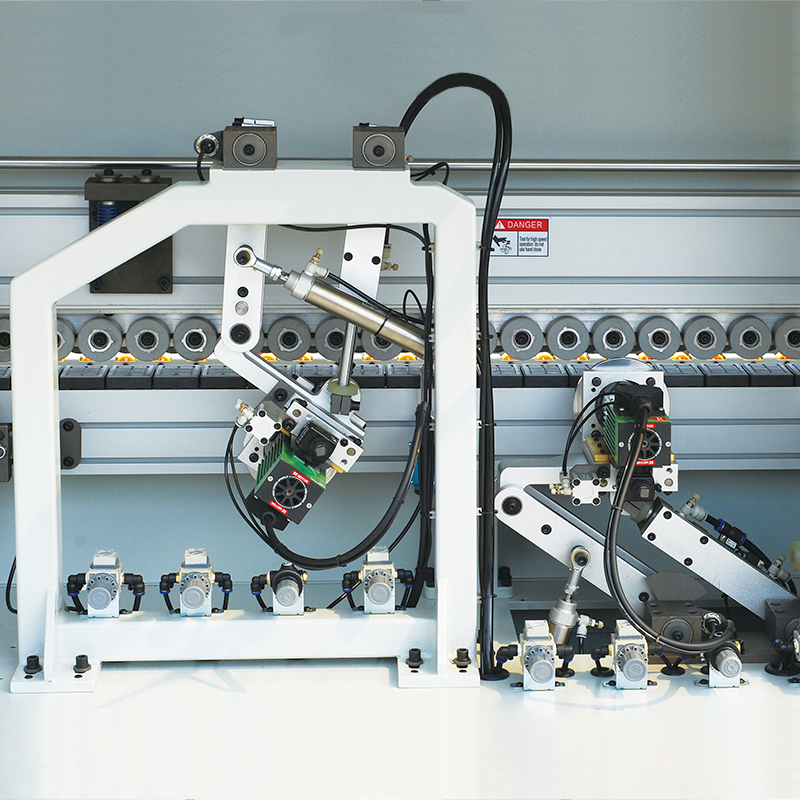

- 0.37KW*2 HIGH FREQUENCY AND HIGH SPEED MOTOR FOR END TRIM

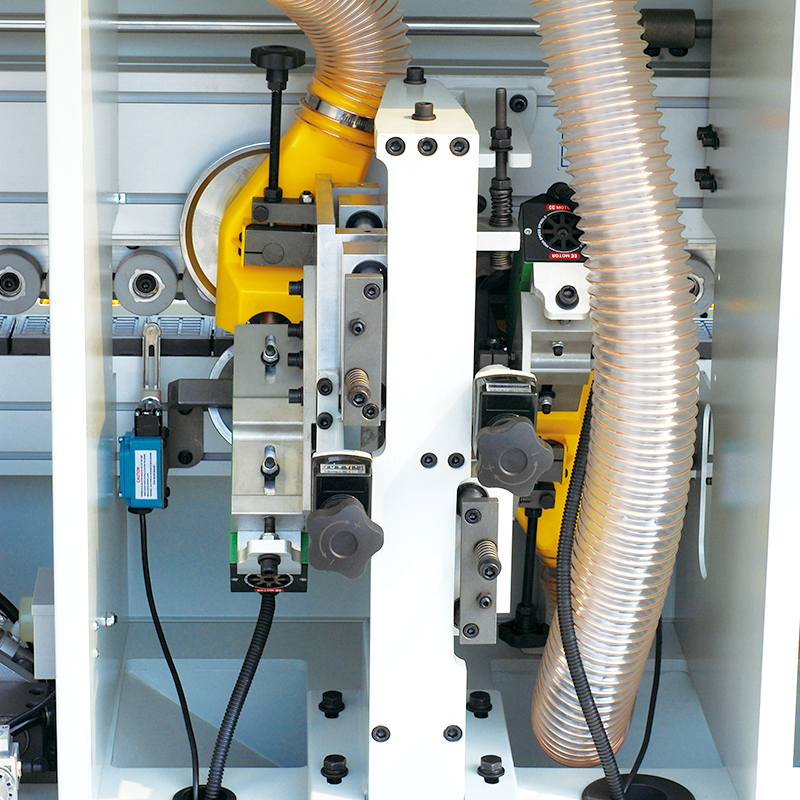

- 0.75KW*4 HIGH FREQUENCY MOTOR FOR ROUGH AND FINE TRIM

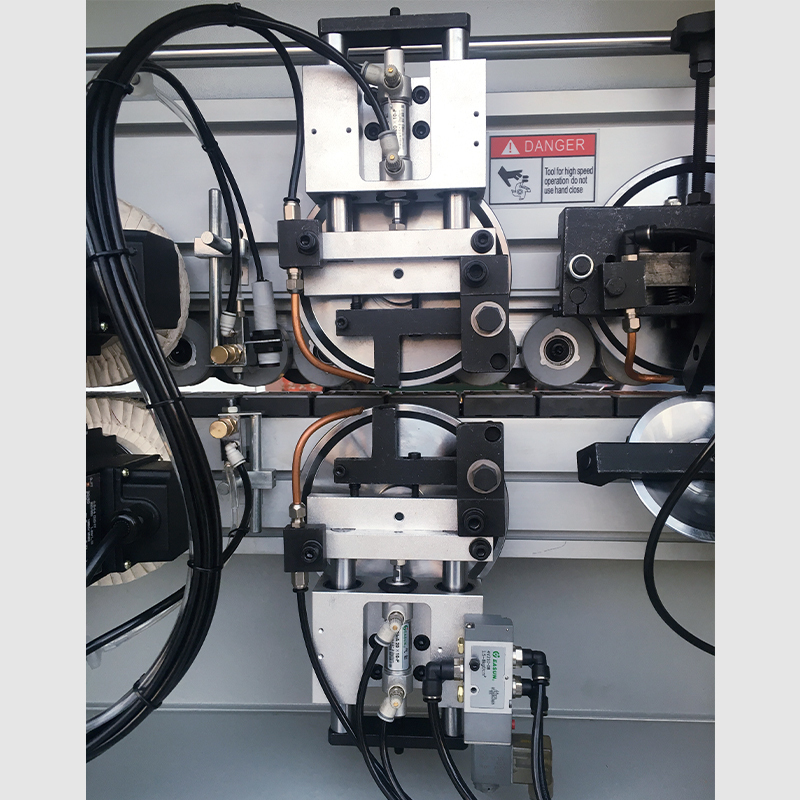

- 0.37KW*2 HIGH FREQUENCY MOTOR FOR CORNER TRIM
- FLAT SCRAPING UNIT REMOVES RESIDUAL GLUE FROM PANEL

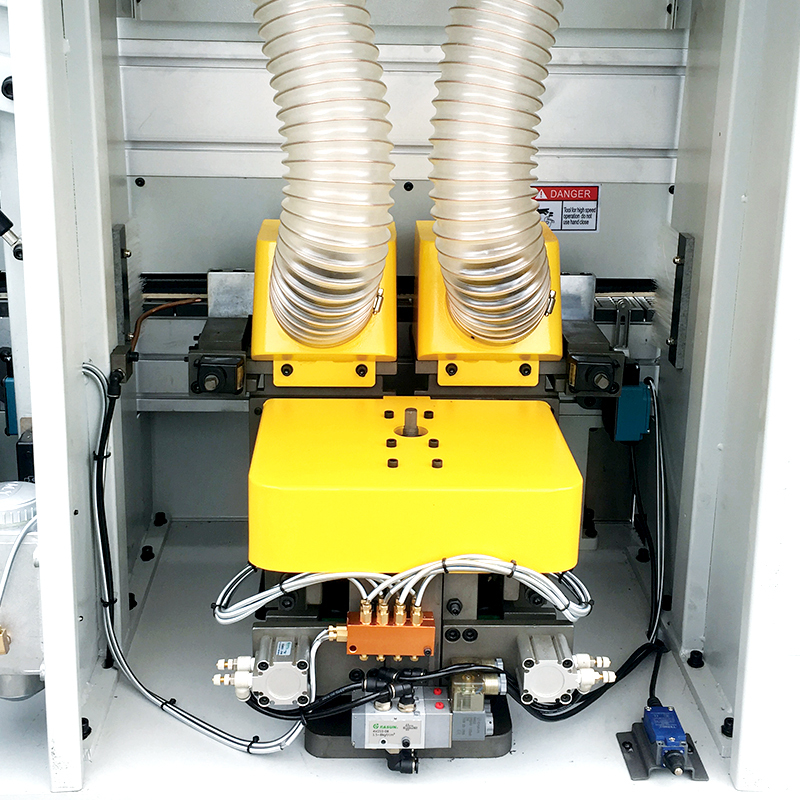

- SIDE HOGGING OR DOWN HOGGING CAN BE CHOOSED

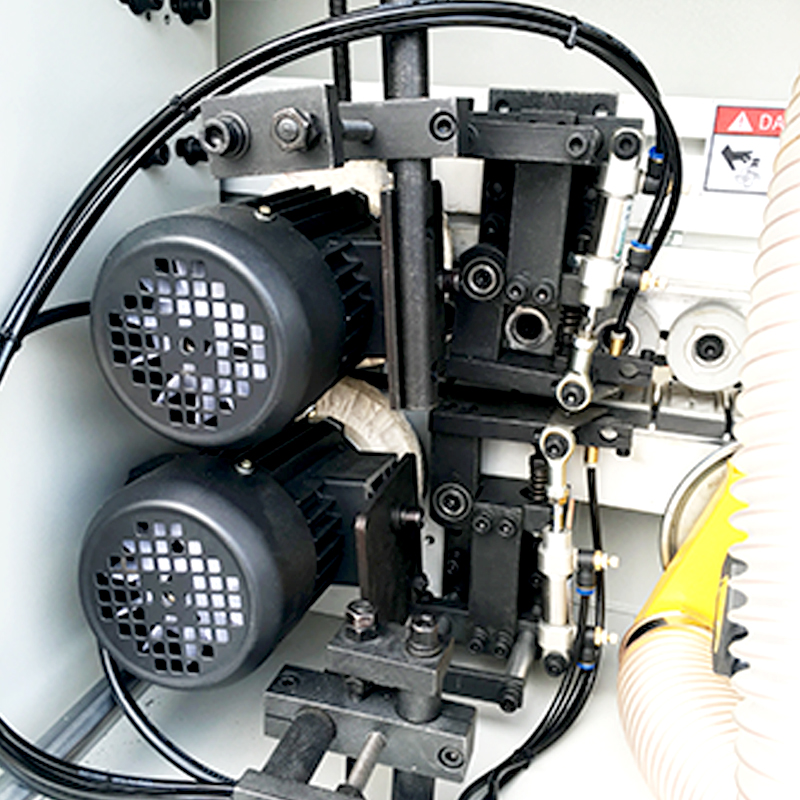

- TWO INDEPENDENT MOTORS EQUIPPED WITH BUFFING WHEELS
| Model | RFB565JCFH |
| Panel length | ≥300mm |
| Panel width | ≥60mm |
| Panel thickness | 10-60mm |
| Edgeband thickness | 0.3-3mm |
| Feeding speed | 13-22m/min |
| Required air pressure | 0.6Mpa |
| Min. panel size | 150(L)*150(W)mm |
| Total power | 22.7kw |
| Overall dimensions | 7350*900*1560mm |
