Automatic Edge Banding Machine with EVA Glue and PUR Glue

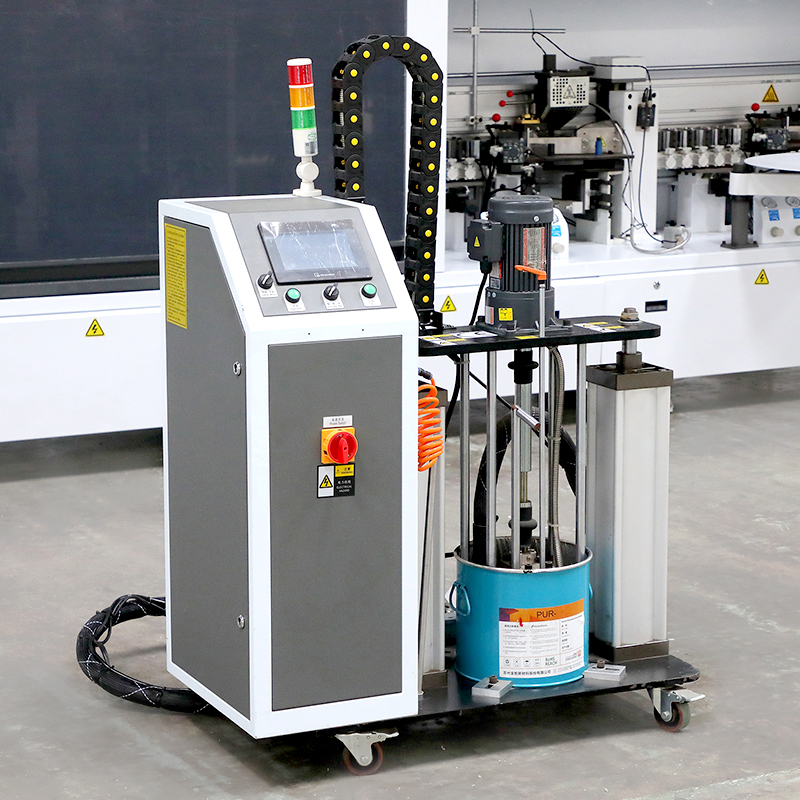

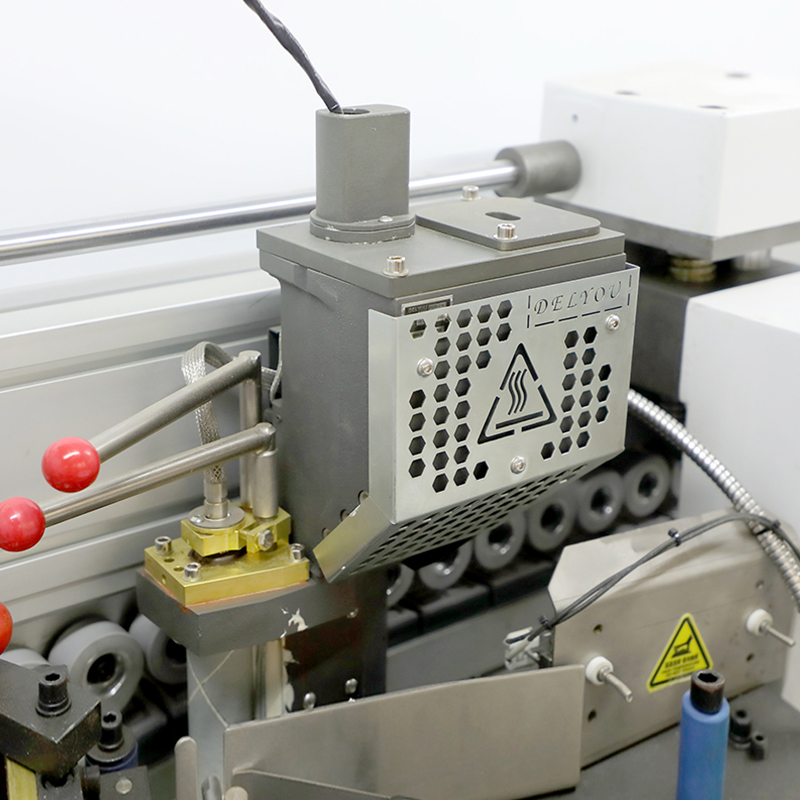

- 2 GLUE SYSTEM: EVA HOT GLUE AND PUR GLUE BOX

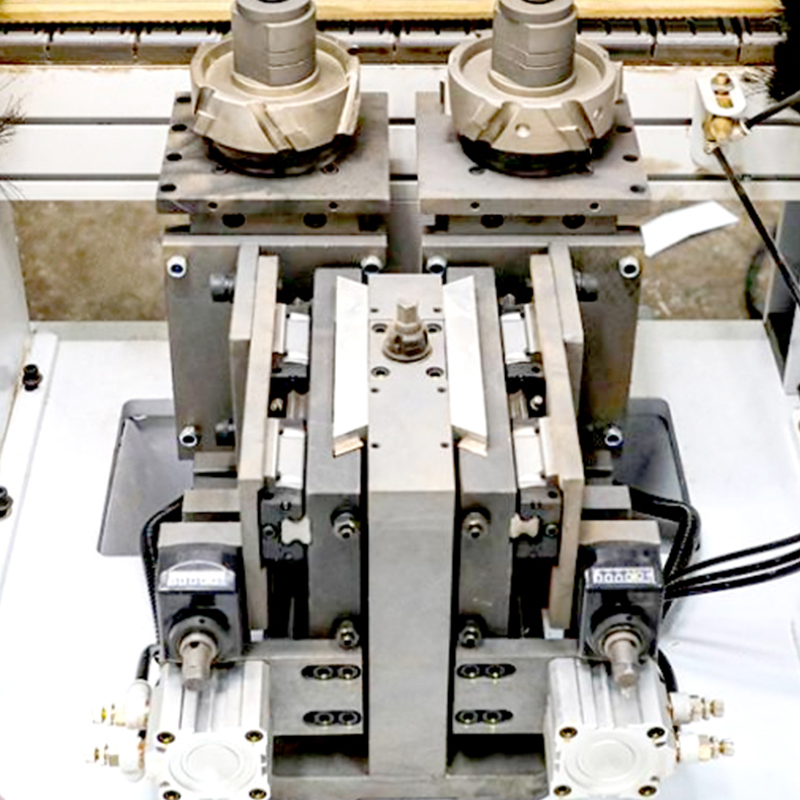

- 2*2.2KW WITH HIGH HARDNESS AND WEAR RESISTANCE PRE-CUTTERS
- HIGH SPEED MOTOR OF 0.37KW TO ENSURE THE SMOOTH EDGE CUT

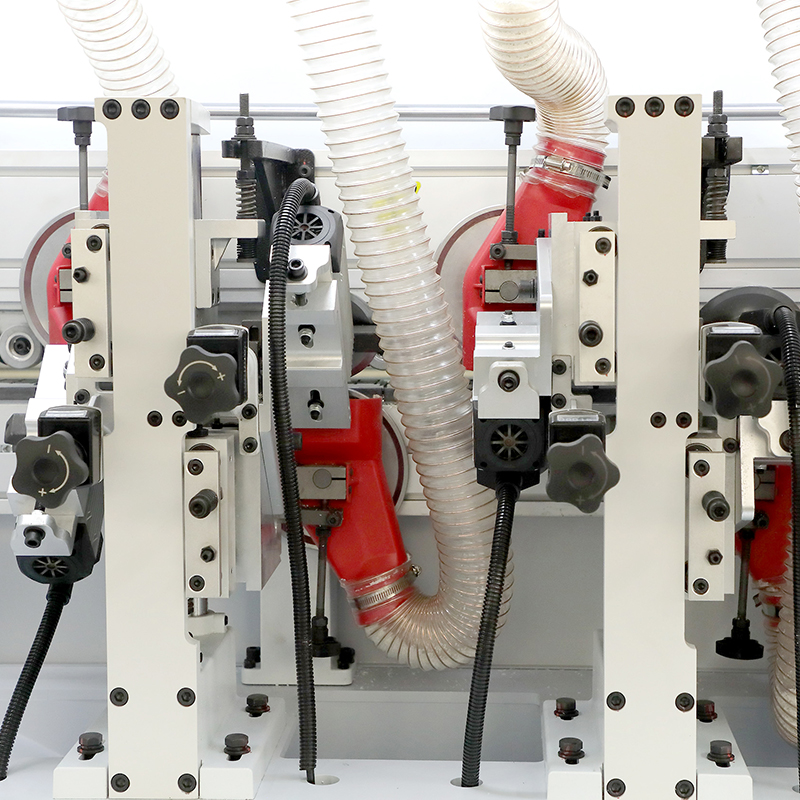

- 4*0.75KW HIGH FREQUENCY MOTORS FOR ROUGH & FINE TRIM
- 0.37KW*2PCS HIGH FREQUENCY MOTORS FOR CORNER TRIM
- PNEUMATIC SOFT FLAT SCRAPPING

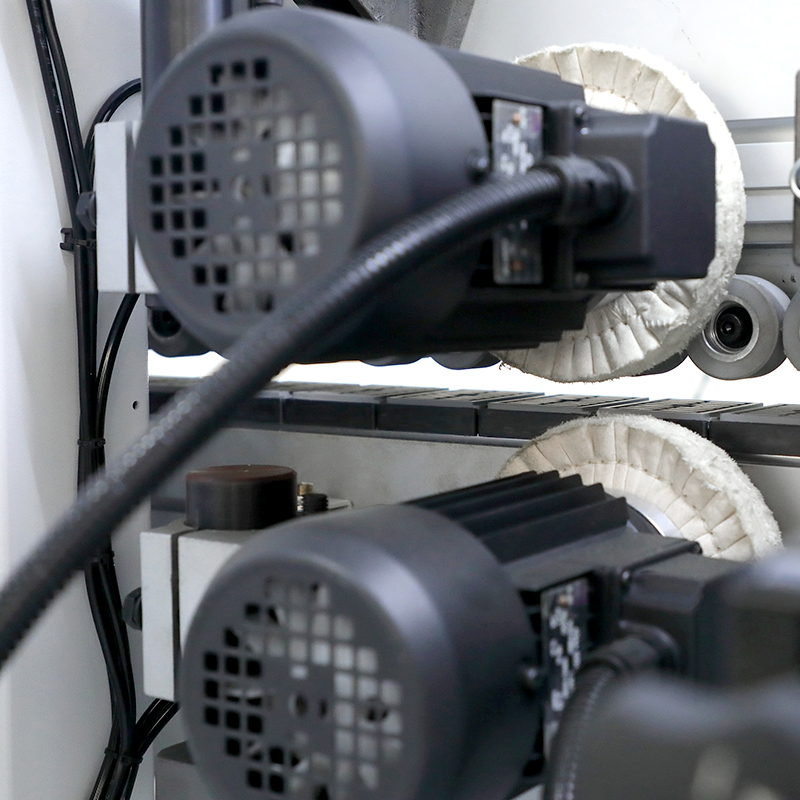

- TWO INDEPENDENT 0.37KW MOTORS EQUIPPED WITH BUFFING WHEELS

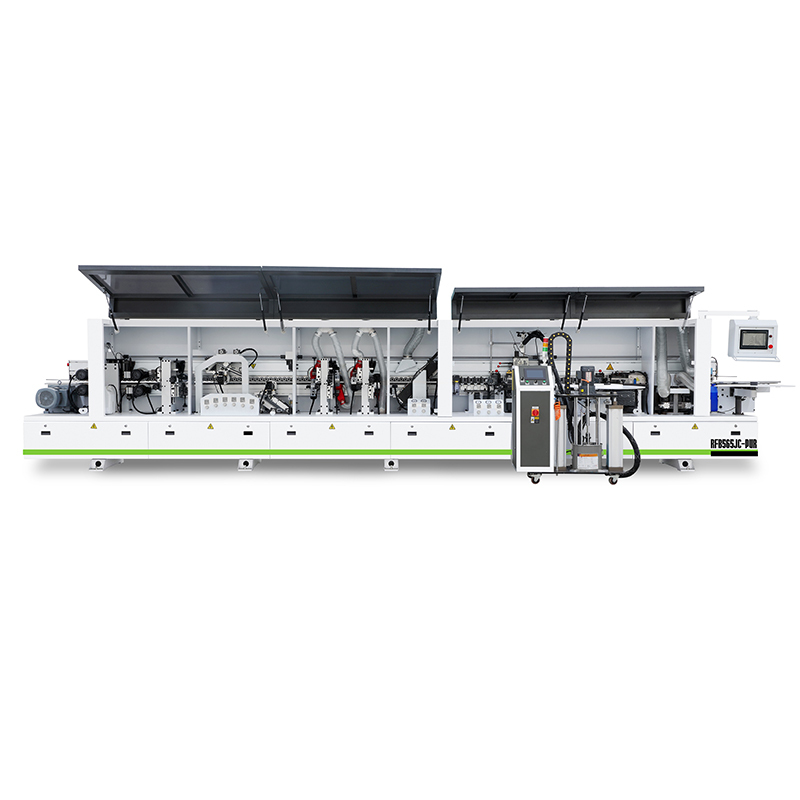

| Model | RFB565JC-PUR |
| Panel length | ≥80mm |
| Panel width | ≥45mm |
| Panel thickness | 10-60mm |
| Edgeband thickness | 0.4-3mm |
| Feeding speed | 13-22m/min |
| Required air pressure | 0.65Mpa |
| Total power | 14.2kw |
| Overall dimensions | 8600*1200*1680mm |
