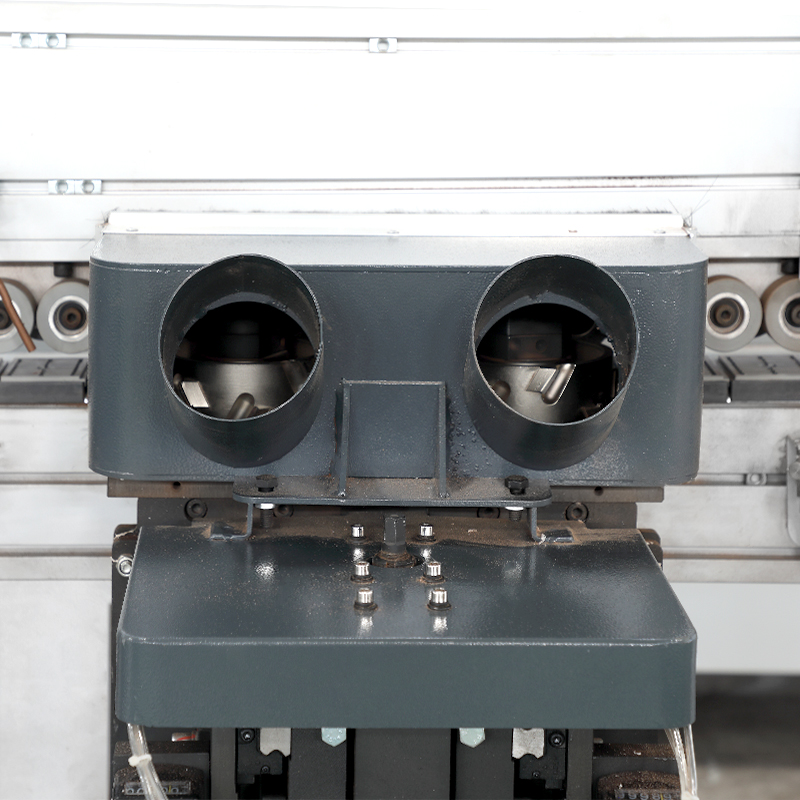

- 2.2KW*2 HIGH FREQUENCY AND HIGH SPEED MOTOR FOR RE-MILLING

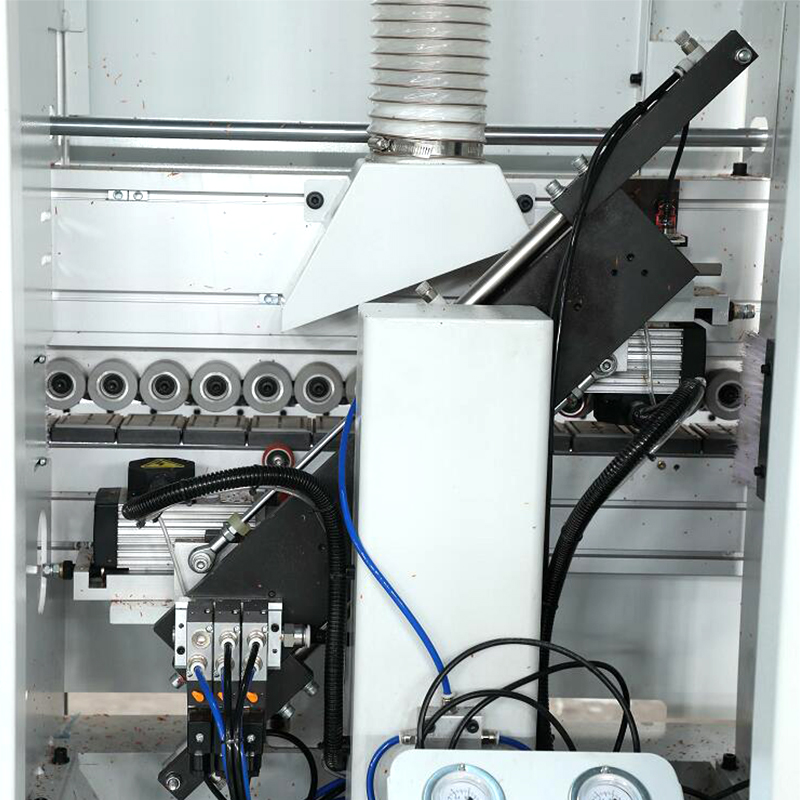

- 0.37KW*2 HIGH FREQUENCY AND HIGH SPEED MOTOR FOR END TRIM

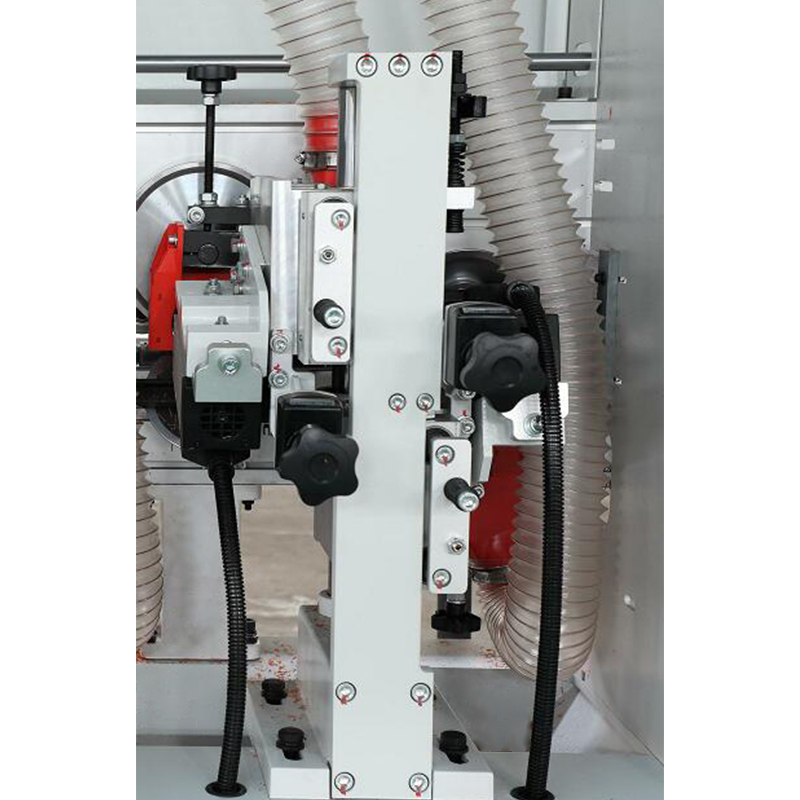

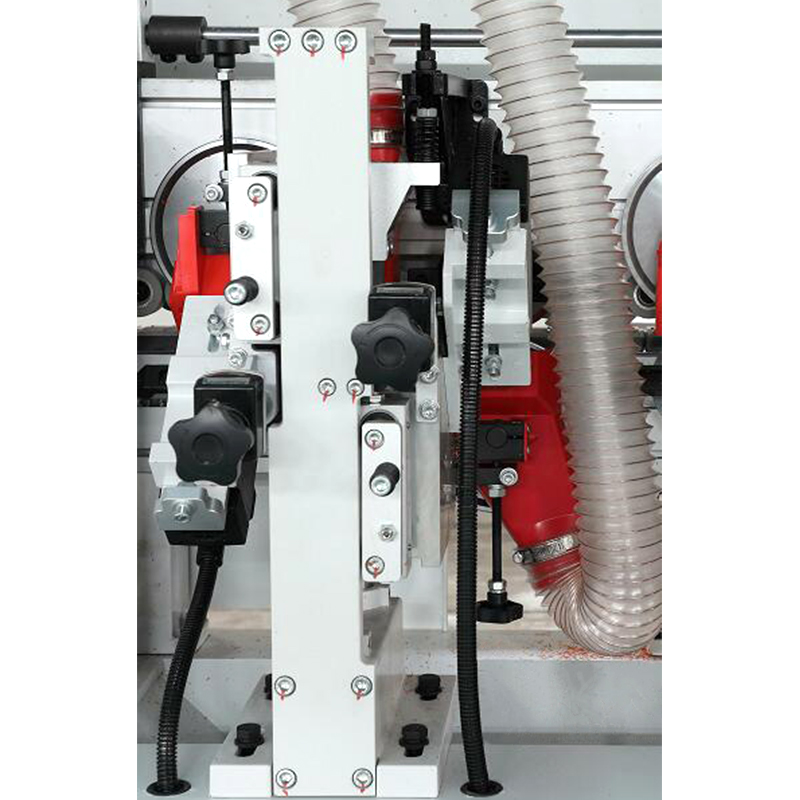

- 0.75KW*2 HIGH FREQUENCY MOTOR FOR ROUGH AND FINE TRIM

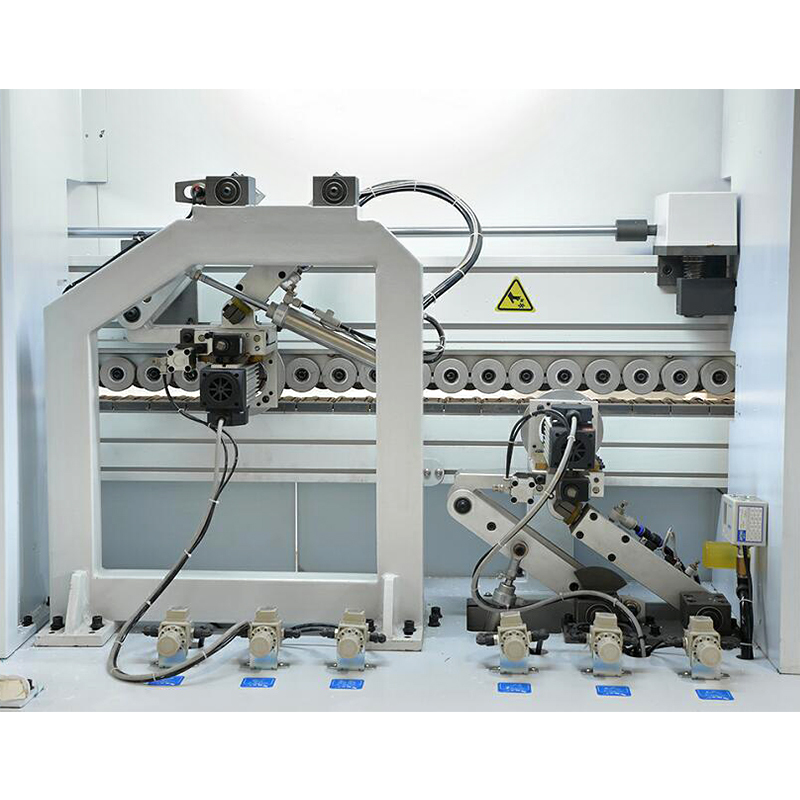

- 0.37KW*2 HIGH FREQUENCY MOTOR FOR CORNER TRIM

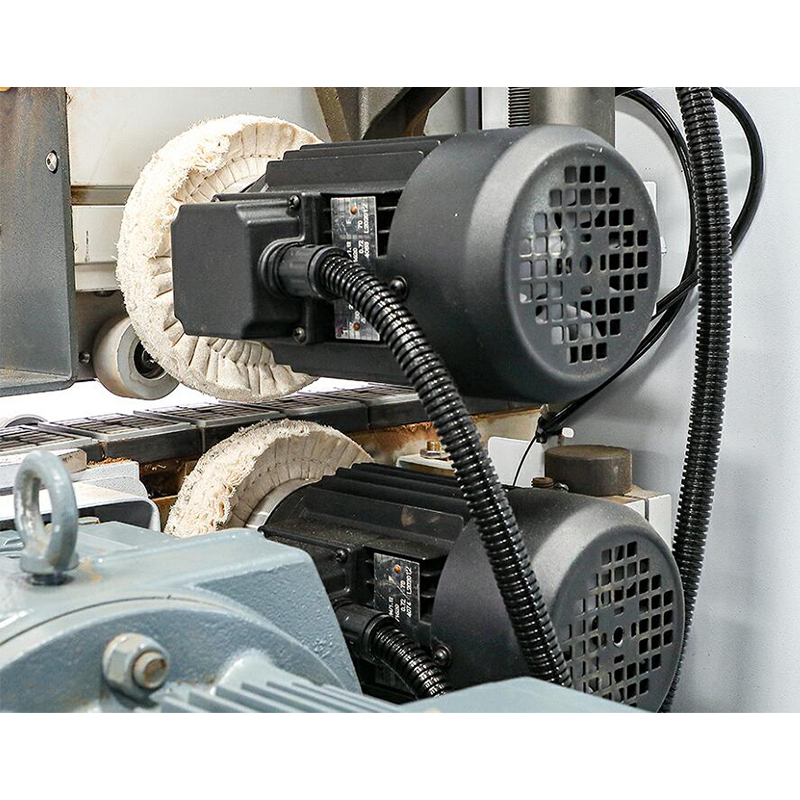

- TWO INDEPENDENT MOTORS EQUIPPED WITH BUFFING WHEELS
| Model | RFE565 | RFE565J | RFE565JC |
| Panel length | ≥150mm | ≥150mm | ≥150mm |
| Panel width | ≥60mm | ≥60mm | ≥60mm |
| Panel thickness | 10-60mm | 10-60mm | 10-60mm |
| Edgeband thickness | 0.4-3mm | 0.4-3mm | 0.4-3mm |
| Feeding speed | 15-23m/min | 15-23m/min | 15-23m/min |
| Total power | 10.8kw | 16kw | 17.6kw |
| Required air pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa |
| Overall dimensions | 4500*900*1600mm | 5600*900*1600mm | 6600*900*1600mm |
| Weight | 1600kg | 2000kg | 2300kg |
