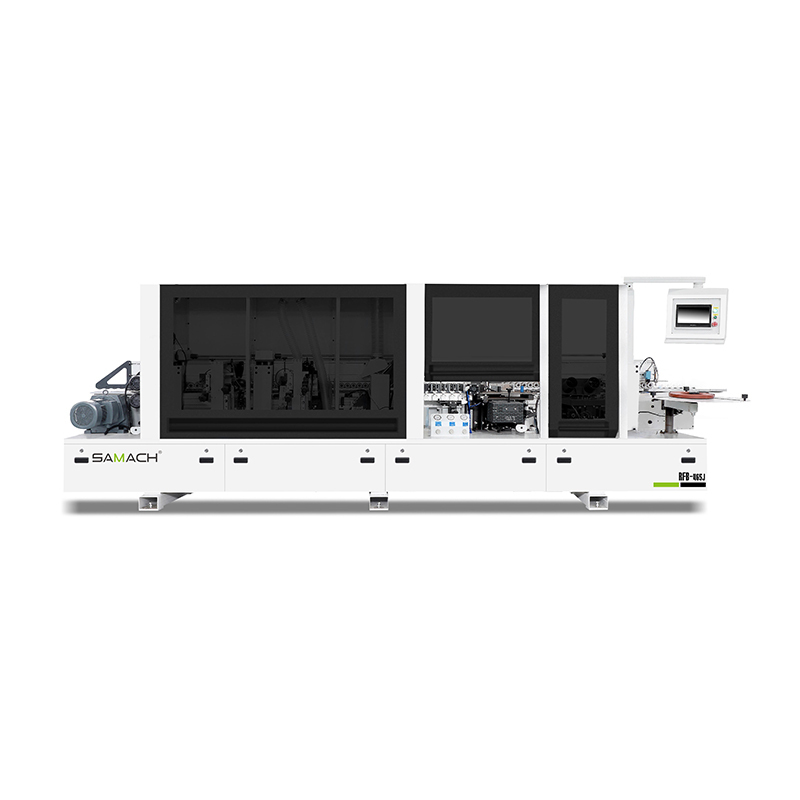

Automatic Edge Banding Machine 465 Series
Automatic Edge Banding Machine 465 Series
Automatic Edge Banding Machine 465 Series
Automatic Edge Banding Machine 465 Series
Automatic Edge Banding Machine 465 Series
Automatic Edge Banding Machine 465 Series
Automatic Edge Banding Machine 465 Series
Automatic Edge Banding Machine 465 Series
Automatic Edge Banding Machine 465 Series
Automatic Edge Banding Machine 465 Series
Automatic Edge Banding Machine 465 Series
Automatic Edge Banding Machine 465 Series
Automatic Edge Banding Machine 465 Series
Automatic Edge Banding Machine 465 Series
Automatic Edge Banding Machine 465 Series
Automatic Edge Banding Machine 465 Series
Automatic Edge Banding Machine 465 Series
Automatic Edge Banding Machine 465 Series
Automatic Edge Banding Machine 465 Series
Automatic Edge Banding Machine 465 Series
Automatic Edge Banding Machine 465 Series
1/7

Automatic Edge Banding Machine 465 Series

Automatic Edge Banding Machine 465 Series

  • EDGE CUTTING CYLINDER IS CONTROLLED BY DOUBLE SOLENOID VALVES
  • 2.2KW*2 HIGH FREQUENCY AND HIGH SPEED MOTOR FOR RE-MILLING

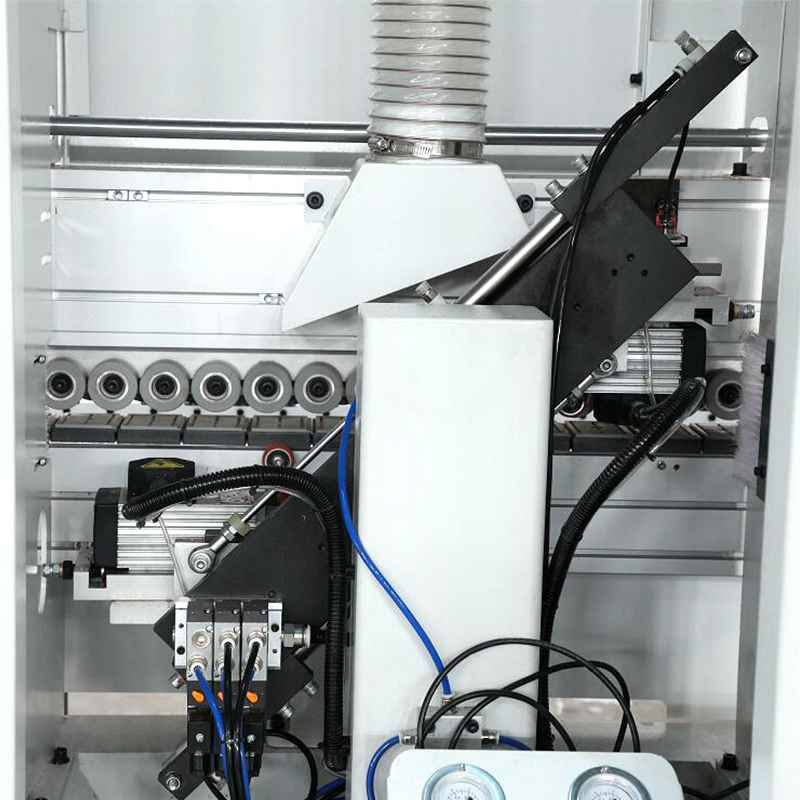

  • 0.37KW*2 HIGH FREQUENCY AND HIGH SPEED MOTOR FOR END TRIM

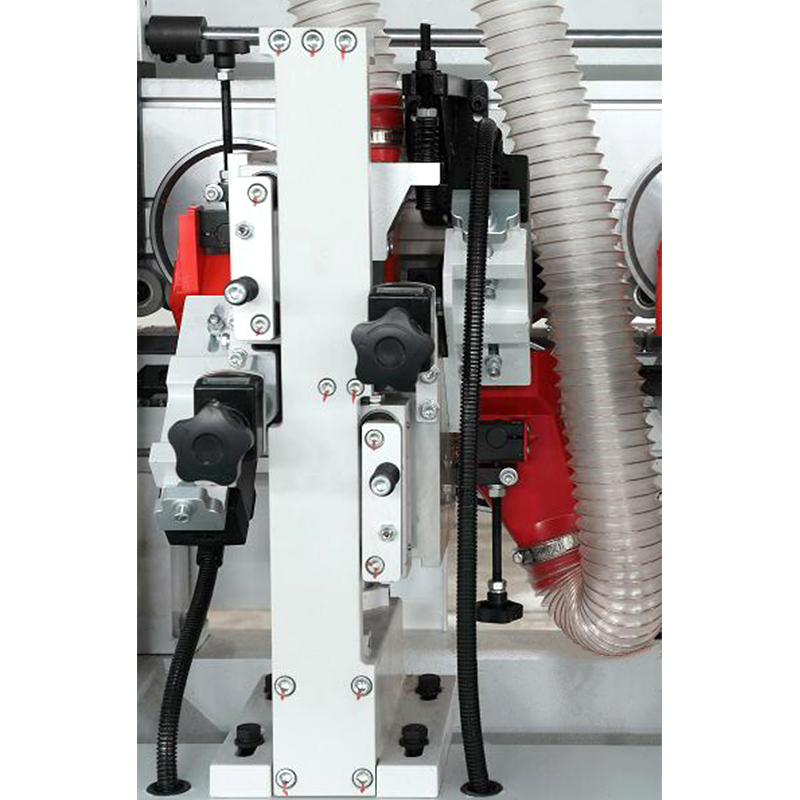

  • 0.75KW*2 HIGH FREQUENCY MOTOR FOR FINE TRIM

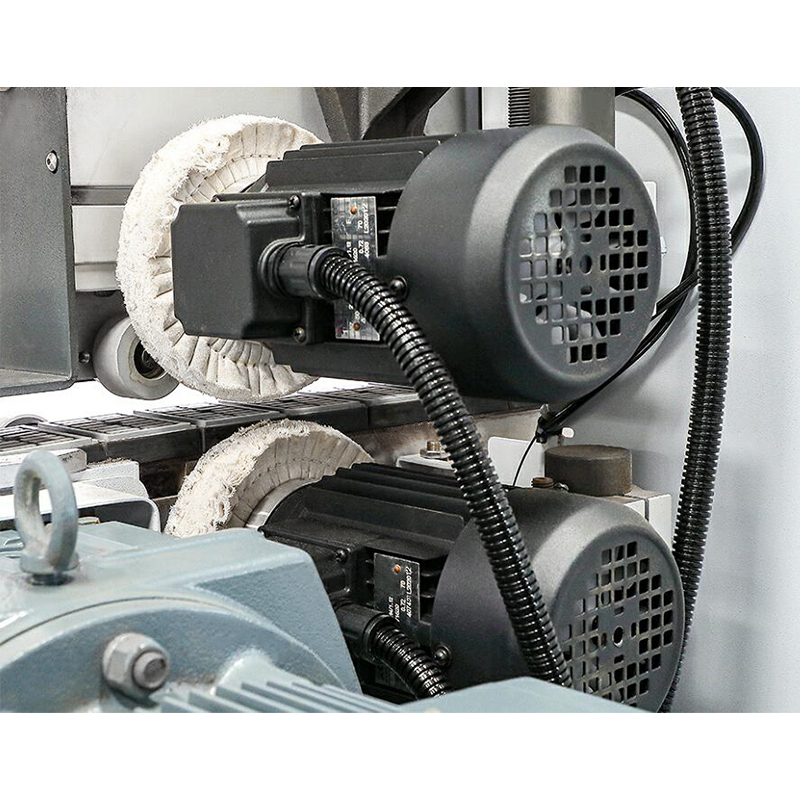

  • TWO INDEPENDENT MOTORS EQUIPPED WITH BUFFING WHEELS
Model RFE465 RFE465J
Panel length ≥150mm ≥150mm
Panel width ≥60mm ≥60mm
Panel thickness 10-60mm 10-60mm
Edgeband thickness 0.4-3mm 0.4-3mm
Feeding speed 15-23m/min 15-23m/min
Total power 9.3kw 14.3kw
Required air pressure 0.6Mpa 0.6Mpa
Overall dimensions 4100*900*1600mm 5100*900*1600mm
Weight 1300kg 1600kg

Automatic Edge Banding Machine 465 Series
