Automatic Bottom Shaft Multi-rip Saw
- MULTI SAW BLADES TO MAKE DIFFERENT WIDTH WORKPIECE

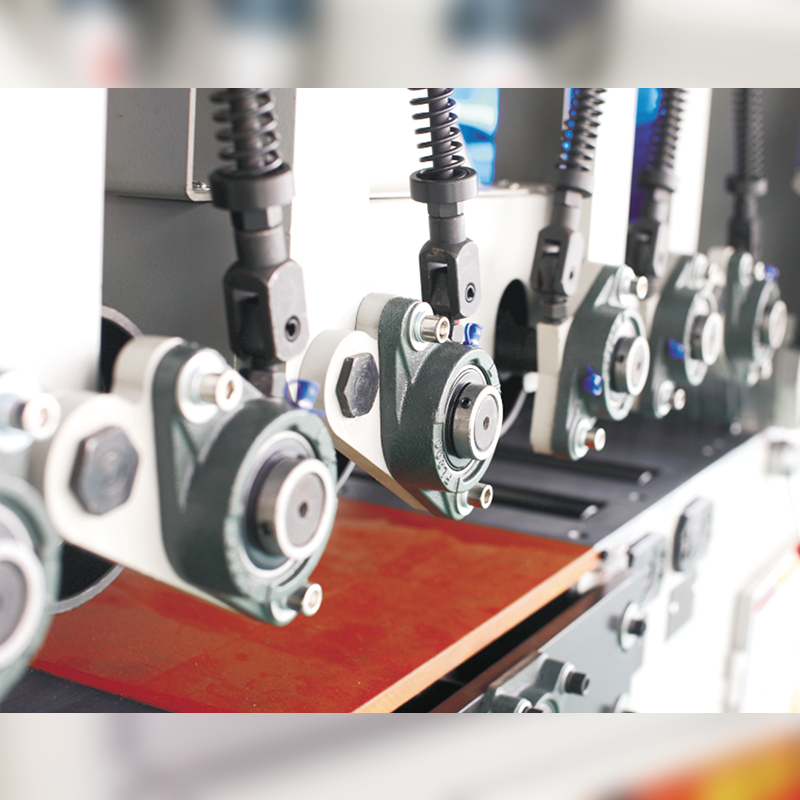

- FEEDING CHAIN ARE MADE BY SPECIAL MATERIAL AND THE STRUCTURE OF THE TEETH IS MORE STRONGER

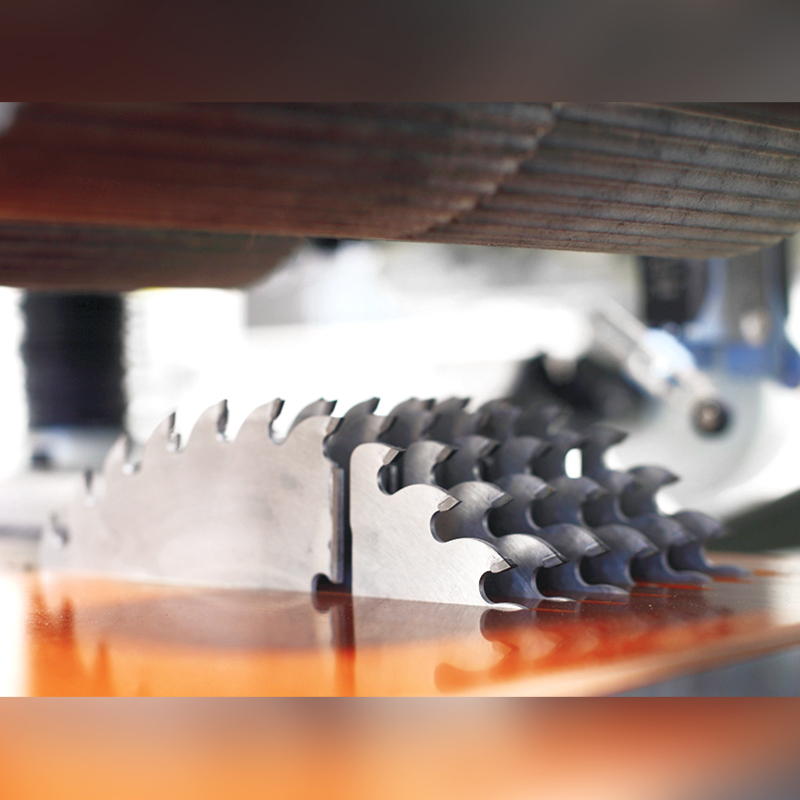

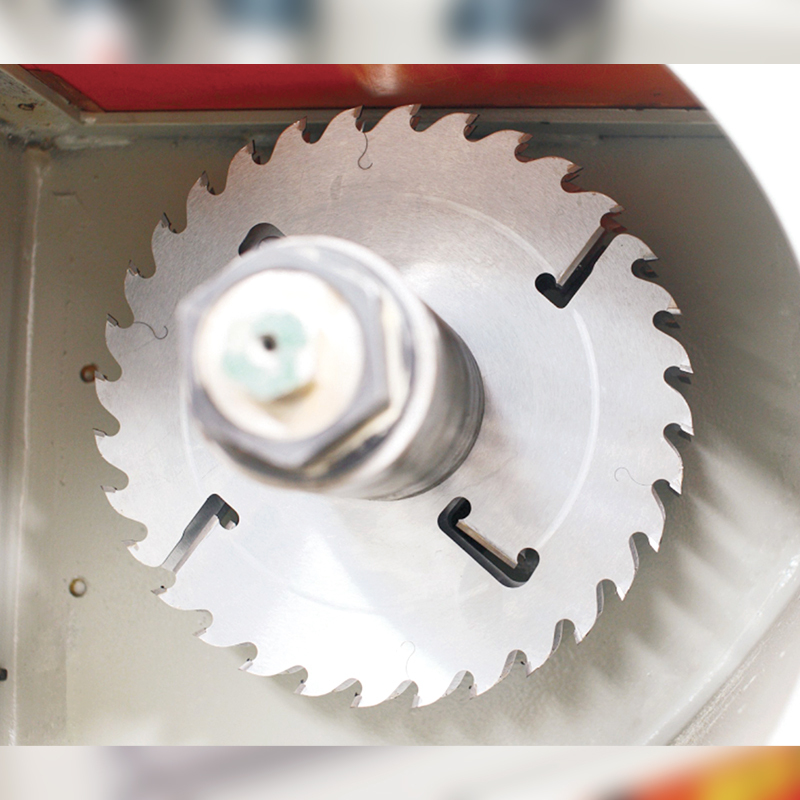

- SAW BLADES ENSURES HIGH PRECISION AND MAKE THE SURFACE OF FINISHED PRODUCT SMOOTH
- AUTO OILING FOR KEY PARTS TO EXTEND THE SERVICE LIFE
| Model | RMJ1432 | RMJ1440 |
| Max. cutting width | 320mm | 400mm |
| Max. cutting thickness | 100mm | 100mm |
| Min. cutting thickness | 10mm | 20mm |
| Min. working length | 250mm | 360mm |
| Spindle speed | 3600r/min | 3600r/min |
| Spindle dia. | Φ70mm | Φ50mm |
| Spindle saw dia. | Φ305-355mm | Φ305-355mm |
| Saw blade thickness | 2.6mm | 2.6mm |
| Feeding speed | 3-18m/min(stepless) | 6-18m/min(stepless) |
| Spindle motor power | 30kw | 37kw |
| Feeding motor power | 3kw | 3kw |
| Lifting motor power | 0.75kw | - |
| Beam lift motor power | - | 0.75kw |
| Saw shaft lift motor power | 0.75kw | 0.75kw |
| Total power | 34.5kw | 41.5kw |
| Air pressure | 0.6Mpa | 0.6Mpa |
| Overall size | 2700*1200*1700mm | 2600*1300*1600mm |
| Weight | 1800kg | 1900kg |
