1/11

Auto Tool Change CNC Router Line

Auto Tool Change CNC Router Line

  • AUTOMATIC LOADING AND UNLOADING WITH BARCODE PRINTER
  • ADAPTS DXF MPR XML COMMON FURNITURE FORMAT
  • 9KW SPINDLE + 8 ATC + 9 DRILLING BLOCKS
  • JAPAN YASKAWA 850W SERVO AND DRIVER
  • SYNTEC/NCSTUDIO COMPUTER CONTROL SYSTEM

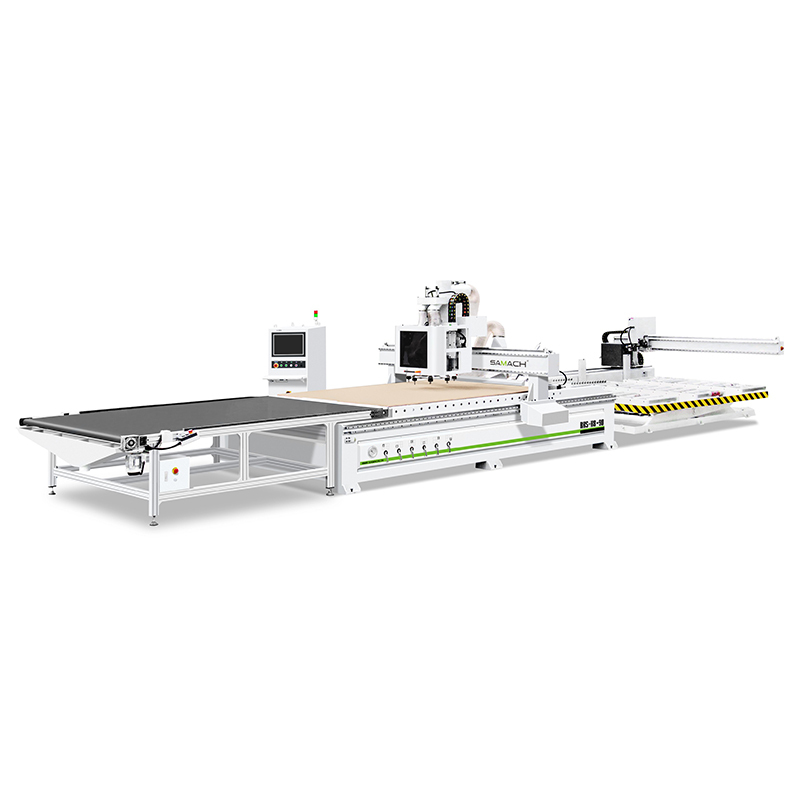

Model RKS-K8+9V
Work stroke 1300*2500*180mm

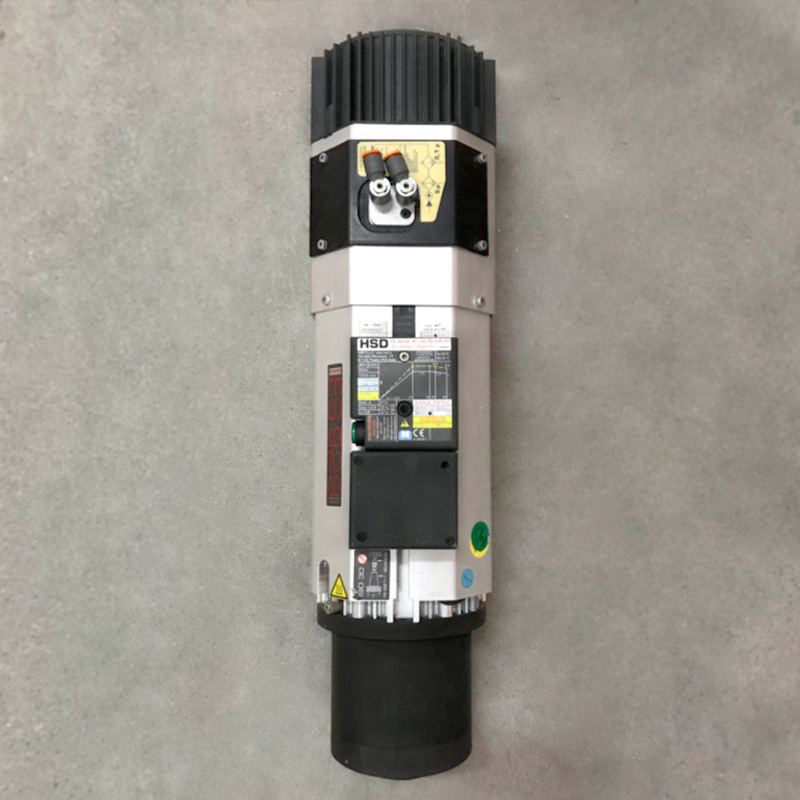

Spindle Brand HQD 9.0KW auto tool change
Spindle Speed 18000r/min
Drive system Japan Yaskawa 850W servo drive

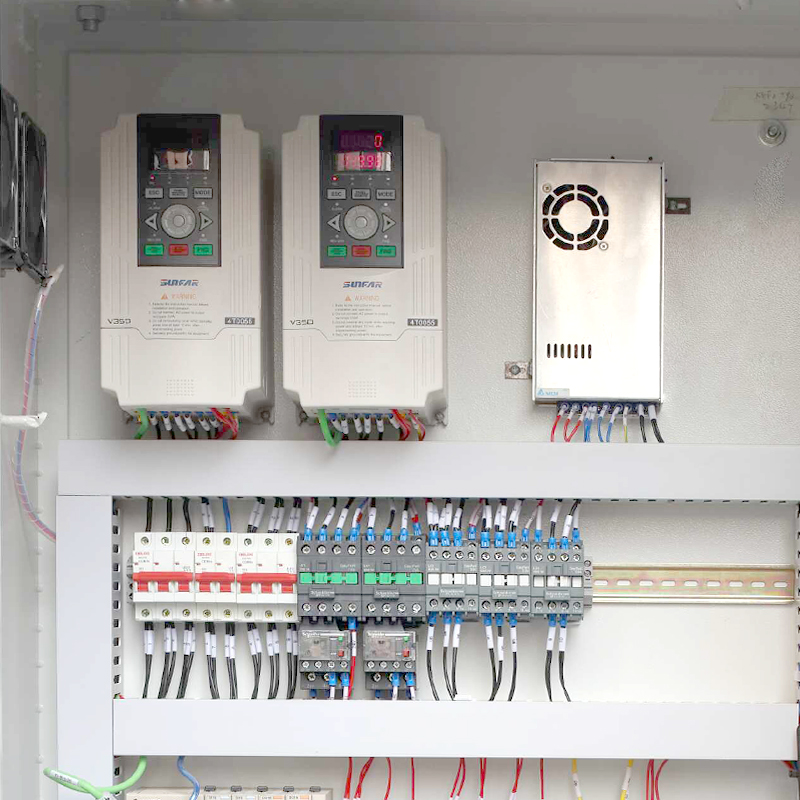

Inverter Sunfar 11KW
Guide rail X/Y/X axis 25mm
Positioning cylinder X axis 2 sets
Positioning bar Y axis Installed in two sides of Y axis
PVC vacuum adsorption Total 6 areas, 2 holes in each area
Vacuum Pump Domestic water cycle 5.5kw*2 sets

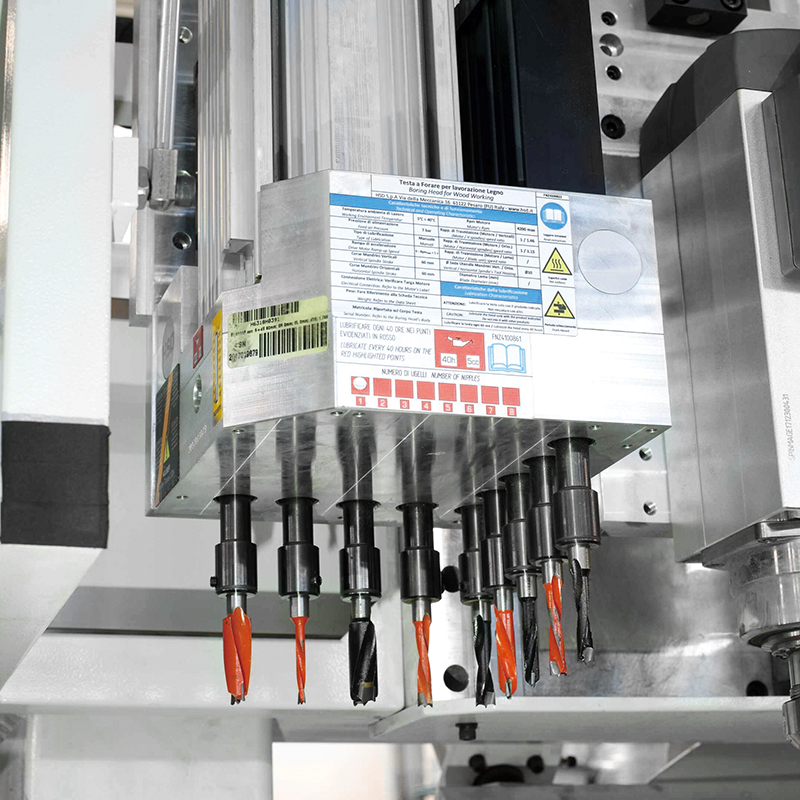

Drill group HQD 5+4 vertical

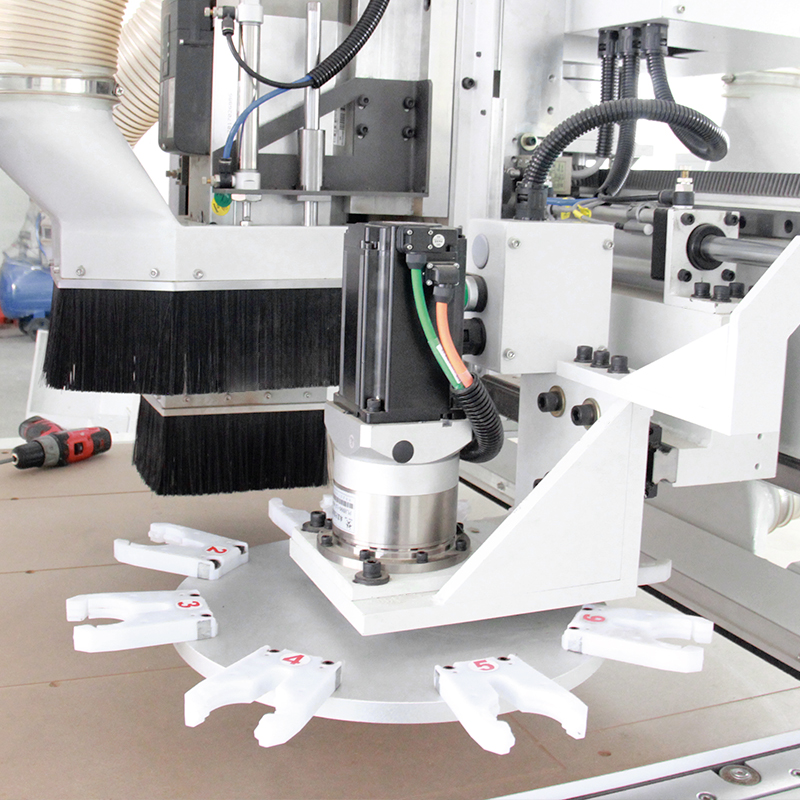

Tool change device "8 tool automatic change(Disc type)", with 8 ISO tool holder
Reducer Helical gear reducer, 2m rack
Pushing device Auto loading, unloading device
(lifting worktable and belt conveyor platform)

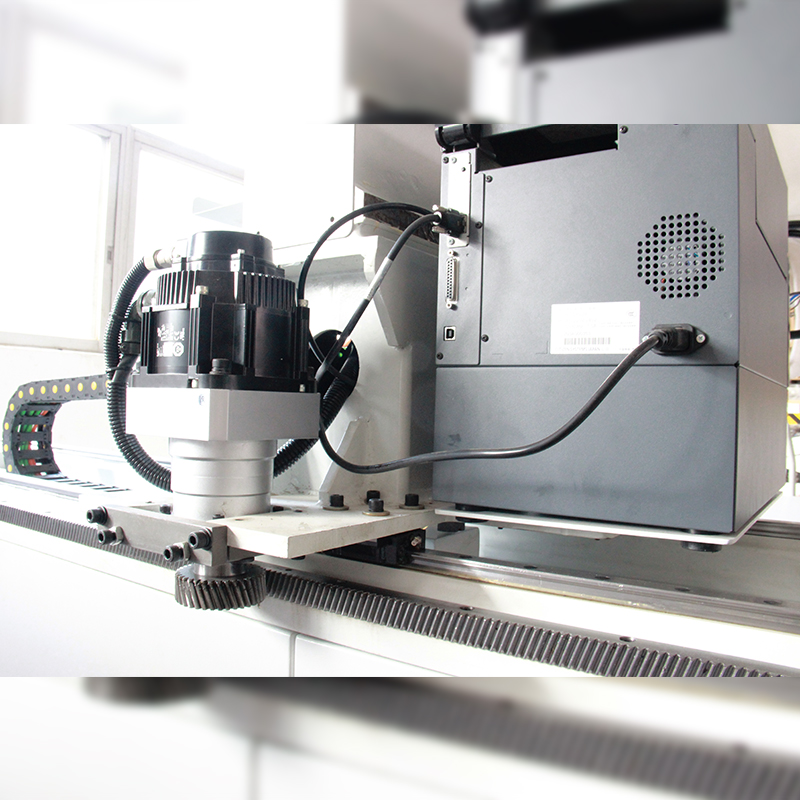

Label Automatic label printer
Max. Idling speed
Max. work speed X/Y axis: 25m/min, Z axis: 10m/min
Operation instruction G-code, *.NC
Operation system Syntec FC computer control system
(display monitor and handwheel)

Auto Tool Change CNC Router Line
