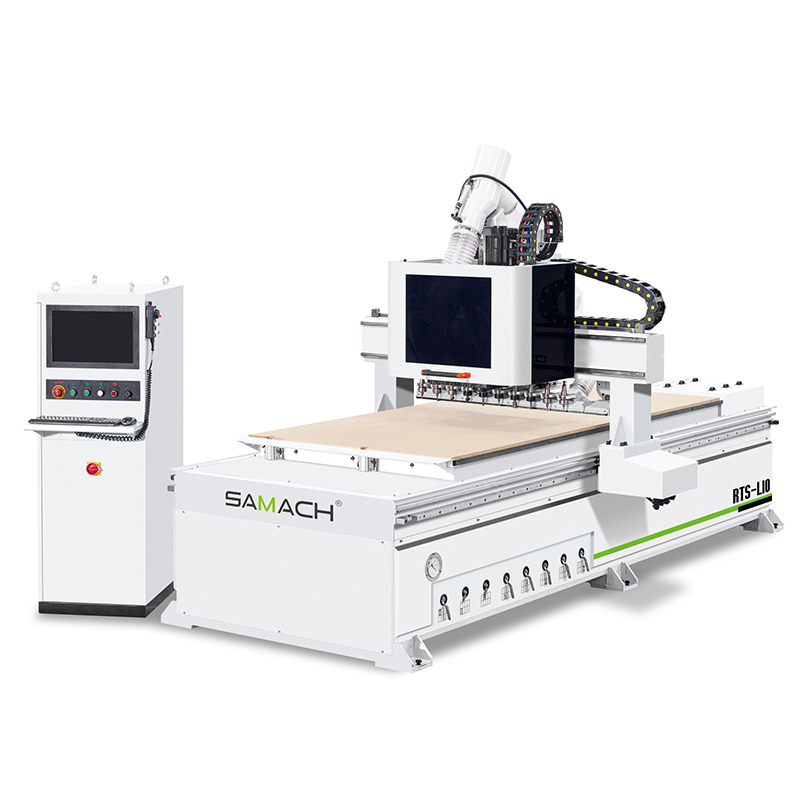

ATC CNC Router with Straight Tool Magazine

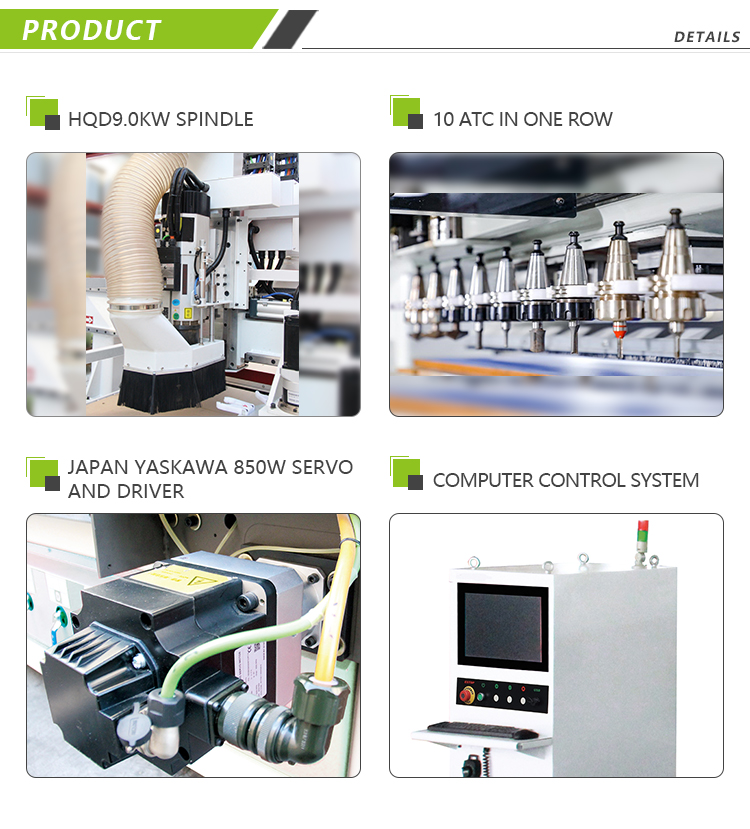

- HQD 9KW SPINDLE
- VACUUM TABLE WORK STROKE: 1300*2800*50MM

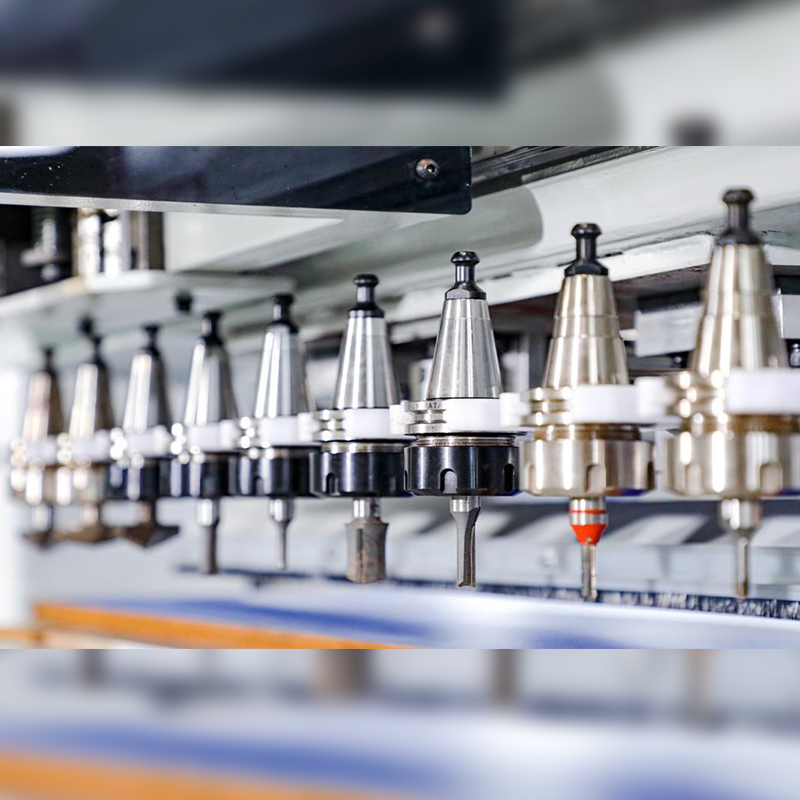

- 10 ATC MAGAZINE IN ROW
- JAPAN YASKAWA SERVO AND DRIVER
- 11KW FULLING INVERTER
- SYNTEC/NCSTUDIO COMPUTER CONTROL SYSTEM
- 7.5KW WATER PUMP
- ADAPTS DXF MPR XML COMMON FURNITURE FORMAT
| Model | RTS-L10 |
| Work stroke | 1300*5000*50mm |
| Spindle Brand | HQD 9KW |
| Spindle Speed | 18000r/min |
| Drive system | Japan Yaskawa 850W servo drive |
| Inverter | Fulling 11KW |
| Guide rail X/Y/X axis | 25mm |
| Positioning cylinder X axis | 4sets |
| PVC vacuum adsorption | Total 6 areas, 2 holes in each area |
| Vacuum Pump | Domestic water cycle 7.5kw |
| Reducer | Helical gear reducer, 2m rack |
| Max. Idling speed | X/Y axis: 75m/min, Z axis: 15m/min |
| Max. work speed | X/Y axis: 25m/min, Z axis: 10m/min |
| Total power | 21KW |
| Work voltage | 380V 50HZ 3P |
| Operation instruction | G-code, *.NC |
| Operation system | SYNTEC FC computer control system (display monitor and handwheel) Other control system is optional |
