ATC CNC Router with Round Tool Magazine

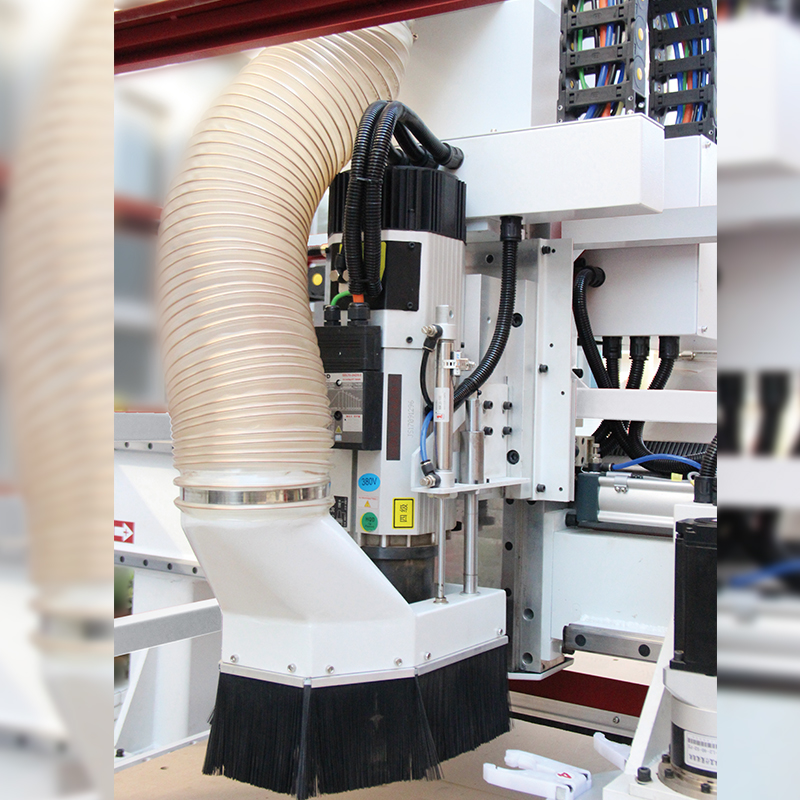

  • HQD 9KW SPINDLE
  • VACUUM TABLE WORK STROKE: 1300*2800*50MM

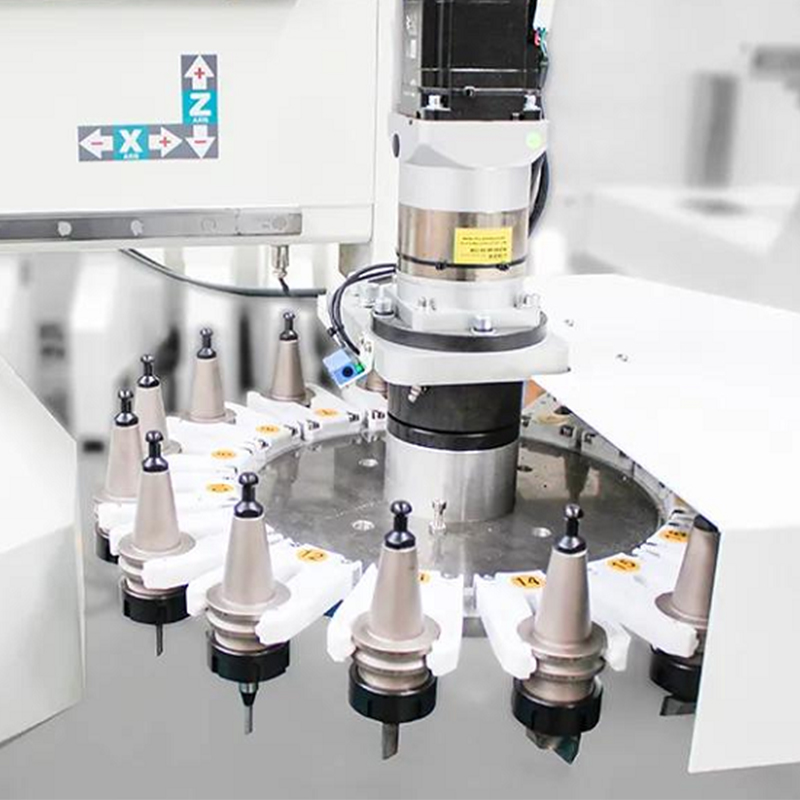

  • 8/16 ROUND ATC MAGAZINE

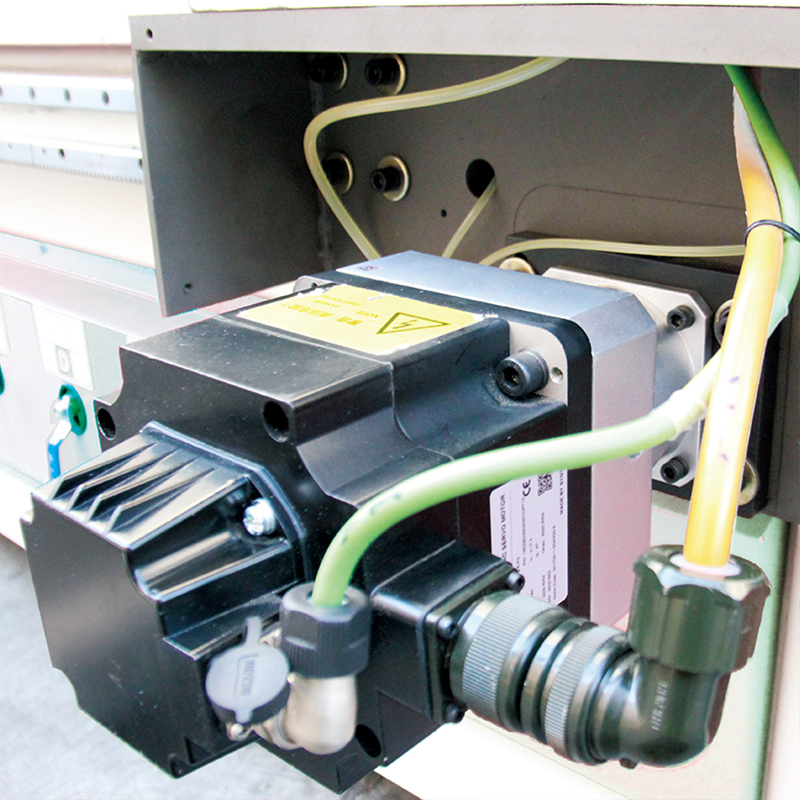

  • JAPAN YASKAWA SERVO AND DRIVER

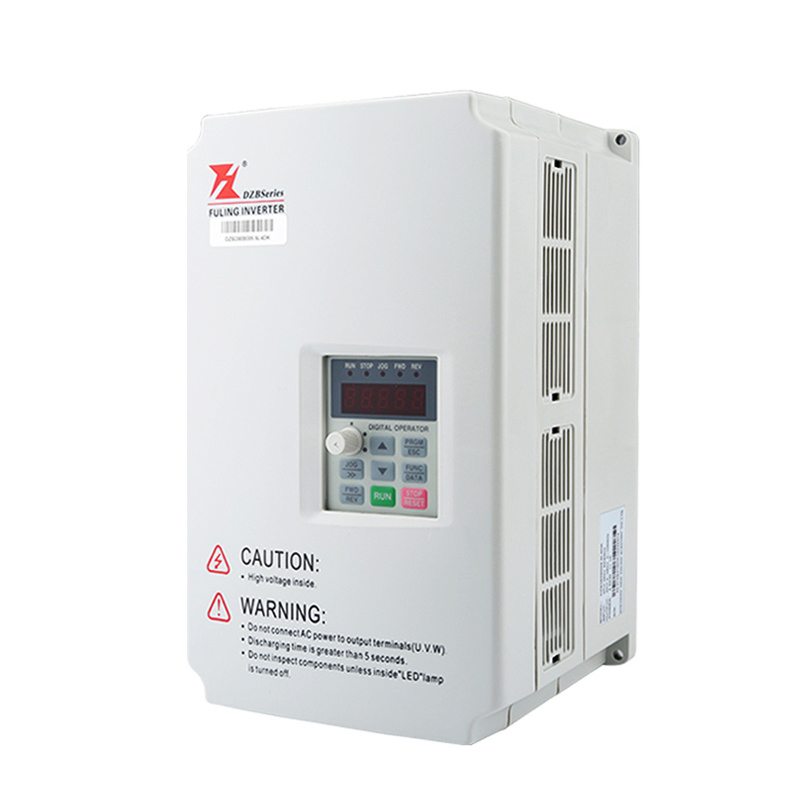

  • 11KW FULLING INVERTER

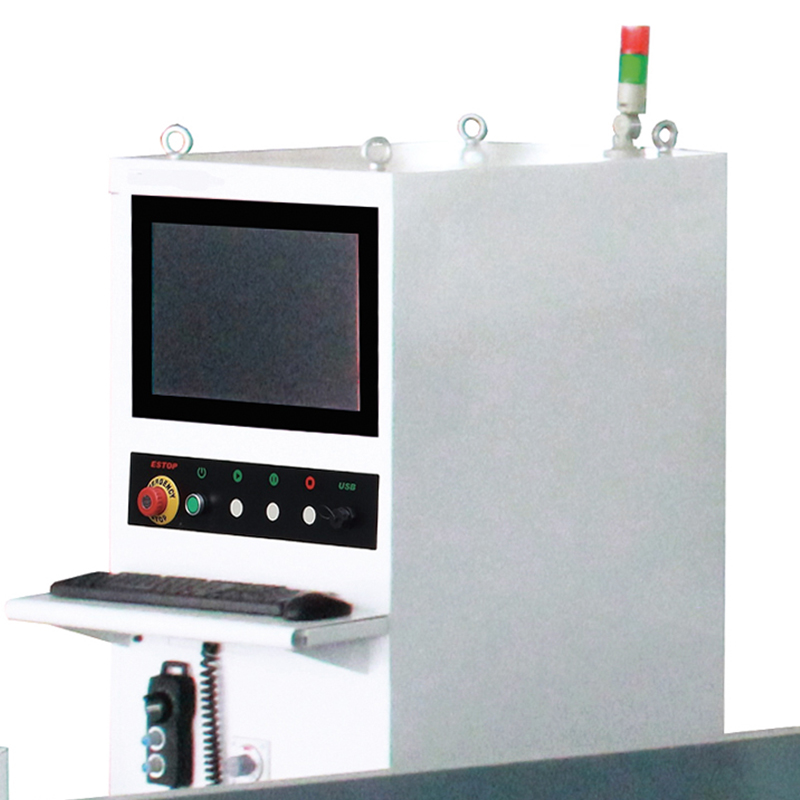

  • SYNTEC/NCSTUDIO COMPUTER CONTROL SYSTEM
  • 7.5KW WATER PUMP
  • ADAPTS DXF MPR XML COMMON FURNITURE FORMAT

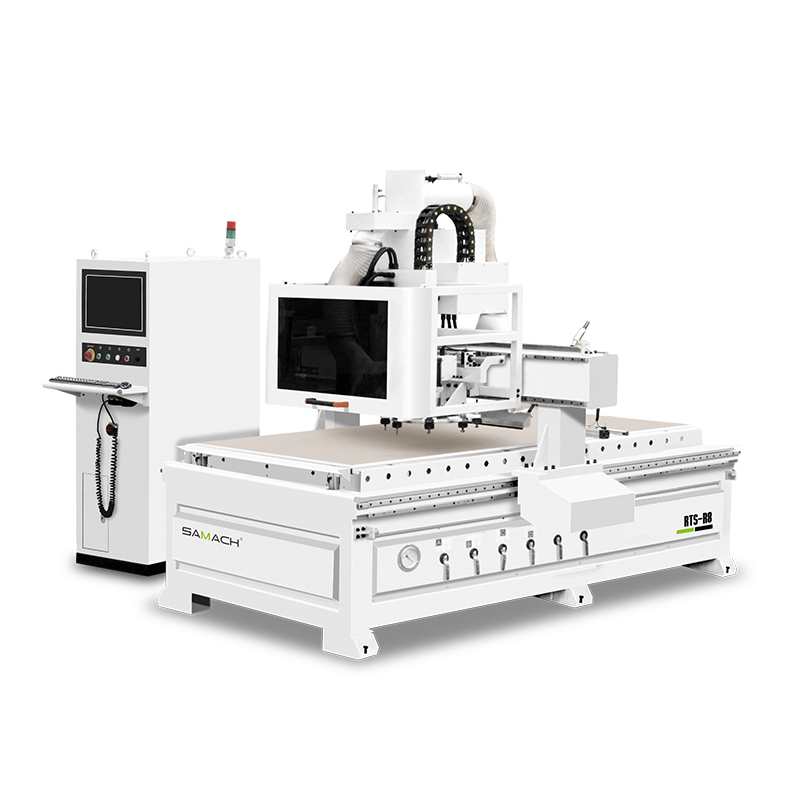

Model RTS-R8 RTS-R16
Work stroke 1300*5000*50mm 1300*5000*50mm
Spindle Brand HQD 9KW HQD 9KW
Spindle Speed 18000r/min 18000r/min
Drive system Japan Yaskawa 850W servo drive Japan Yaskawa 850W servo drive
Inverter Fulling 11KW Fulling 11KW
Guide rail X/Y/X axis 25mm 25mm
Positioning cylinder X axis 2sets 4sets
Positioning bar Y axis Installed in two sides of Y axis Installed in two sides of Y axis
PVC vacuum adsorption Total 6 areas, 2 holes in each area Total 6 areas, 2 holes in each area
Vacuum Pump Domestic water cycle 7.5kw Domestic water cycle 7.5kw
Reducer Helical gear reducer, 2m rack Helical gear reducer, 2m rack
Max. Idling speed X/Y axis: 75m/min, Z axis: 15m/min X/Y axis: 75m/min, Z axis: 15m/min
Max. work speed X/Y axis: 25m/min, Z axis: 10m/min X/Y axis: 25m/min, Z axis: 10m/min
Total power 25KW 28KW
Work voltage 380V 50HZ 3P 380V 50HZ 3P
Operation instruction G-code, *.NC G-code, *.NC
Operation system SYNTEC FC computer control system
(display monitor and handwheel)
Other control system is optional
SYNTEC FC computer control system
(display monitor and handwheel)
Other control system is optional
