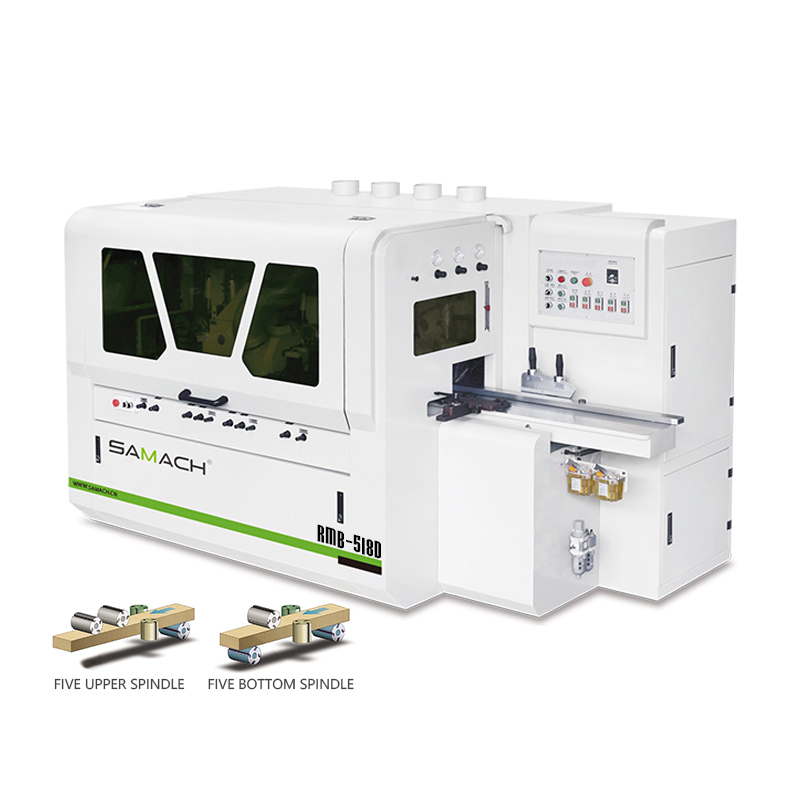

5 Spindles Four Sides Moulder

  • DIFFERENT WIDTH CAN BE CHOOSED. 180/210/230MM
  • DIFFERENT CUTTERS ARE OPTIONAL FOR 5 SPINDLES
  • THE SIDE FEED DEVICE WHICH COULD ENSURE INFEED SMOOTHLY
  • THE FLAT TOOTH TYPE STEEL ROLLER WITH SPECIAL TREATMENT ARE DURABLE IN USE
  • THERE ARE SECTIONS FOR ADJUSTING PRESSURE ACCORDING TO REQUEST
  • THE SPEED OF FEEDING IS CONTROLLED IN FREQUENCY
  • HEAVY DUTY GEAR BOX AND CARDAN SHAFT DRIVEN FEEDING SYSTEM
Model RMB518U RMB518D
Working width 25-180mm 25-180mm
Working thickness 8-130mm 8-130mm
Min working length
(Intermittent /Continuous)
580/300mm 580/300mm
Blade diameter Ф40mm Ф40mm
Feeding speed 6-35m/min 6-35m/min
Main spindle speed 7000r/min 7000r/min
Trimming blade diameter Φ145/Φ150mm Φ145/Φ150mm
1st lower blade diameter Φ125mm Φ125mm
Left/right blade diameter Φ110-Φ170mm Φ110-Φ170mm
1st upper blade diameter Φ125-Φ160mm Φ125-Φ160mm
2nd upper blade diameter Φ125-Φ160mm -
2nd lower blade diameter - Φ125-Φ180mm
Total motor power 32.75kw 30.75kw
1st lower blade power 4kw 4kw
Left/right blade power 5.5kw 5.5kw
1st upper blade power 5.5kw 5.5kw
2nd upper blade power 7.5kw -
2nd lower blade power - 5.5kw/7.5kw
Feeding motor power 4kw 4kw
Lifting motor power 0.75kw 0.75kw
Pneumatic source pressure 0.6Mp 0.6Mp
Dust outlet diameter 5*Φ150mm 5*Φ150mm
Overall size 3680*1550*1800mm 3150*1550*1800mm
Weight 3200kg 2900kg
