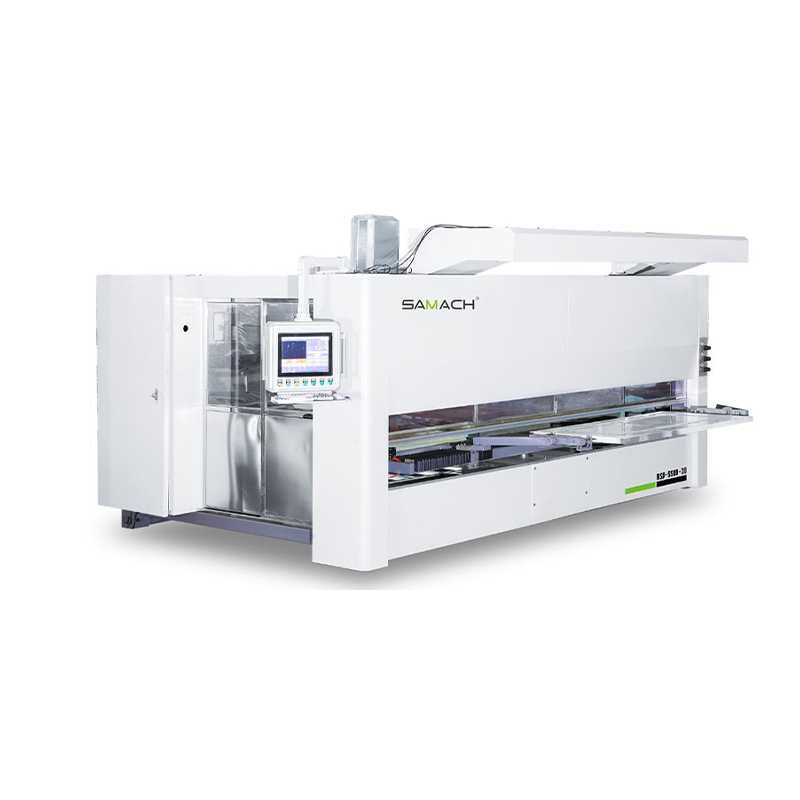

5 Axis Spraying Machine (3D)
| Model | RSP-5000-3D |
| Maxi. work length | 2.4m |
| Maxi. work width | 1.1m (1.2m options) |
| Maxi. work thickness | 0.15m |

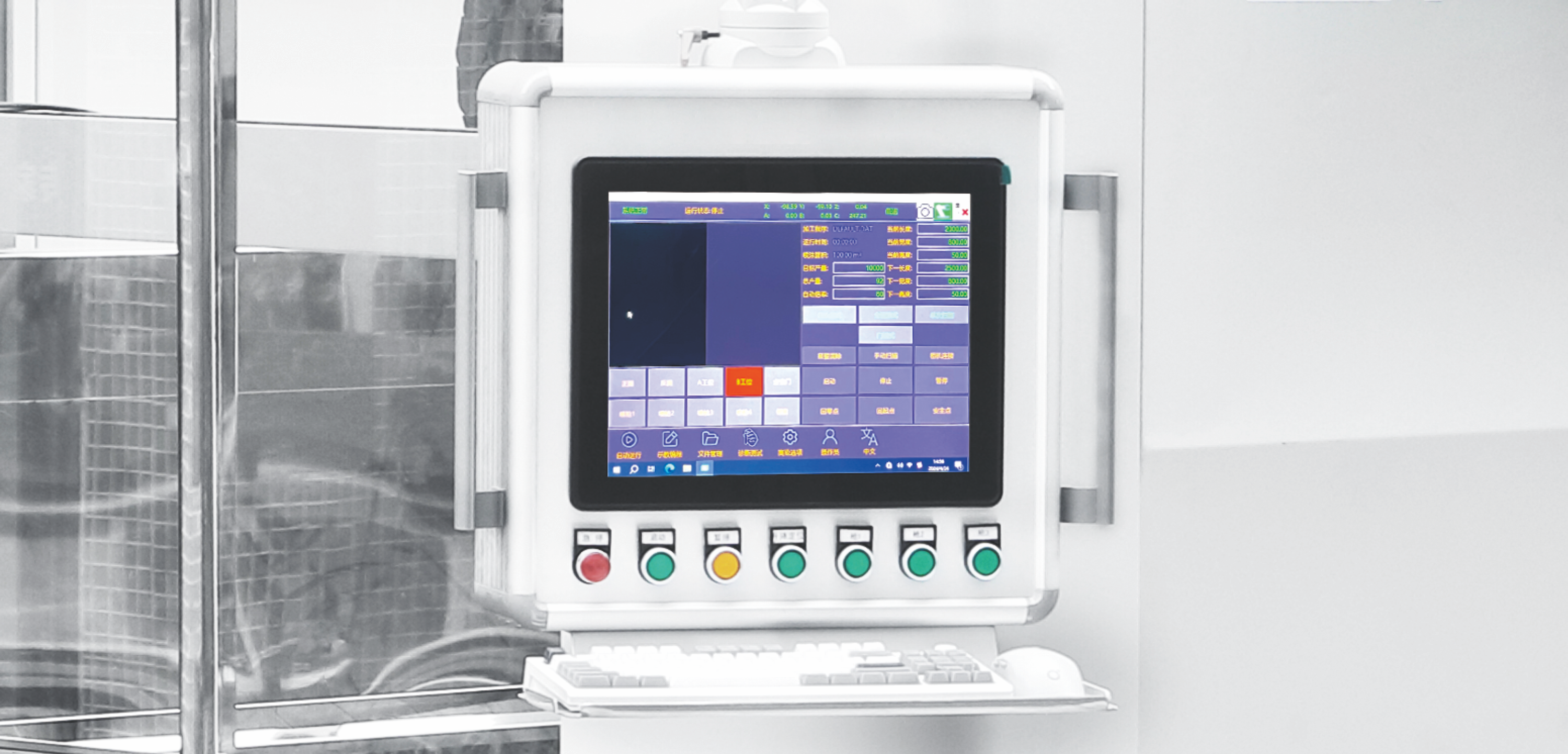

| Controller | Industrial touch computer |
| Spray gun diameter | 0.8/1.0/1.3 |
| Spray gun quantity | 2pcs |
| Air pressure | 0.6MPA |
| Type of paint | PE/PC/PU/UC/NC/UV/water-based |

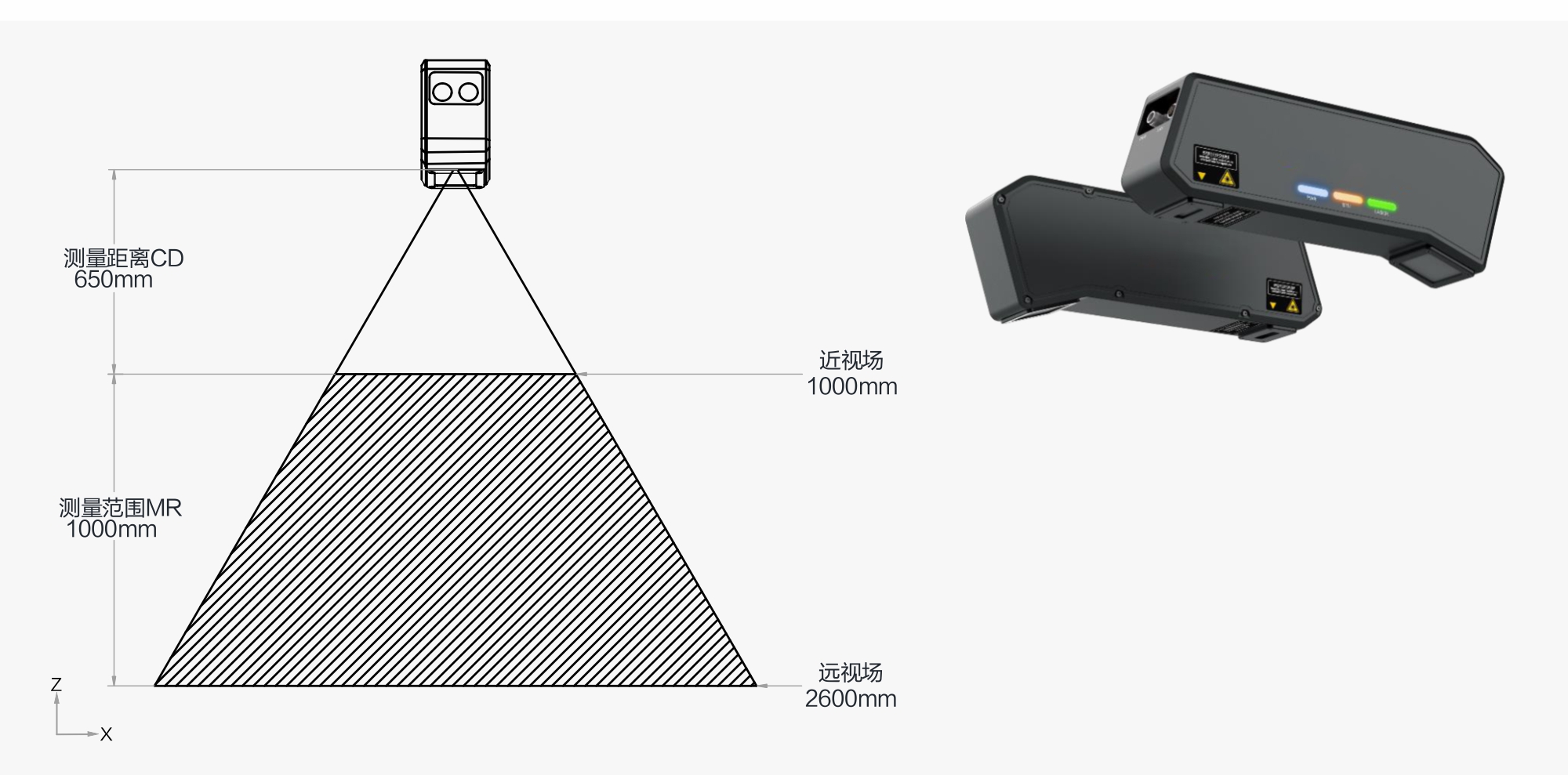

| Scanning mode | Line laser scanning |

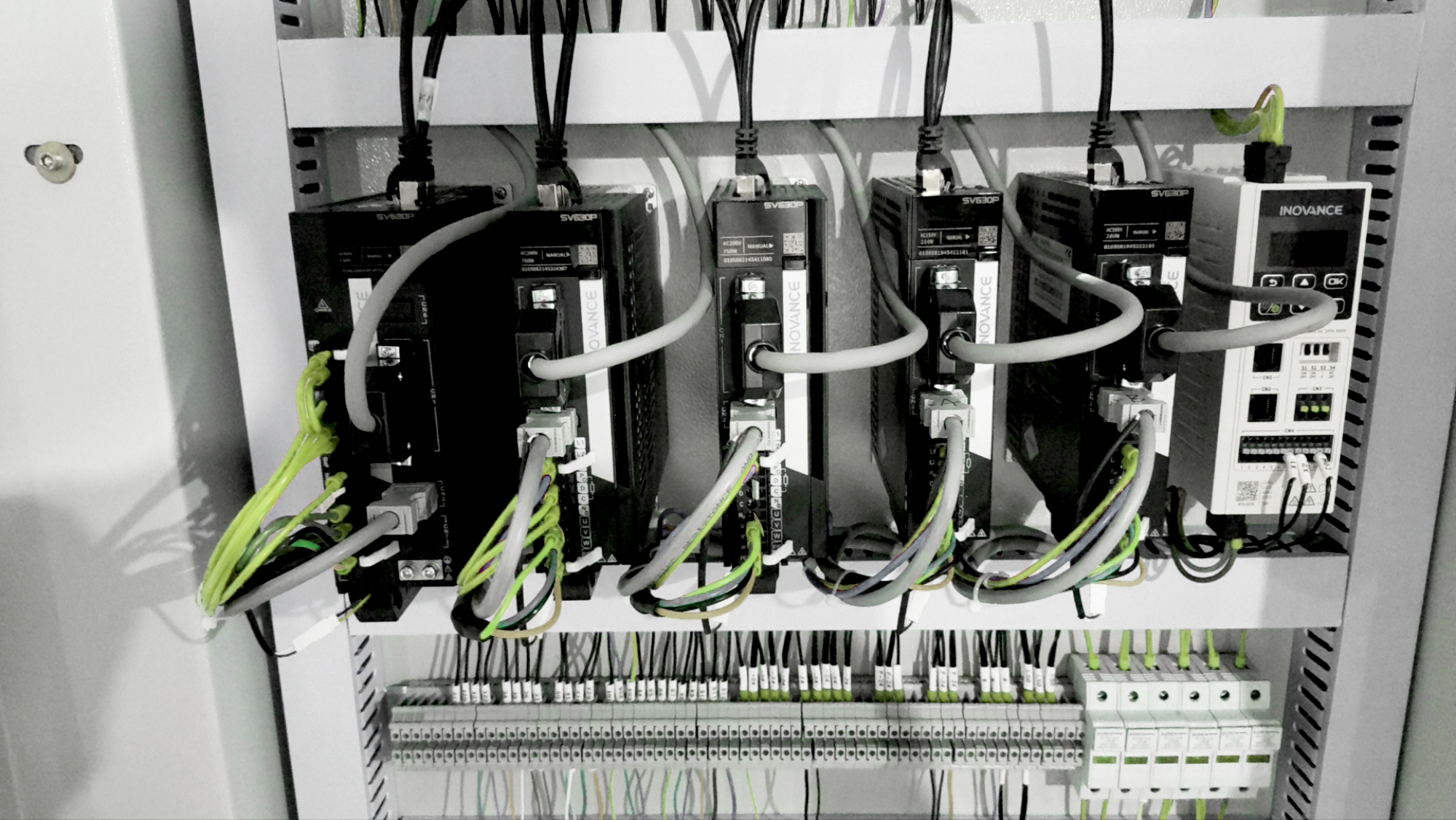

| Scan driven mode | Servo motor module drive |
| Power source | Power supply:380V 50HZ |
| Dimension | 4700*2600*2500mm |
| Weight | 800kg |
