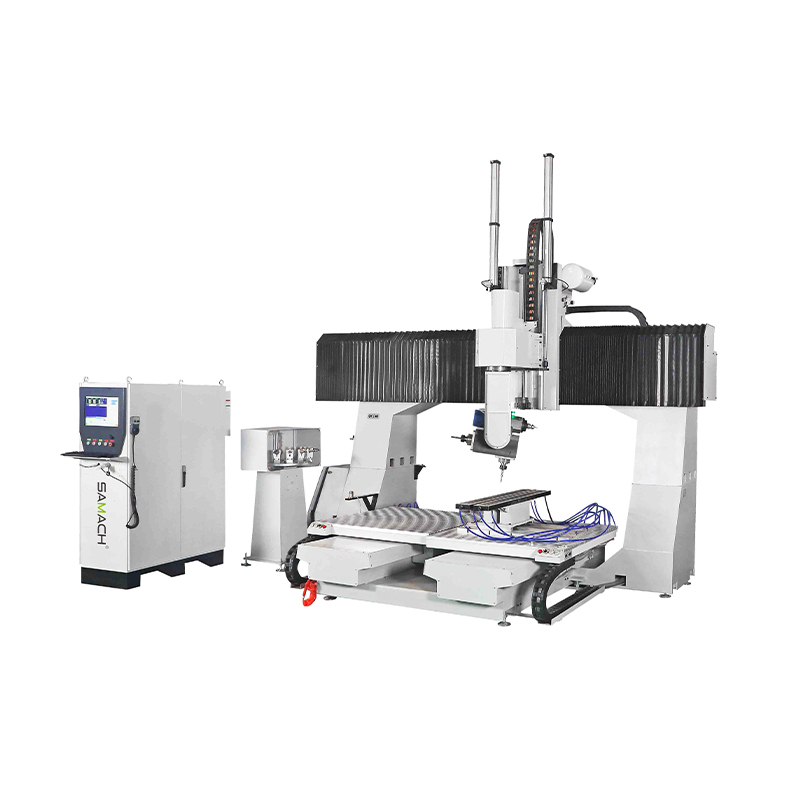

| Model | R-5AT-ATC |
| Work table | 1200mm*1200mm*2pcs |

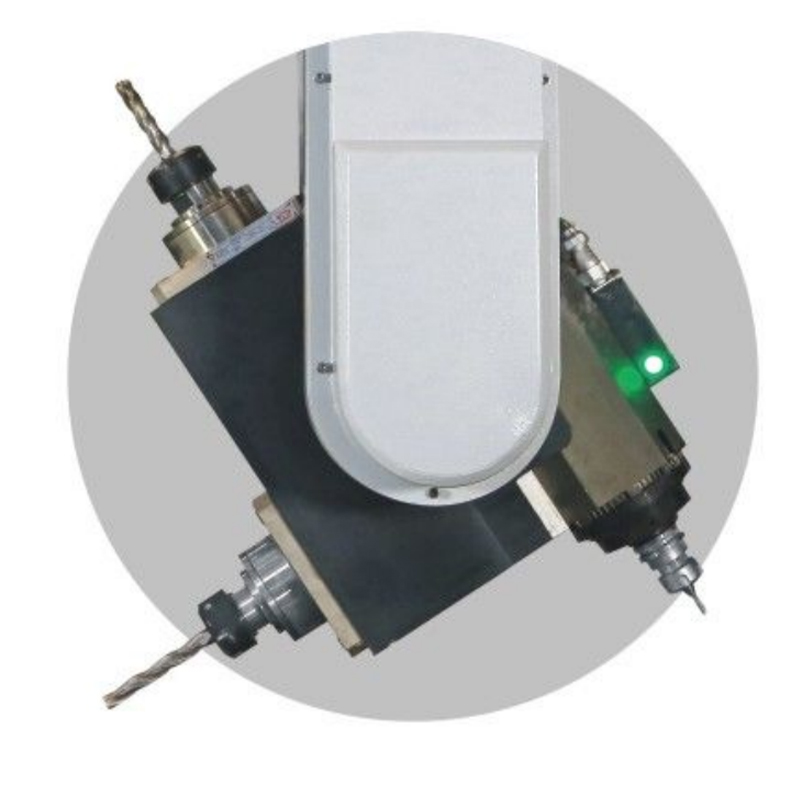

| Spindle power | 12kw+9.6kw*2 |

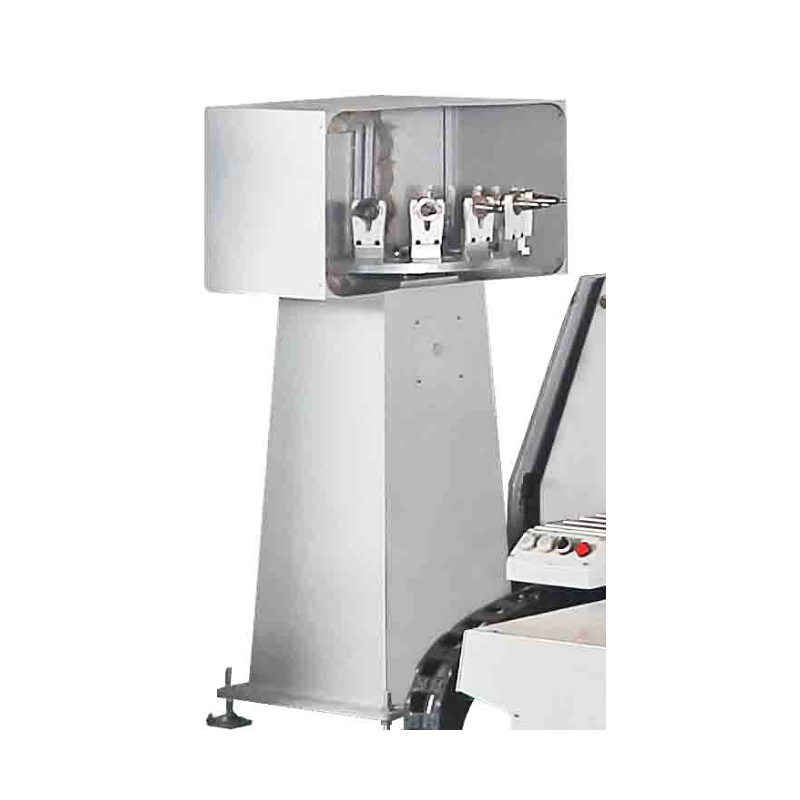

| Tool magazine | 8 tool magazines |
| Gantry height | 900mm |
| Work height stroke | 750mm |
| Inverter | Fulling 15kw inverter |
| Processing file format | NC |
| Workbench accessories | 4 sets of N-150 suction cups and a dry vacuum pump. |
| X,Z axis transmission mode | Inovance 3KW absolute servo drive + TBI screw |
| Y-axis transmission mode | Inovance 0.85KW absolute servo drive + grinding rack transmission |
| A-axis transmission mode | Inovance 0.75KW absolute value servo drive + Japanese reducer |
| C-axis transmission mode | Inovance1.5KW absolute value servo drive + Japanese reducer |
| Max. Moving speed of x/y/z axis | 50m/min |
| Max. processing speed of x/y/z axis | 20m/min |
| Max. Turning speed | 15m/min |
| Processing accuracy | ±0.02mm |
| Repeat positioning accuracy | ±0.05mm |
| Air pressure | 0.6Mpa |
| Machine size | 4300*2300*3800mm |
| Machine weight | 3500kg |
