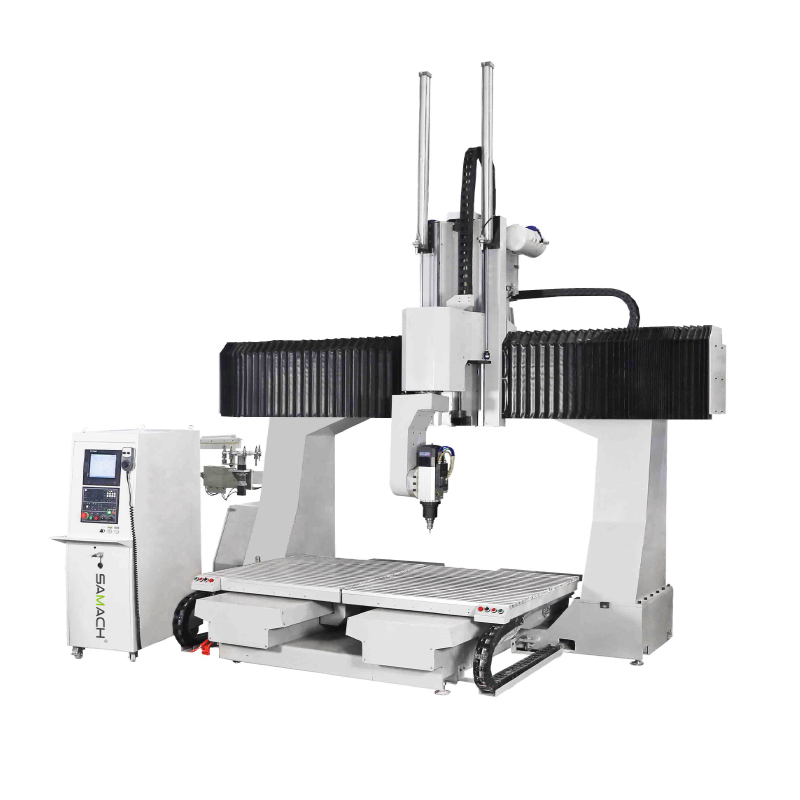

5 Axis CNC Machining Center R-5AD



Model R-5AD
Work table 1200mm*1200mm*2pcs

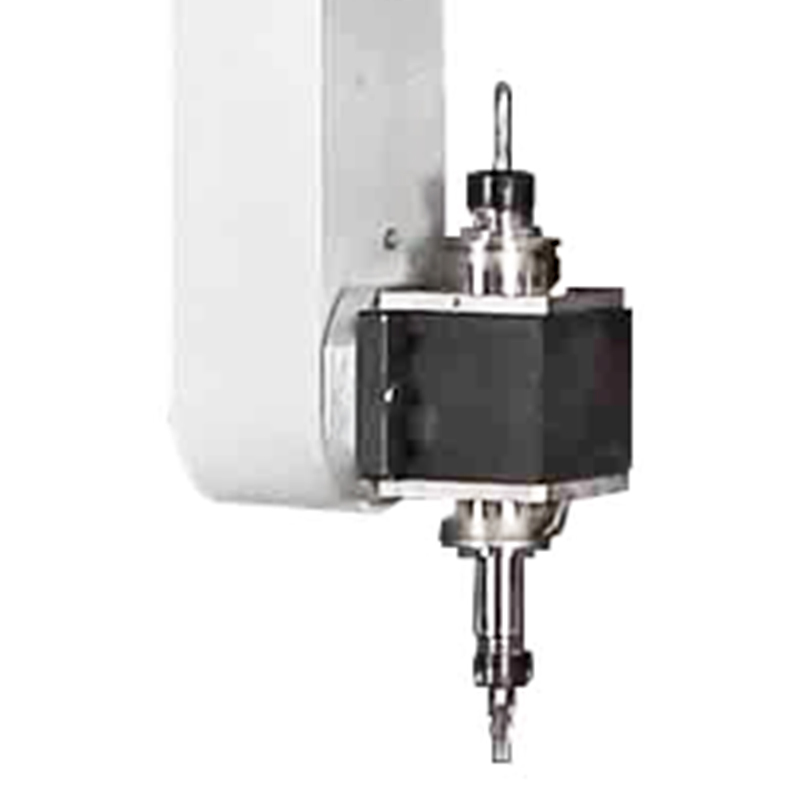

Spindle power 7.5kw double-head spindle
Spindle speed  18000rpm
Gantry height 1100mm
Inverter Fulling 7.5kw inverter
Processing stroke 680mm
Processing file format NC
Workbench accessories 4 sets of N-150 suction cups and a water-cooled vacuum pump.
X-axis transmission mode Inovance 1.8KW absolute servo drive + grinding rack
Y axis transmission mode Inovance 0.85KW absolute servo drive + grinding rack transmission
Z-axis transmission mode Inovance 1.8KW absolute servo drive + grinding rack transmission
A,C-axis transmission mode Inovance 0.75KW absolute value servo drive + RV/harmonic reducer
Max. Moving speed 40m/min
Max. processing speed 20m/min
Max. Turning speed 15m/min
Processing accuracy ±0.02mm
Repeat positioning accuracy ±0.05mm
Air pressure 0.6Mpa
Machine size 3800*2250*4400mm
Machine weight 4300kg

5 Axis CNC Machining Center
