| Model |

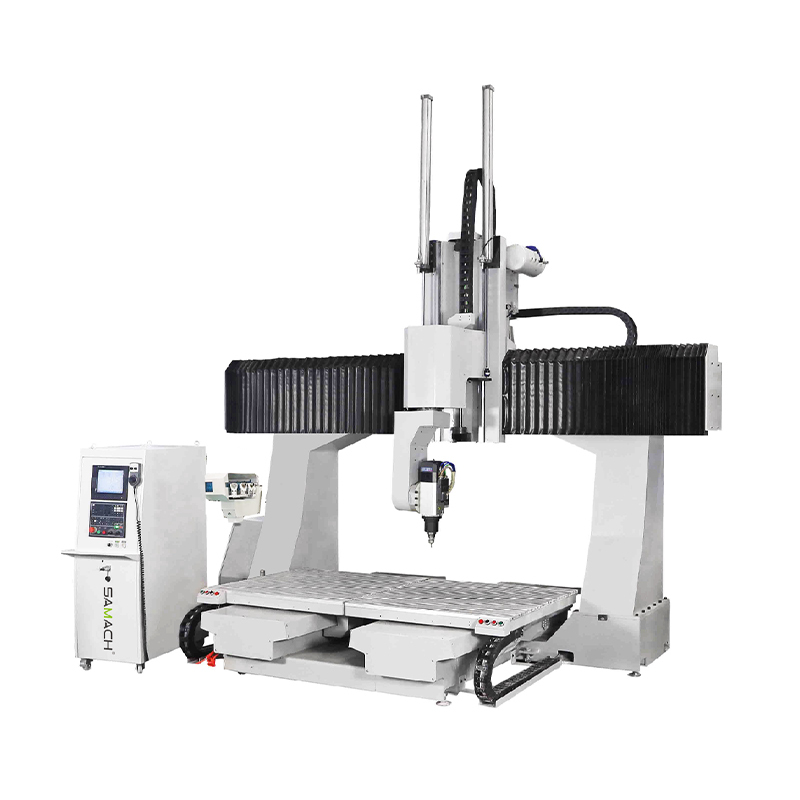

R-5A-ATC |
| Work table |
1200mm*1200mm*2pcs |

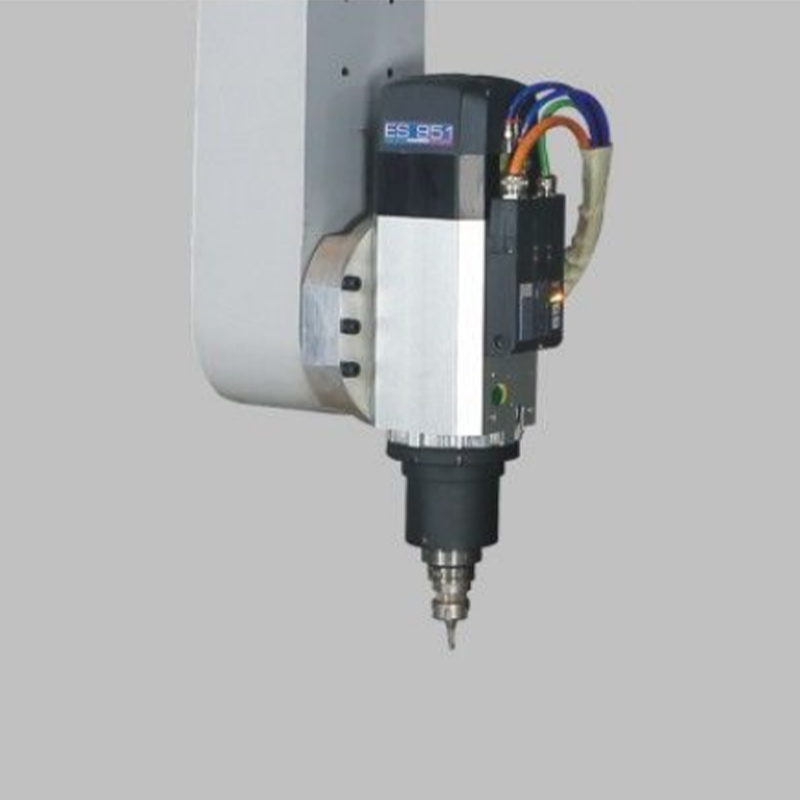

| Spindle power |
12kw |

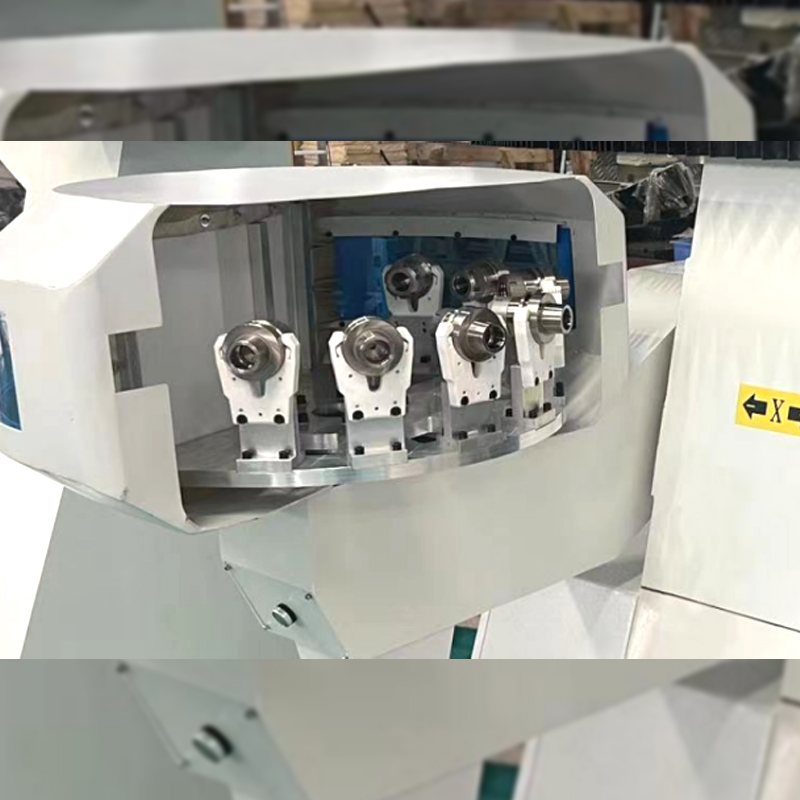

| Tool magazine |
8 tool magazines |
| Gantry height |
900mm |
| Work height stroke |
750mm |
| Inverter |
Fulling 15kw inverter |
| Processing file format |
NC |
| Workbench accessories |
4 sets of N-150 suction cups and a dry vacuum pump. |
| X,Z axis transmission mode |
Inovance 1.8KW absolute servo drive + grinding rack transmission |
| Y-axis transmission mode |
Inovance 0.85KW absolute servo drive + grinding rack transmission |
| A,C-axis transmission mode |
Inovance 0.75KW absolute value servo drive + RV/harmonic reducer |
| Max. Moving speed of x/y/z axis |
50m/min |
| Max. processing speed of x/y/z axis |
20m/min |
| Max. Turning speed |
15m/min |
| Processing accuracy |
±0.02mm |
| Repeat positioning accuracy |
±0.05mm |
| Air pressure |
0.6Mpa |
| Machine size |
4300*2300*3800mm |
| Machine weight |
3500kg |
