5 Axis CNC Center with ATC Magazine RF-5AH-ATC

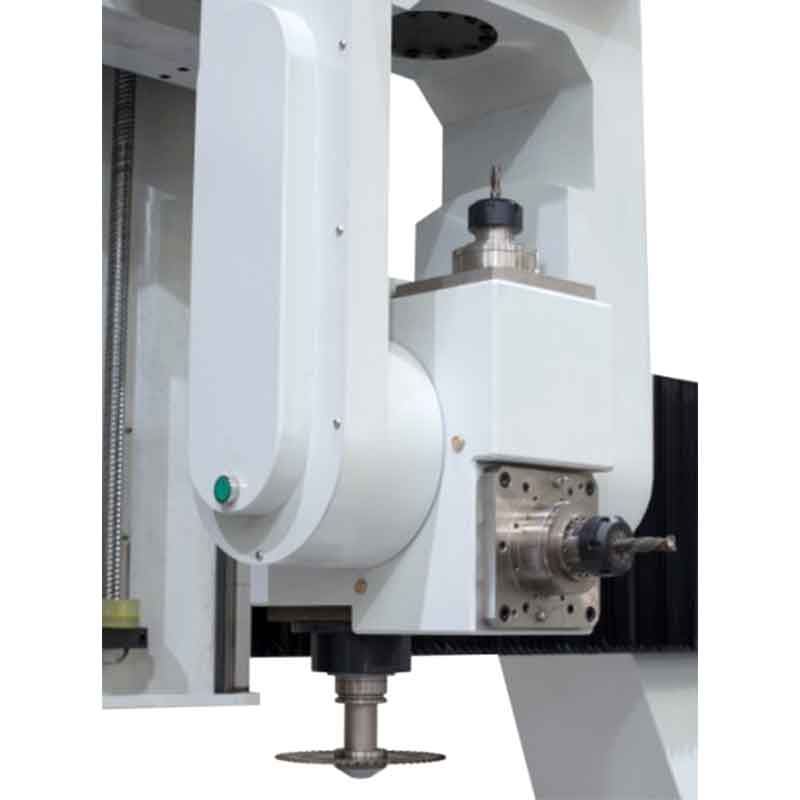

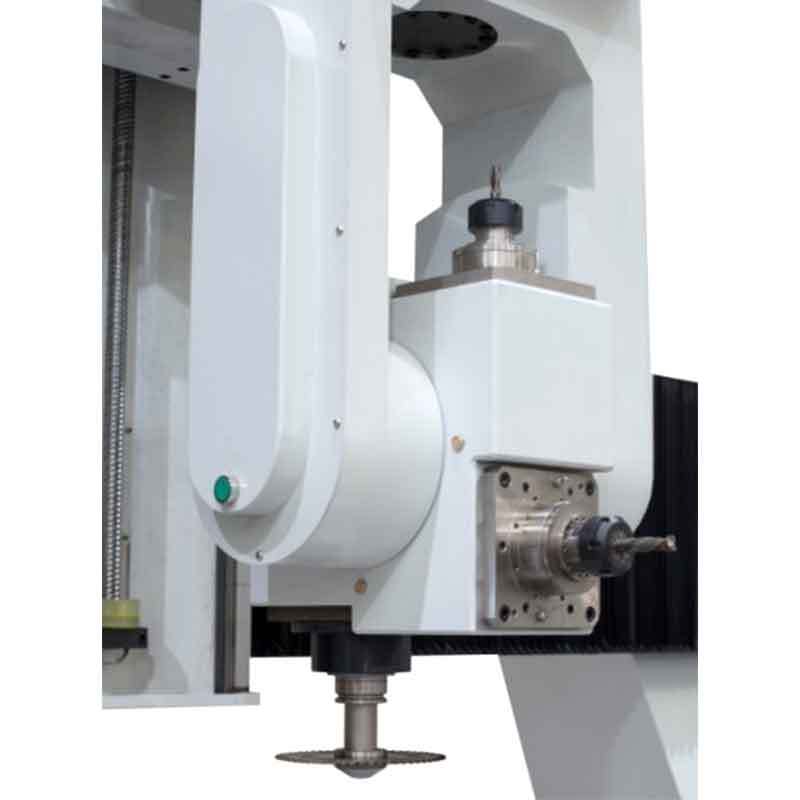

- 3 INDEPENDENT SPINDLES ARE CONTROLLED BY THE COMPUTER TO MOVE AT THE SAME TIME AND CAN DO THE SAME WORK OR DIFFERENT WORK AT THE SAME TIME

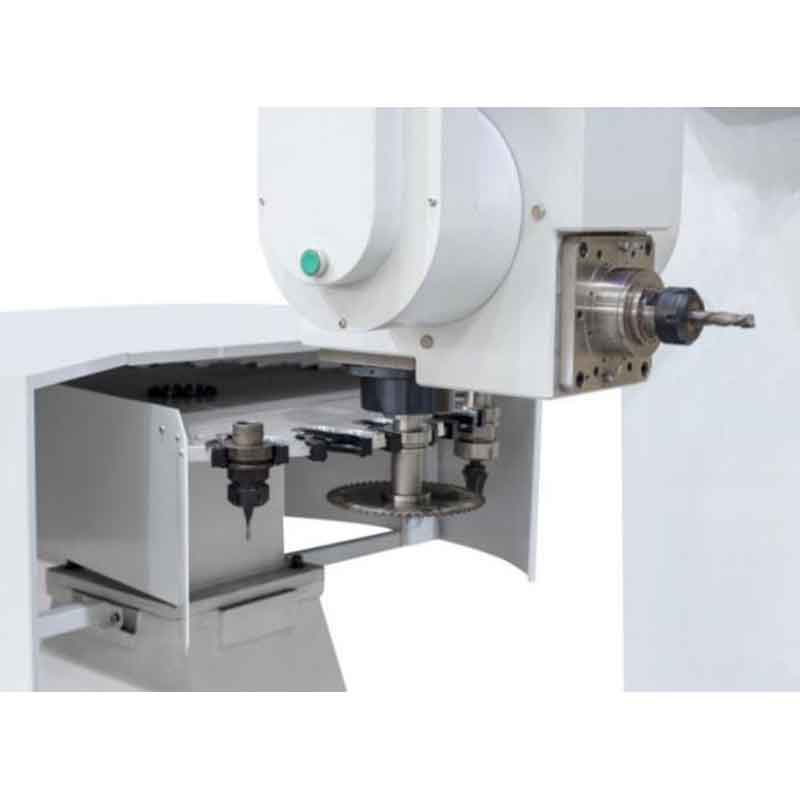

- AUTOMATIC TOOL MAGAZINE WHICH CAN HOLD 15 TOOLS AT MOST WITH TOUCH OFF DEVICE

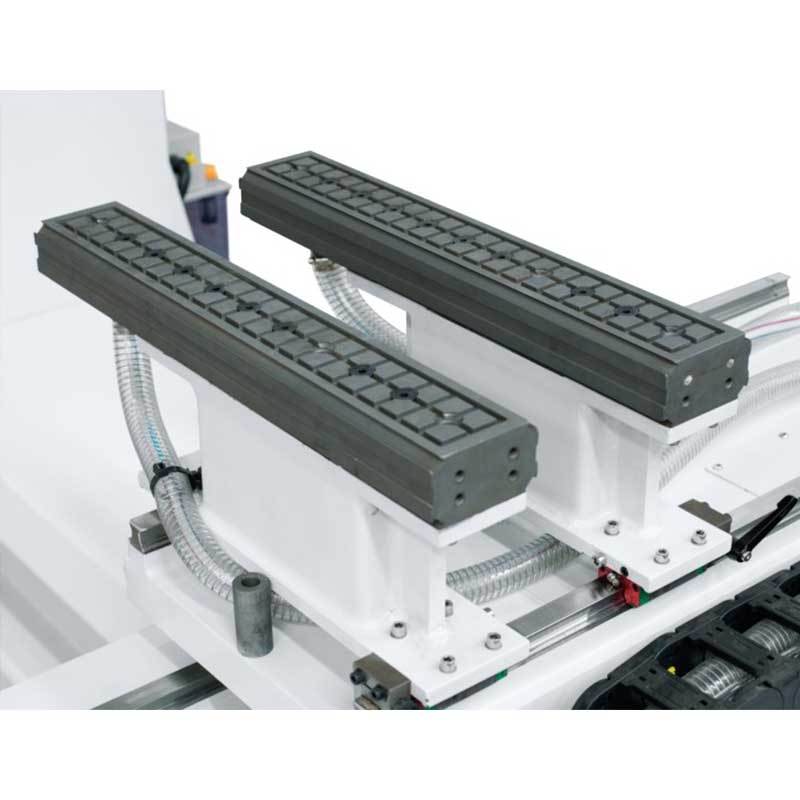

- DOUBLE TABLES TO HOLD DIFFERENT WORKPIECES FOR SIMULTANEOUS PROCESSING SAWING, DRILLING, MILLING, SLOTTING, MALE AND FEMALE TENON, MDF OR SOLID WOOD CAN BE PROCESSED
- CONTROLLED BY COMPUTER INTEGRATED MACHINING CENTER
- CASTING WOODEN MODELS, DINING CHAIR PARTS, AND FIVE-DIMENSIONAL COMPLEX PARTS OF BEDROOM FURNITURE
| Model | RF-5AH-ATC |
| X Working stoke | 3080/3700mm |
| Y/V Working stoke | 1900mm |
| Z Working stoke | 800/1000mm |
| A/C axis (Working area of Z axis) | A:unlimited C:±370° |

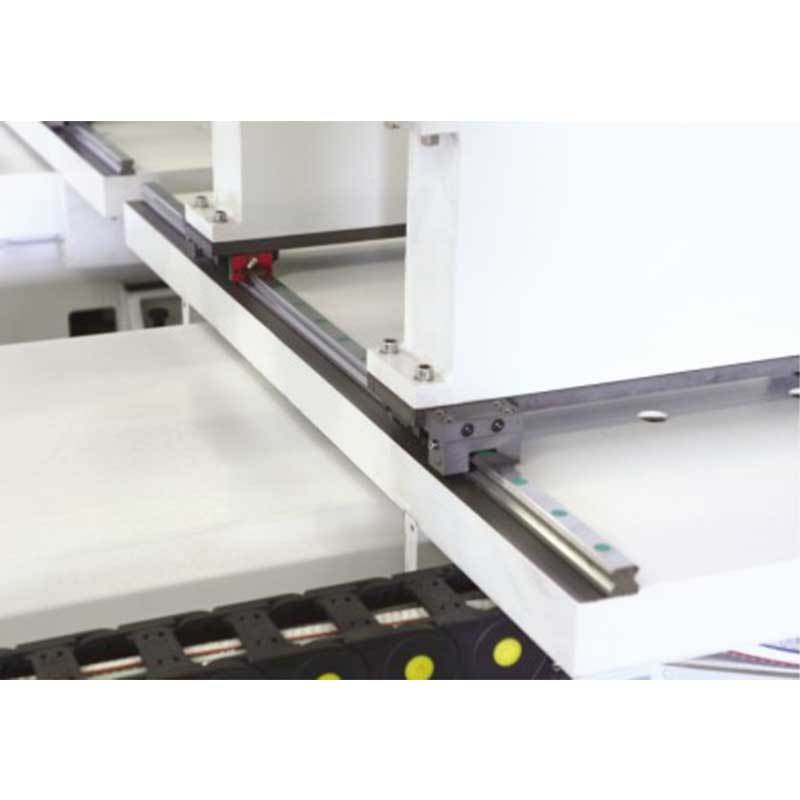

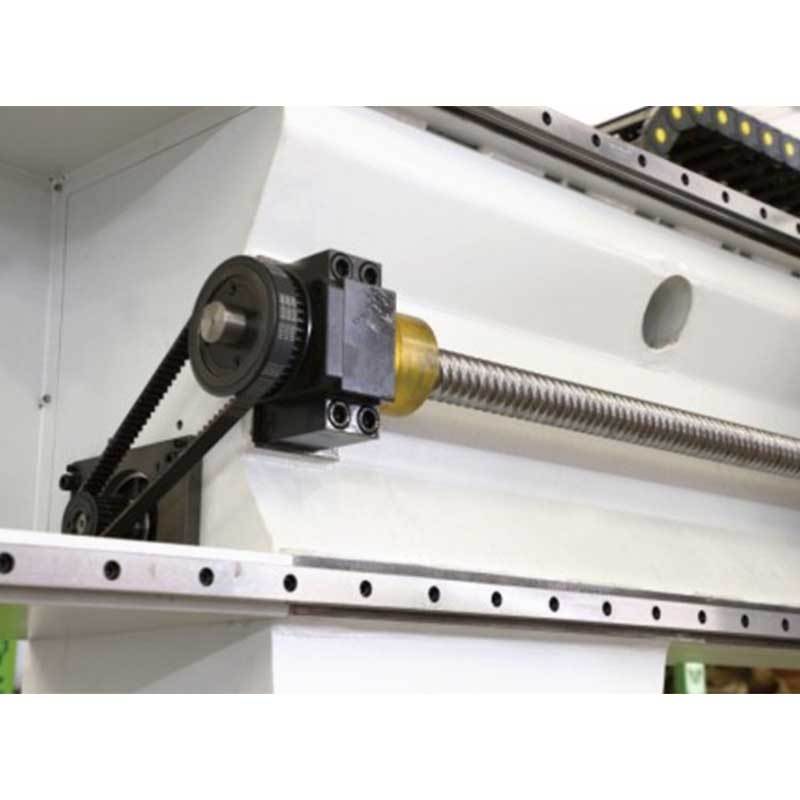

| Transmission type | Precision ball screws for X Y Z Axis |
| Spindle power | 2*9.6KW+10KW |
| Spindle mode | Air-cooling spindle |
| Working speed | 20-50m/min |
| Driver | Taiwan Syntec |

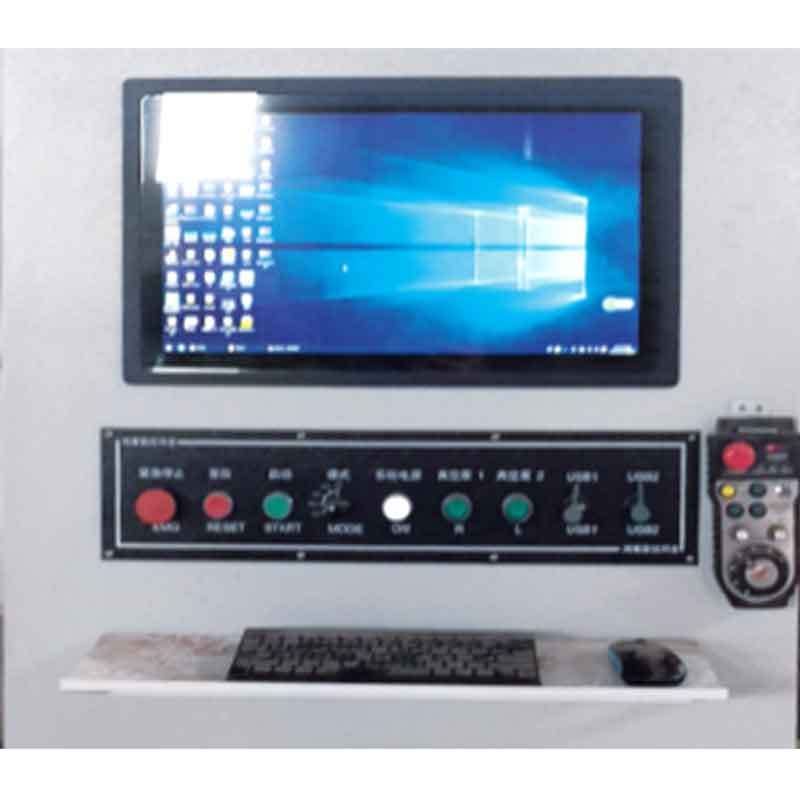

| Operation system | Taiwan Syntec computer control system |
| Software available | Alphacam |
| Operation instruction | G-code, *.NC |
