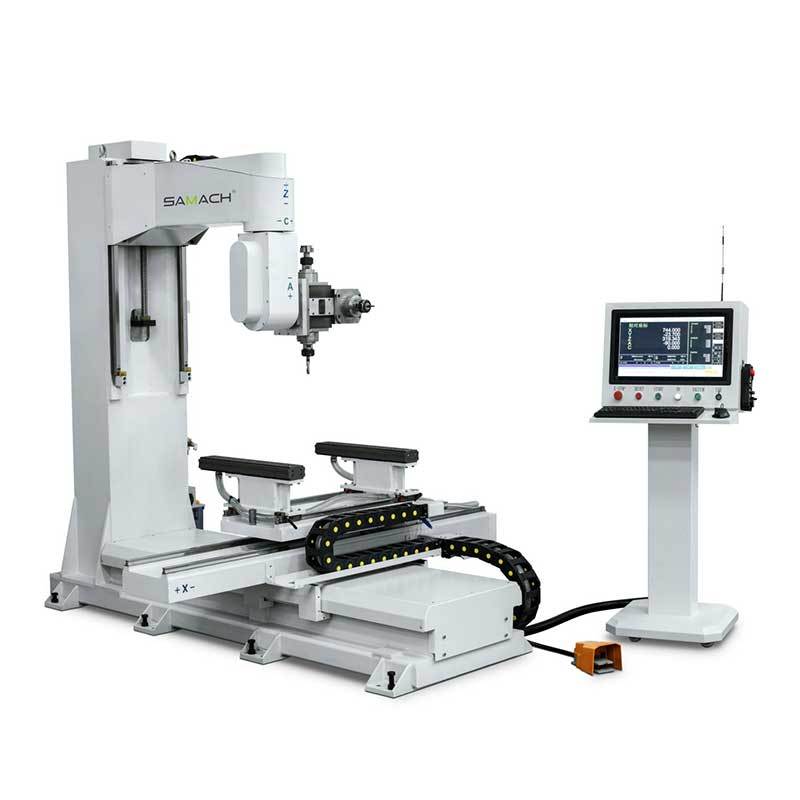

5 Axis CNC Center RF-5JET-S

  • MAINLY USED FOR DINING CHAIRS AND OTHER STRIP WORKPIECES
  • IT CAN COMPLETE THE TENONING, SLOT MILLING, DRILLING OF 3 SURFACES AND 2 SIDES MULTIPLE PROCESSES
  • A COMPREHENSIVE MACHINING CENTER
Model RF-5JET-S
Working stroke X*Y/V*Z 1500*1220*600mm
A/C axis stroke ±370°
Transmission type Precision ball screws
Spindle power 2*7.5KW
Spindle mode Air-cooling spindle
Spindle speed 0-24000 rpm/min
Working speed 20-50m/min
Driver Taiwan Syntec

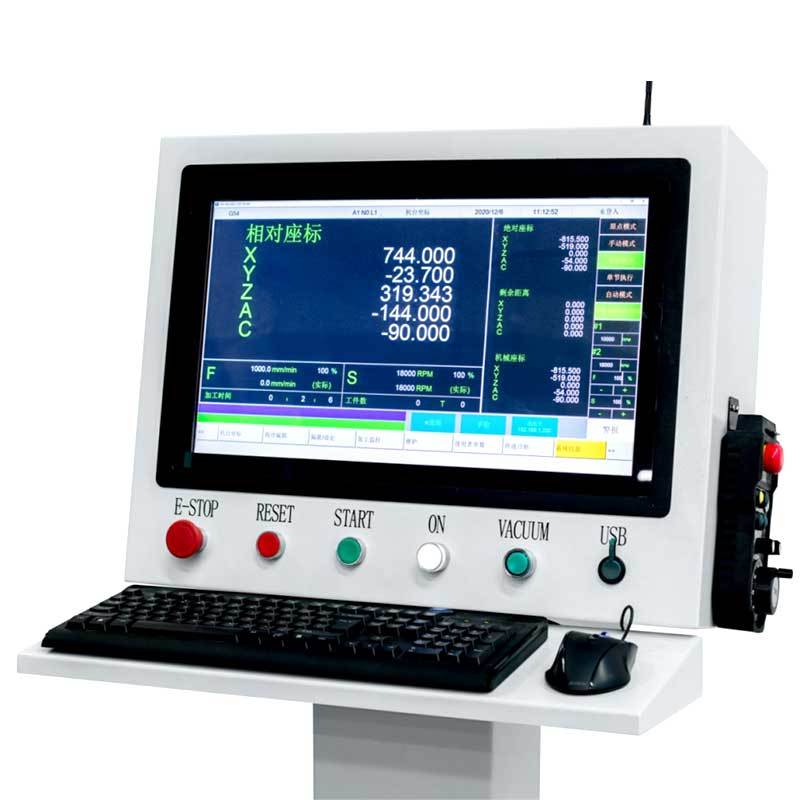

Operation system Taiwan Syntec computer control system
Software available Alphacam
Operation instruction G-code, *.NC
