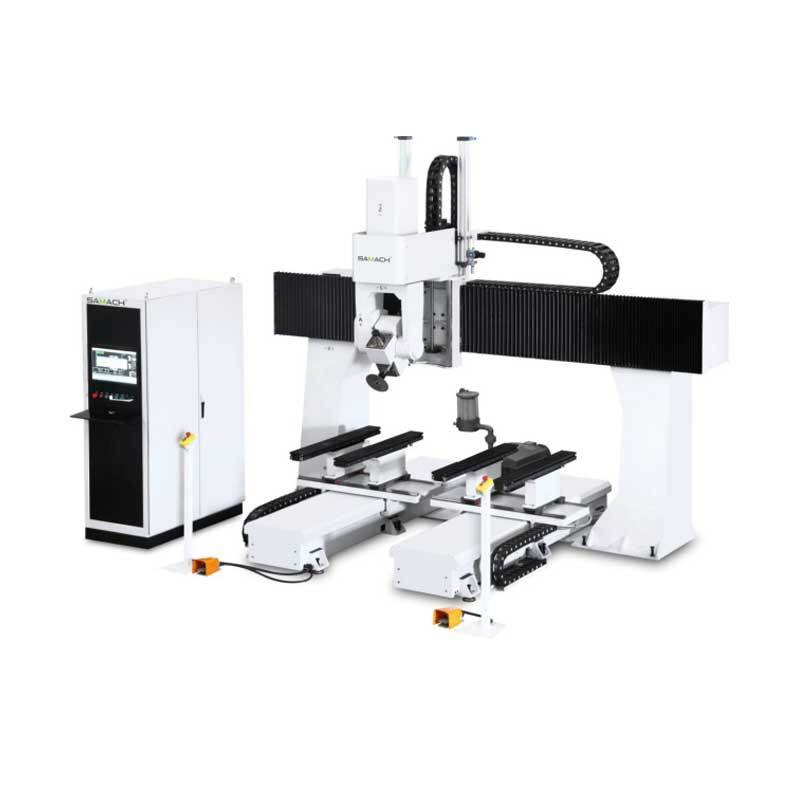

5 Axis CNC Center RF-5AH

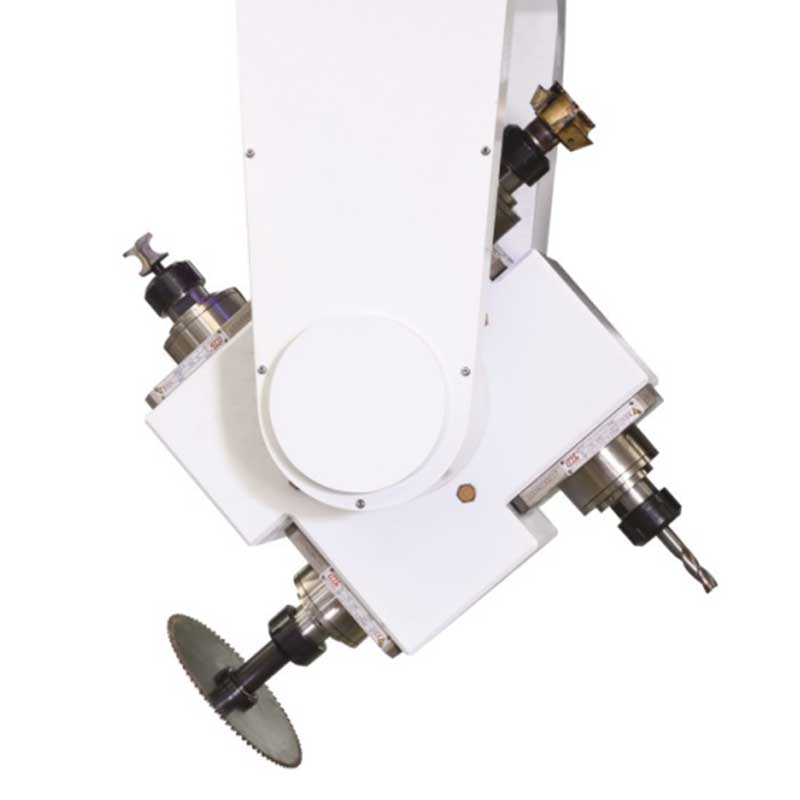

- 4 INDEPENDENT SPINDLES ARE CONTROLLED BY THE COMPUTER TO MOVE AT THE SAME TIME AND CAN DO THE SAME WORK OR DIFFERENT WORK AT THE SAME TIME

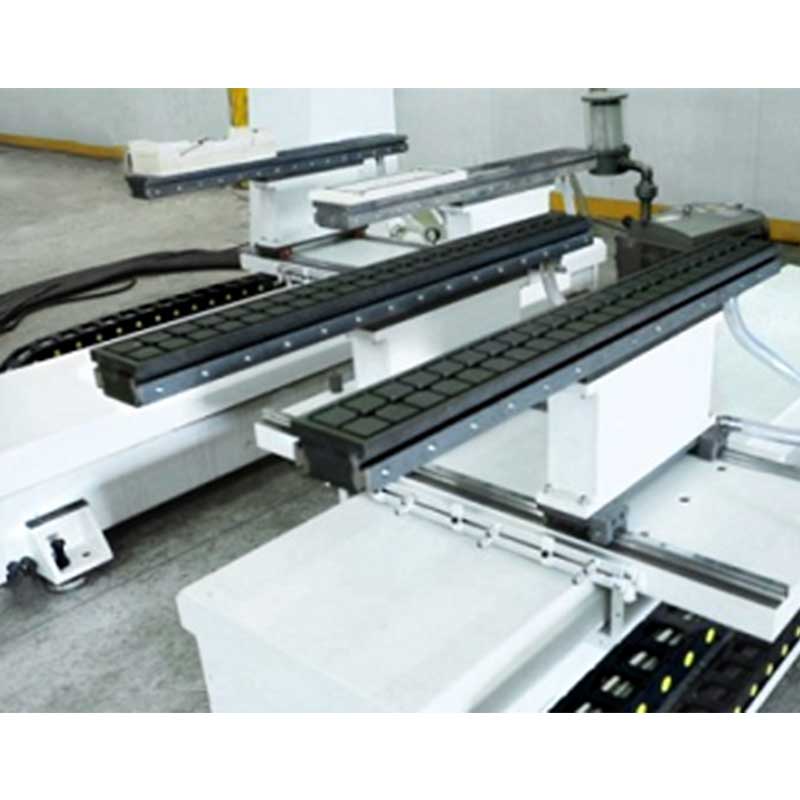

- DOUBLE TABLES TO HOLD DIFFERENT WORKPIECES FOR SIMULTANEOUS PROCESSING

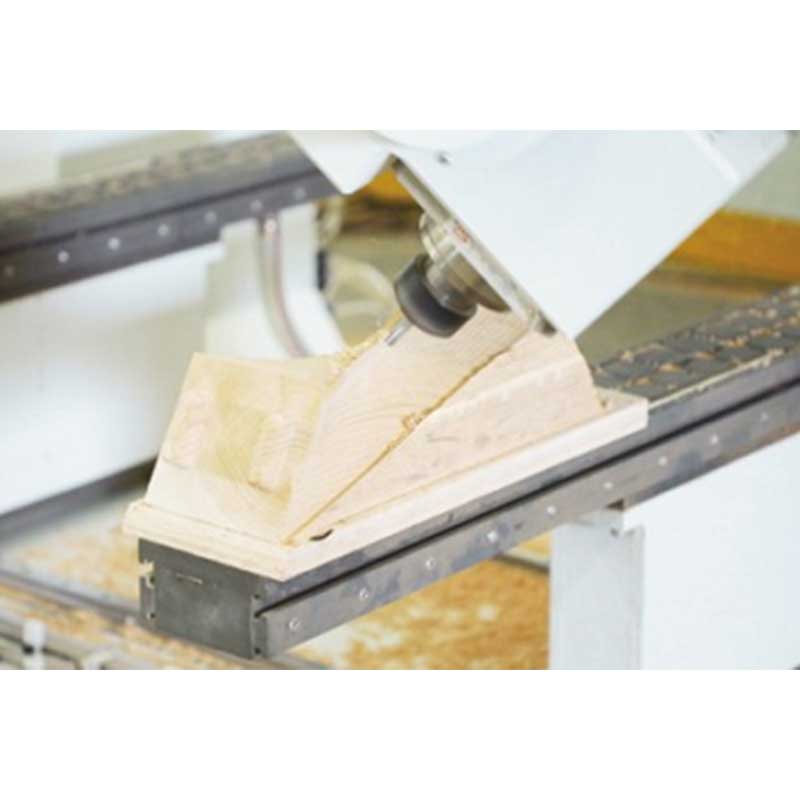

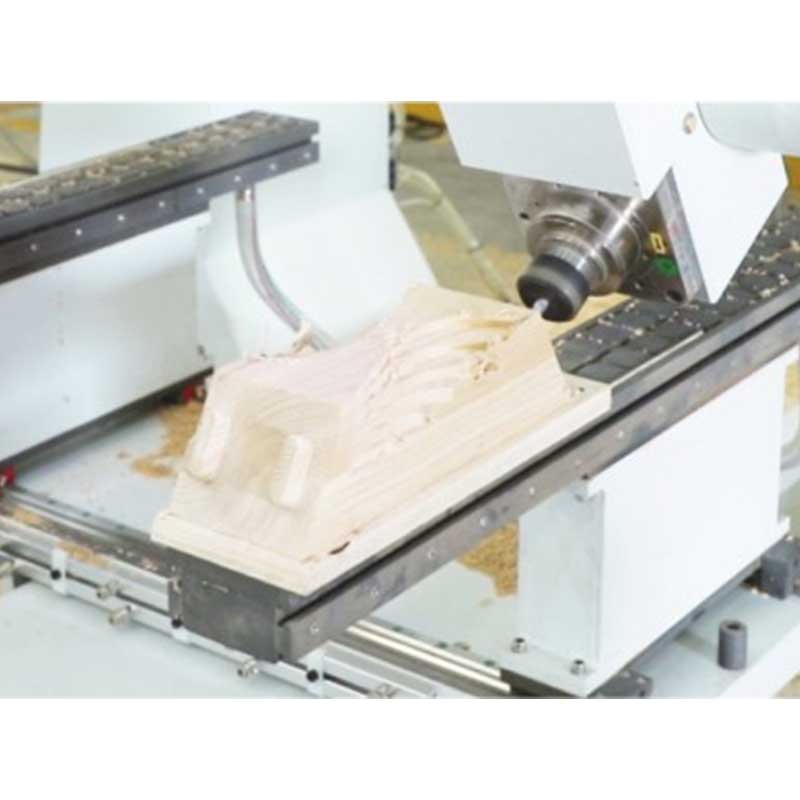

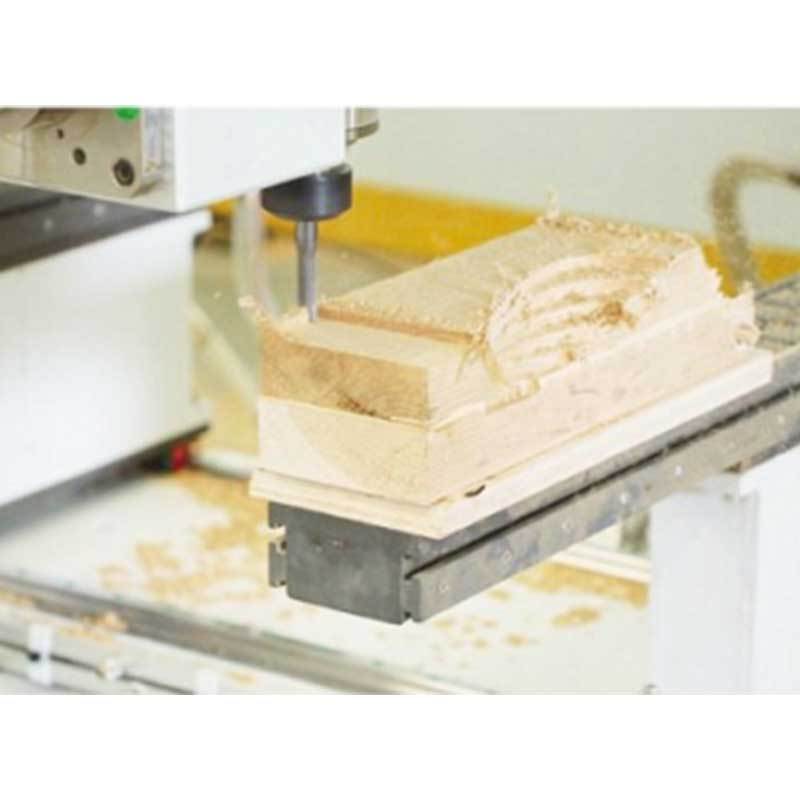

- SAWING, DRILLING, MILLING, SLOTTING, MALE AND FEMALE TENON, MDF OR SOLID WOOD CAN BE PROCESSED. CONTROLLED BY COMPUTER INTEGRATED MACHINING CENTER
- CASTING WOODEN MODELS, DINING CHAIR PARTS, AND FIVE-DIMENSIONAL COMPLEX PARTS OF BEDROOM FURNITURE
| Model | RF-5AH |
| Working stroke X*Y/V*Z | 3080*1900*800mm |
| A/C axis stroke | A:unlimited C:±370° |

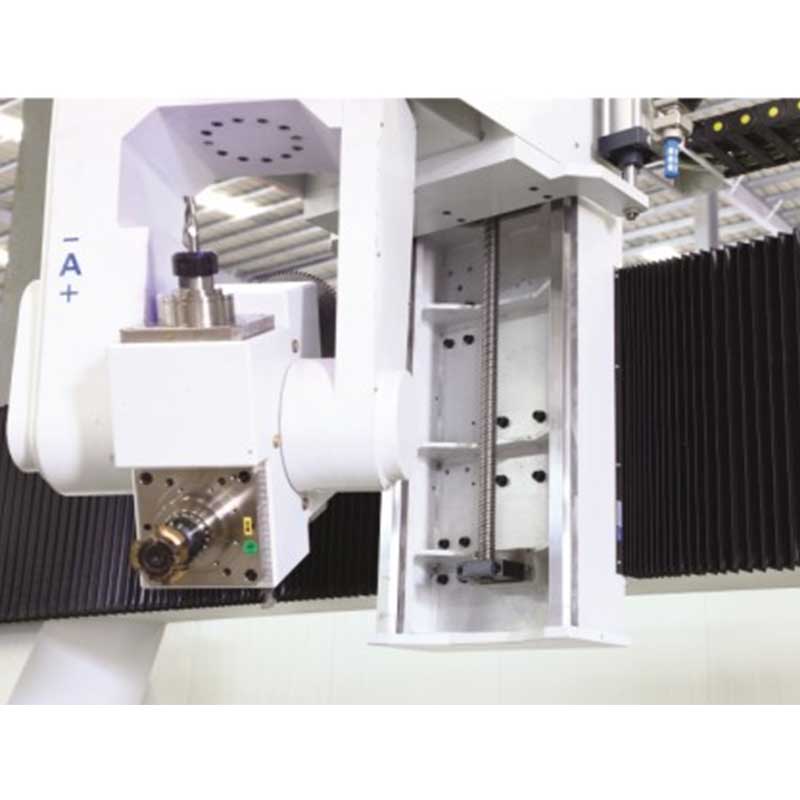

| Transmission type | Precision ball screws for X Y Z Axis |
| Spindle power | 4*9.6KW |
| Spindle mode | Air-cooling spindle |
| Spindle speed | 0-24000 rpm/min |
| Working speed | 40m/min |
| Driver | Taiwan Syntec |
| Operation system | Taiwan Syntec computer control system |
| Software available | Alphacam |
| Operation instruction | G-code, *.NC |
| Net weight | 5500kg |
