4 Spindles Four Sides Moulder

  • DIFFERENT WIDTH CAN BE CHOOSED. 160/180/210/230MM
  • DIFFERENT CUTTERS ARE OPTIONAL FOR 4 SPINDLES

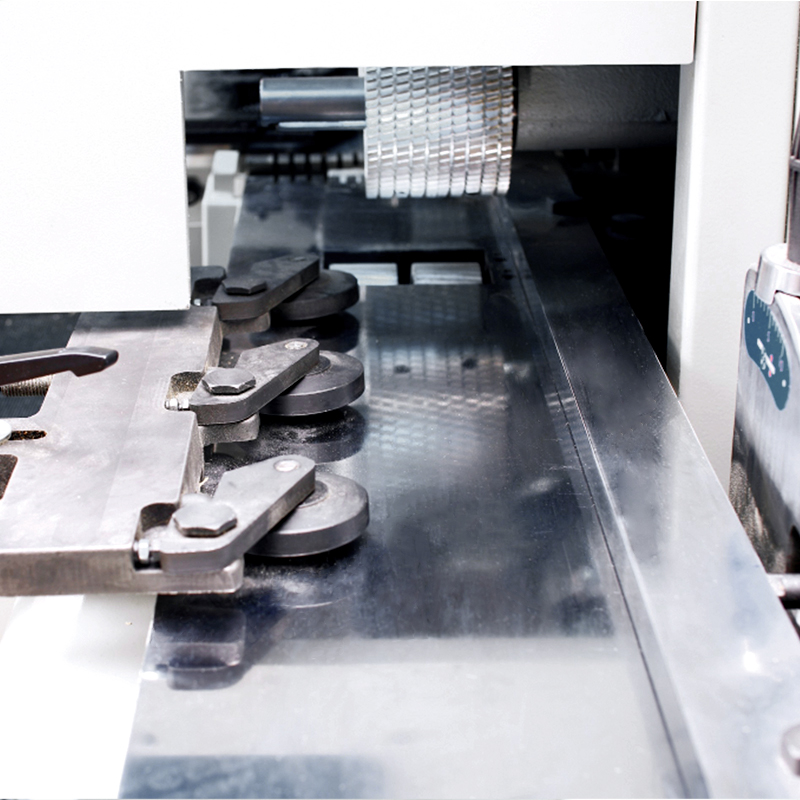

  • THE SIDE FEED DEVICE WHICH COULD ENSURE INFEED SMOOTHLY

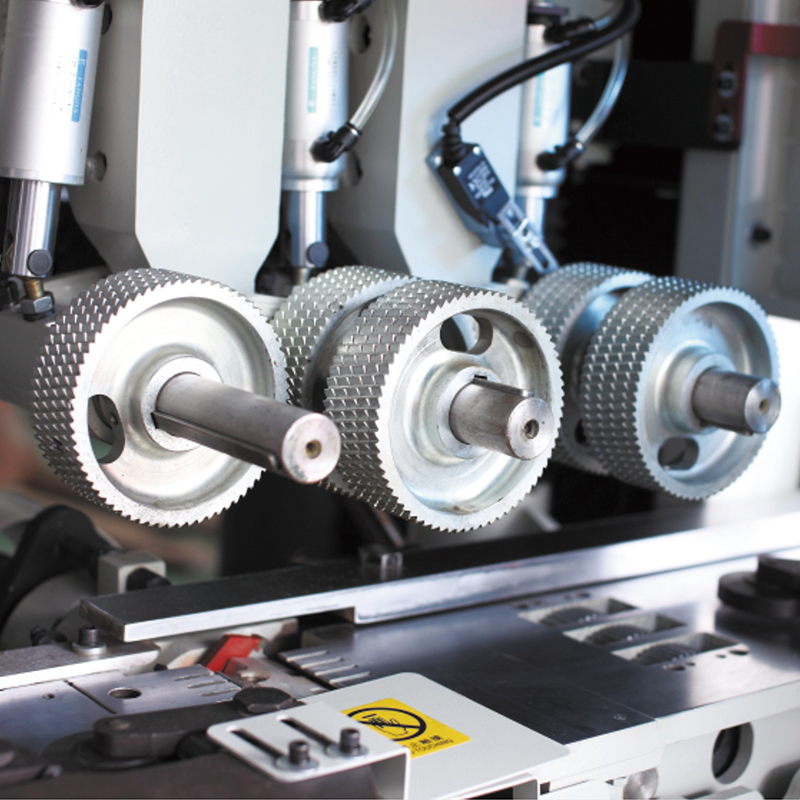

  • THE FLAT TOOTH TYPE STEEL ROLLER WITH SPECIAL TREATMENT ARE DURABLE IN USE
  • THERE ARE SECTIONS FOR ADJUSTING PRESSURE ACCORDING TO REQUEST
  • THE SPEED OF FEEDING IS CONTROLLED IN FREQUENCY

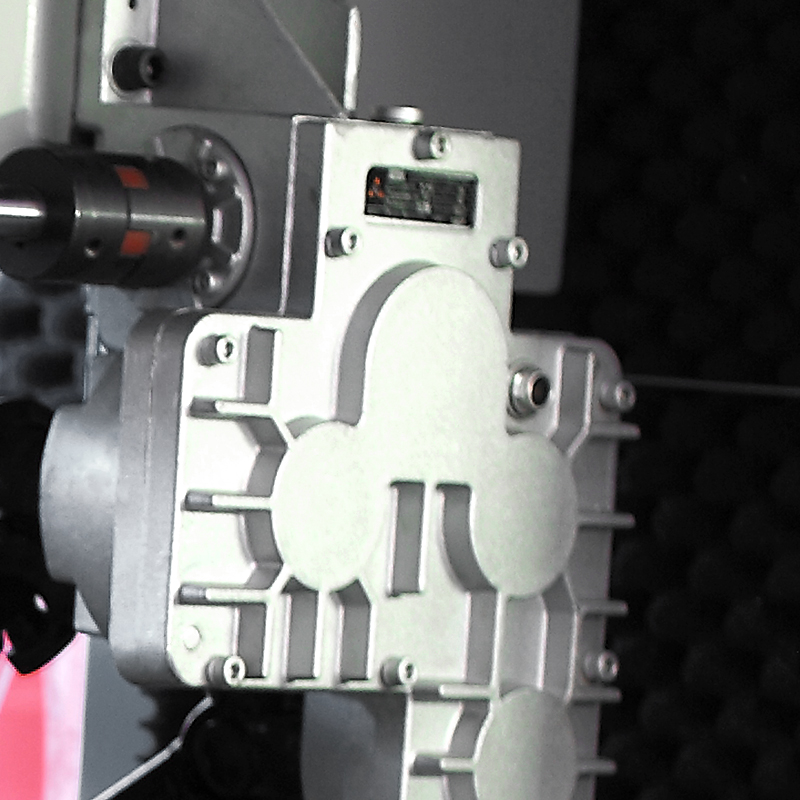

  • HEAVY DUTY GEAR BOX AND CARDAN SHAFT DRIVEN FEEDING SYSTEM
Model RMB416 RMB418
Working width 25-160mm 25-180mm
Working thickness 8-120mm 8-130mm
Min working length
(Intermittent /Continuous)
580/300mm 580/300mm
Blade diameter Ф40mm Ф40mm
Feeding speed 6-35m/min 6-35m/min
Main spindle speed 7000r/min 7000r/min
Trimming blade diameter Φ145/Φ150mm Φ145/Φ150mm
Lower blade diameter Φ125mm Φ125mm
Left/right blade diameter Φ110-Φ170mm Φ110-Φ170mm
Upper blade diameter Φ125-Φ160mm Φ125-Φ160mm
Total motor power 18.75kw 24.25kw
Lower blade power 3kw 4kw
Left/right blade power 4kw 5.5kw
Upper blade power 4kw 5.5kw
Feeding motor power 3kw 3kw
Lifting motor power 0.75kw 0.75kw
Pneumatic source pressure 0.6Mp 0.6Mp
Dust outlet diameter 4*Φ150mm 4*Φ150mm
Overall size 3150*1550*1800mm 3150*1550*1800mm
Weight 2600kg 2700kg
