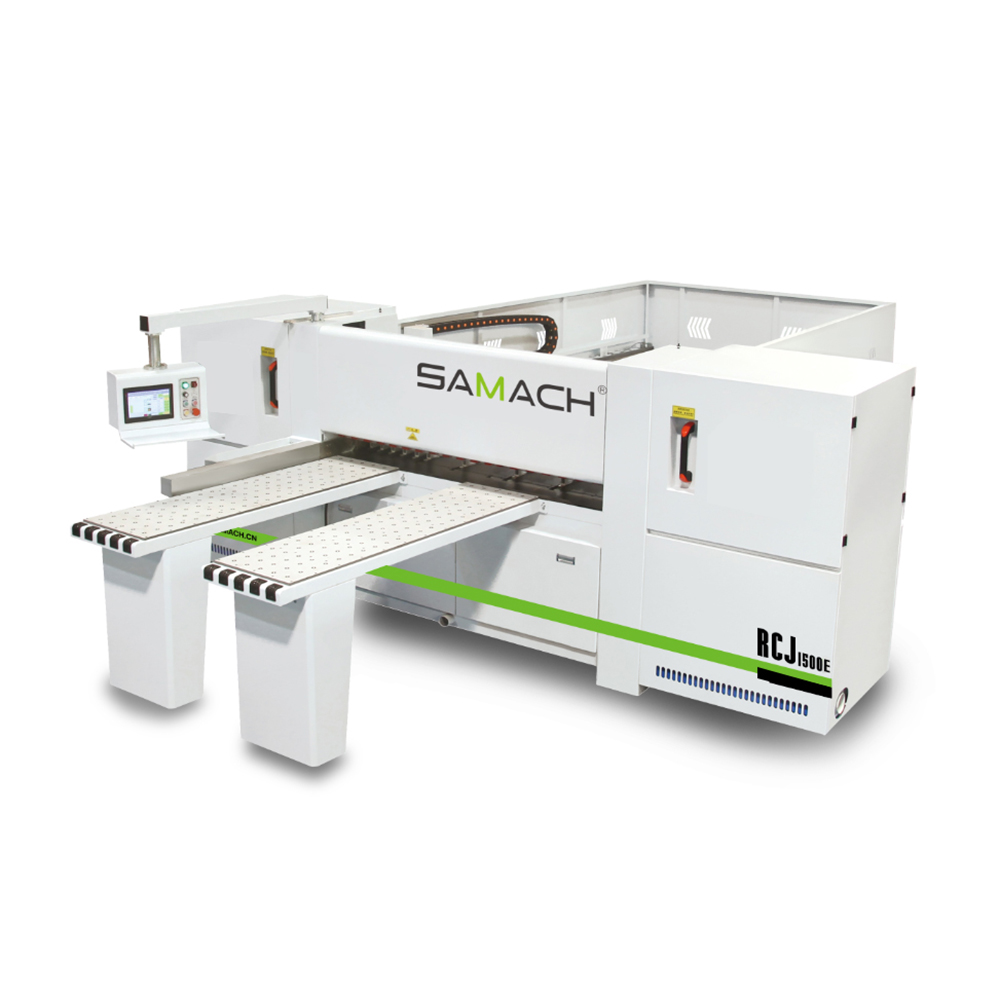

CNC Panel Saw RCJ1500E

  • INDEPENDENT LIFTING OF MAIN AND GROOVE SAWS, 15KW FOR MAIN MOTOR, 2.2KW FOR GROOVE
  • PERFECT COMBINATION OF RACK AND PINION TRANSMISSION AND REDUCER CONTROL ACHIEVE ±0.15 ACCURACY
  • WITH 8/11/13/15/17/18 PCS OF GRIPPERS FOR DIFFERENT WIDTH BOARDS
  • BAR CODER WHICH CAN READ COMMON FILES, MPR, DXF, BAN, ETC
  • UPPER SIDE PRESSURE DEVICE
Model RCJ1500E
Work length 1450mm
Work thickness 100mm
Main saw blade diameter Ф355mm
Main saw shaft diameter Ф80mm
Main saw shaft speed 4800rpm
Groove saw blade diameter Ф180mm
Groove saw shaft diameter Ф55mm
Groove saw shaft speed 6900rpm
Saw base forward speed 100m/min
Saw base retreat speed 150m/min
Main saw motor 15kw
Groove saw motor 2.2kw
Saw base drive motor 1.5kw
Automatic feeding motor 2.0kw
High pressure blower motor 2.2kw
Total power 23kw
Automatic feeding speed 100m/min
Gripper quantity 8
Air pressure 5-7kg/cm²
Height of worktable away ground 950mm
Machine size 4100*4000*1800mm
Optimization software&Printer Optional
