  • THE ANGULAR PANEL SAW IS DESIGNED FOR THE MEDIUM-LARGE COMPANY AND IT CAN BE FITTED WITH AUTOMATIC LOADING SYSTEMS TO ENABLE HIGH PRODUCTION
  • AUTOMATIC LENGTHWISE AND CROSSWISE UNDER DESIRED SEQUENTIAL CUTTING WITHIN THE ANGULAR SAW IN ONE PROCESS, SUITABLE FOR MASS CUTTING

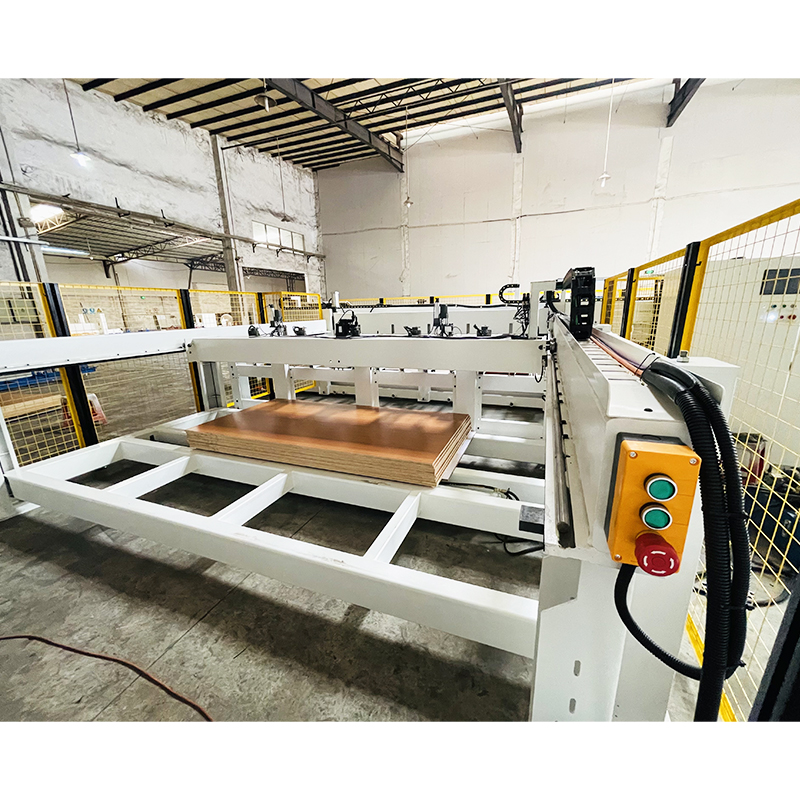

  • IT IS EQUIPPED WITH HEAVY DUTY REAR FEEDING HYDRAULIC LIFTING TABLE
  • DETAILED DAILY PRODUCTION REPORTS ALLOW AN EFFICIENT AND CONTINUOUS SUPERVISION OF THE PANEL SAW

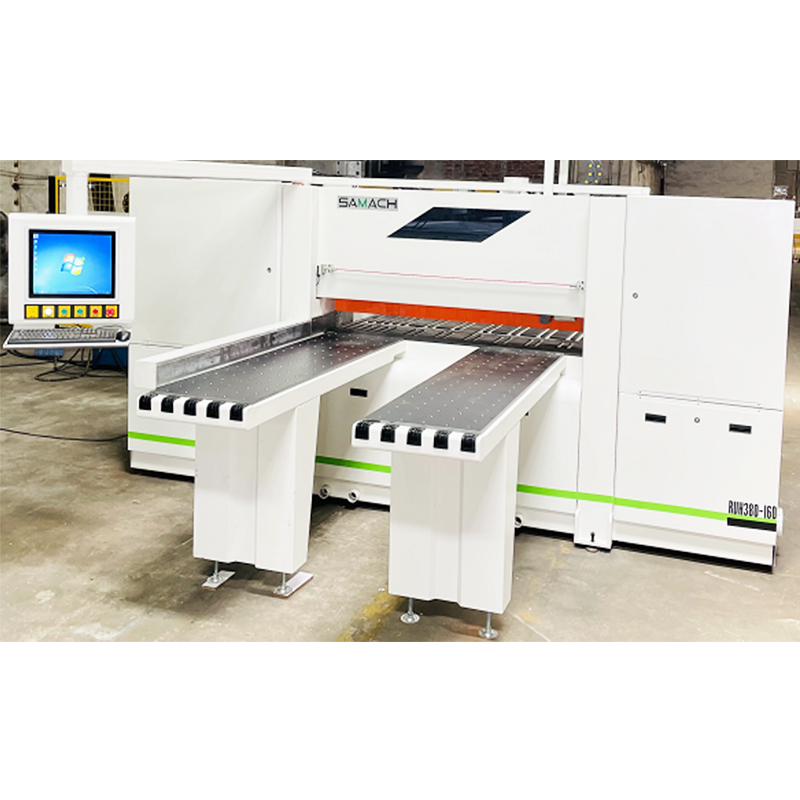

Model RVH380-160
Work width in horizontal ≤3800mm
Work length in vertical ≤1600mm
Work thickness ≤120mm
Main feed speed ≤80m/min
Cutting speed ≤100m/min

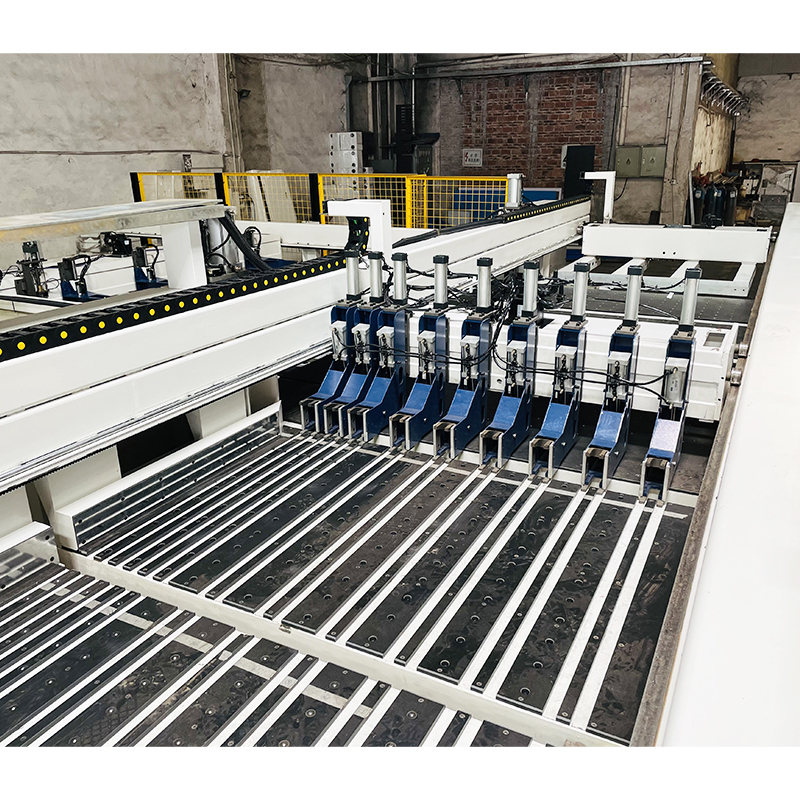

Main grippers power 1.3kw(High torque servo motor)*2pcs
Rear push motor power 1.3kw(High torque servo motor)
Saw carrier motor power 1.3kw(High torque servo motor)*2pcs
Main saw power 18.5kw(Aluminum alloy motor)*2pcs
Groove saw power 2.2kw(Aluminum alloy motor)*2pcs
Side pressure motor 0.4kw*2pcs
Fan power 2.2kw*2pcs
Total power 55.5kw
Main blade diameter 380-450mm
Main blade inner diameter 75mm(With positioning hole)
Groove saw diameter 200mm
Groove saw inner diameter 50mm
Lifting table load bearing 3T
Hydraulic motor 2.2kw
Size 8360*11250*2000mm
