Planning & Sanding Machine

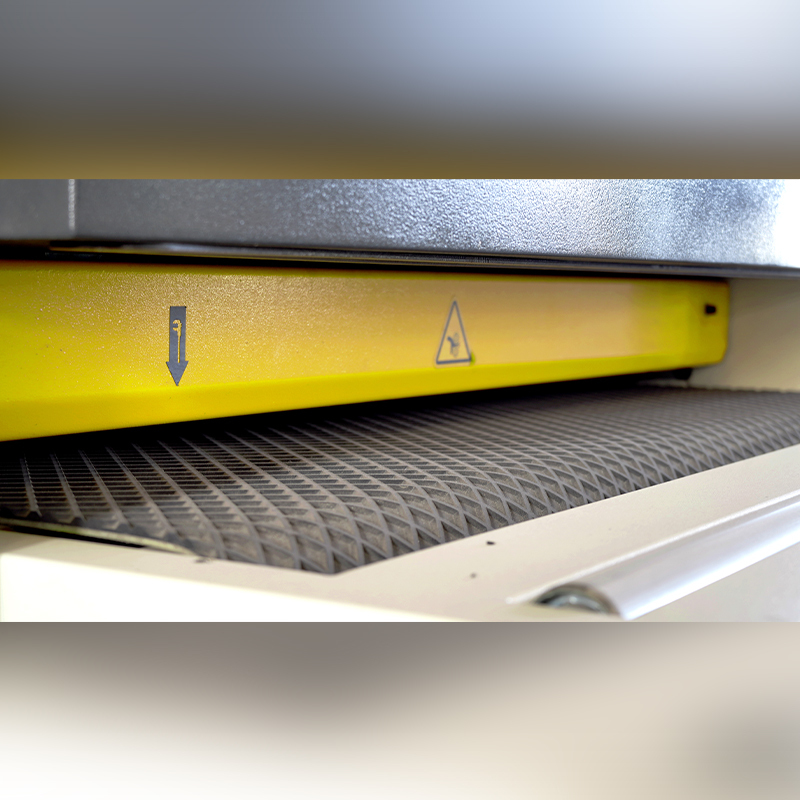

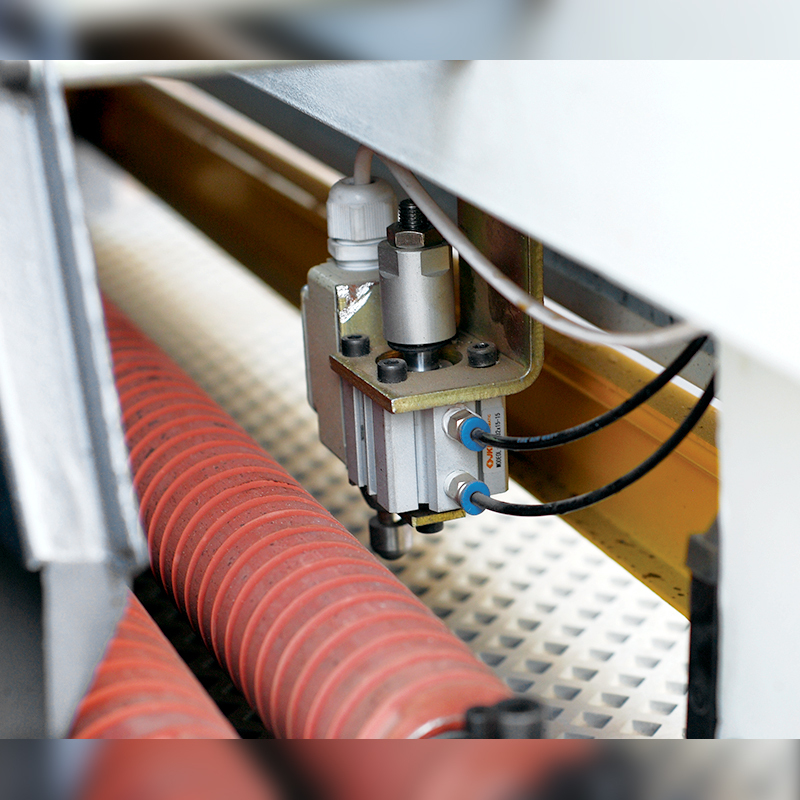

  • AUTOMATIC THICKNESS MEASUREMENT
  • WELL DESIGNED, CLOSE FITTING HOODS FOR PLANER CUTTER
  • PERFECT FOR EDGE LAMINATED PANELS AND SIMILAR TOUGH SANDING JOBS
  • THE COMBINAION OF PLANING HEAD FOLLOWED BY 2 SANDING HEADS MAKE IT FAST AND EFFICIENT WAY TO CALIBRATE AND SAND IN ONE PASS

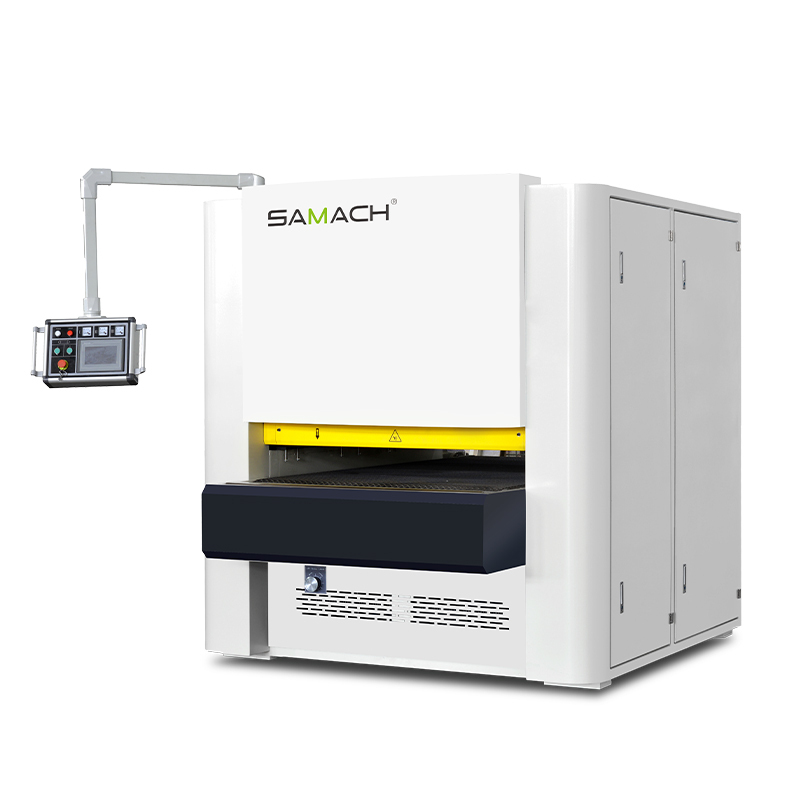

Model RBS630P-R-R(RP) RBS1000P-R-R(RP) RBS1300P-R-R(RP)
Working width 30-630mm 30-1000mm 30-1300mm
Working thickness 2-100mm 2-100mm 2-100mm
Feeding speed 5-25m/min 5-25m/min 5-25m/min
Total motor power 36.05kw 48.05kw 78.55kw
Speed of sucked air ≥25m/s ≥25m/s ≥25m/s
Sanding belt(cloth) 80/120mesh 80/120mesh 80/120mesh
Carbide inserts 216 pieces 360 pieces 450 pieces
#1 sanding shelf  15kw, 9 spirals ø180mm planer 18.5kw, 9 spirals ø180mm planer  22kw, 9 spirals ø180mm planing tool shaft
#2 sanding shelf  11kw, ø190mm eccentric steel roller 15kw, ø190mm eccentric steel roller 30kw, Ø240mm eccentric steel roller

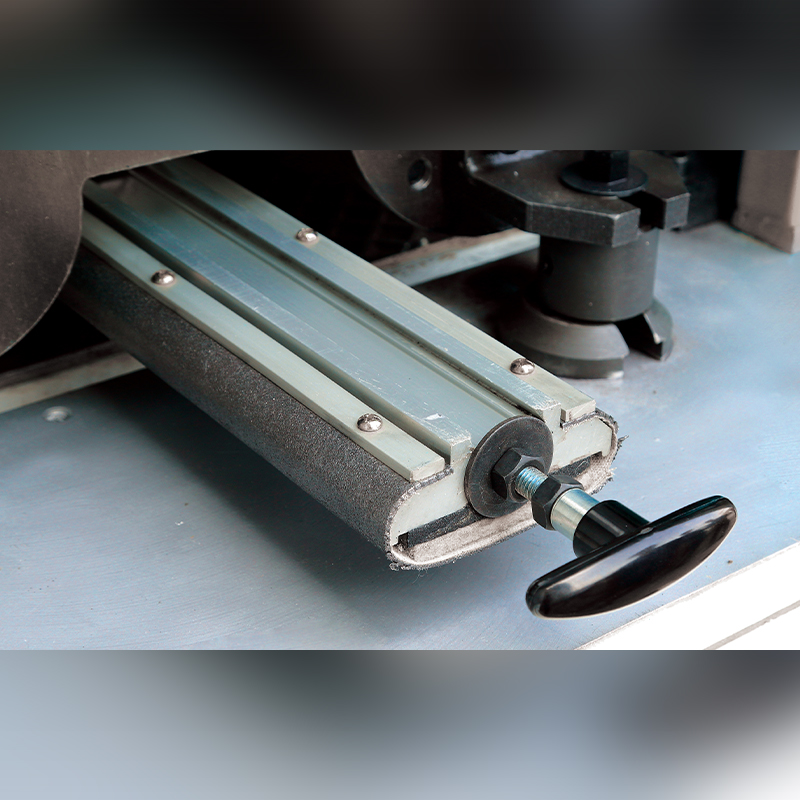

#3 sanding shelf  7.5kw,ø165mm 85sh eccentric steel roller, aluminum sanding pad 11kw,ø165mm 85sh eccentric steel roller, aluminum sanding pad 22kw,ø210mm 85sh eccentric steel roller, aluminum sanding pad
Overall dimensions 2260*1365*2060mm 2260*1735*2110mm 2840*2100*2270mm
