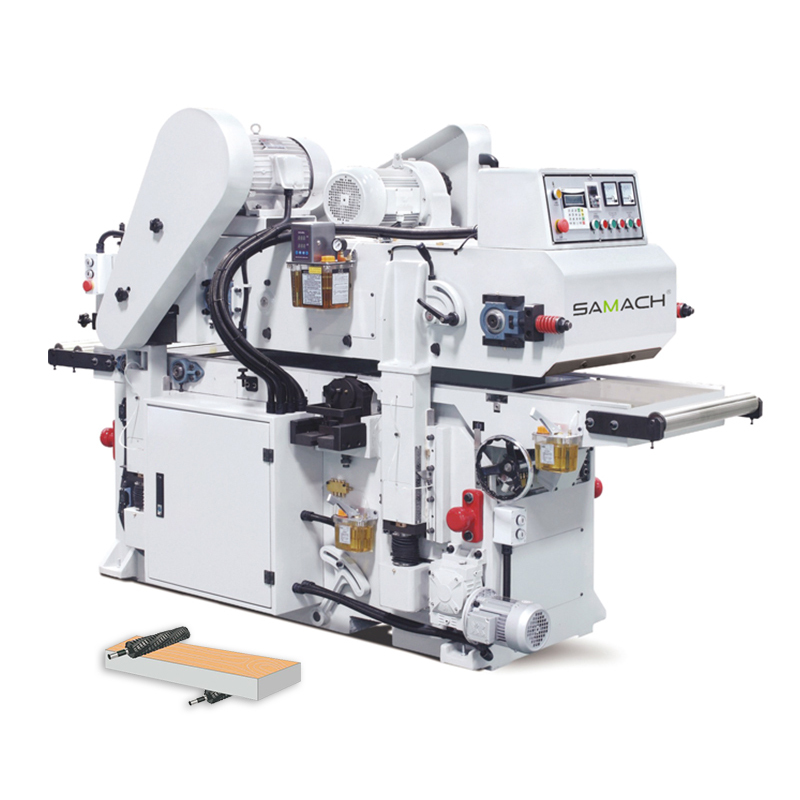

Double Sides Planer for B Series

  • MACHINE FRAMES ARE ALL RESIN SAND CASTING TO AVOID ANY DEFORMATION

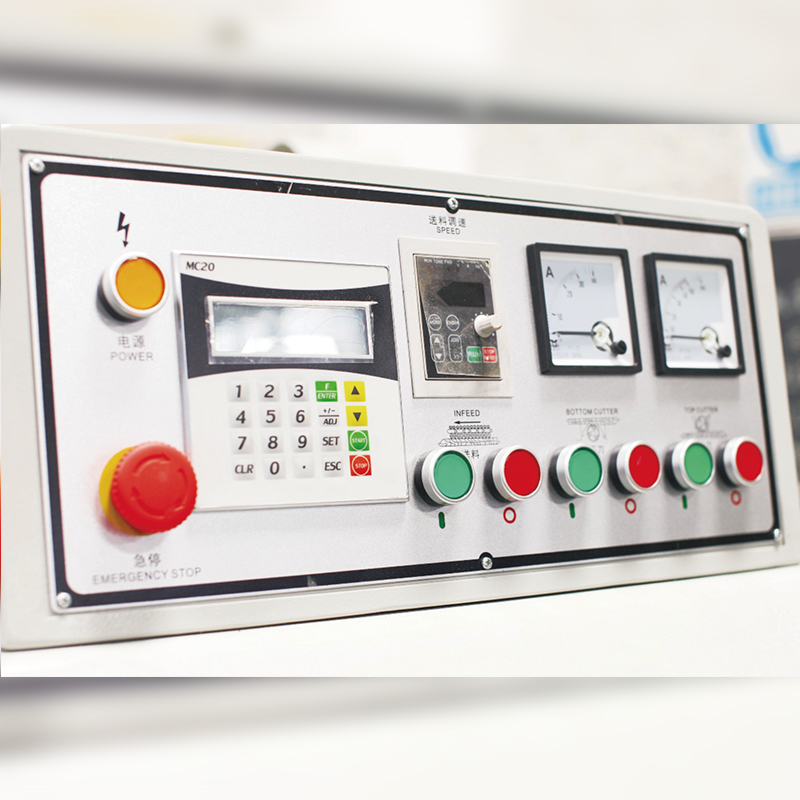

  • VFD SPEED ADJUST

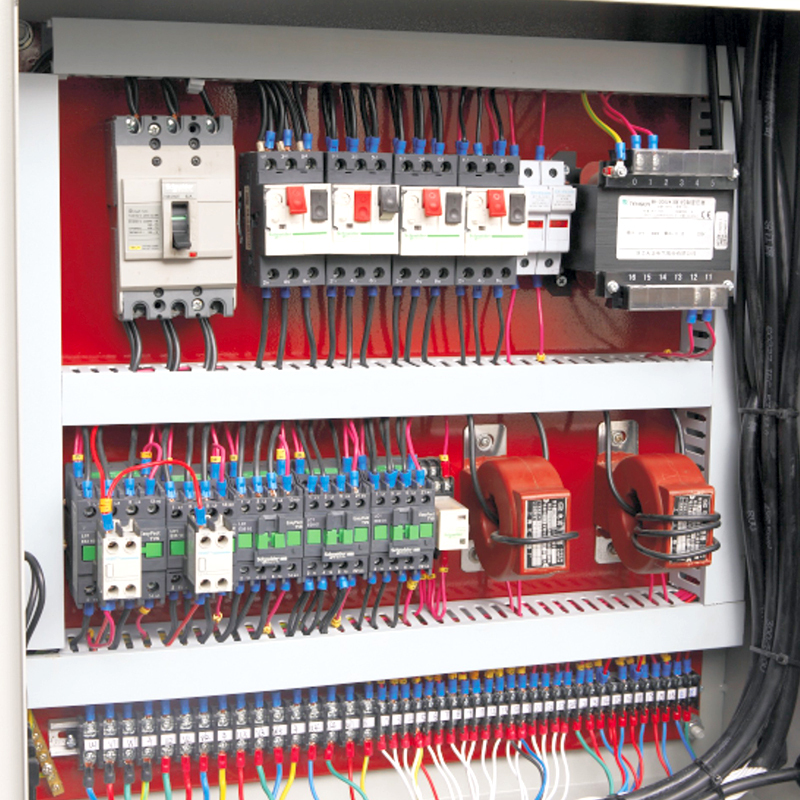

  • SCHNEIDER ELECTRICAL ELEMENTS

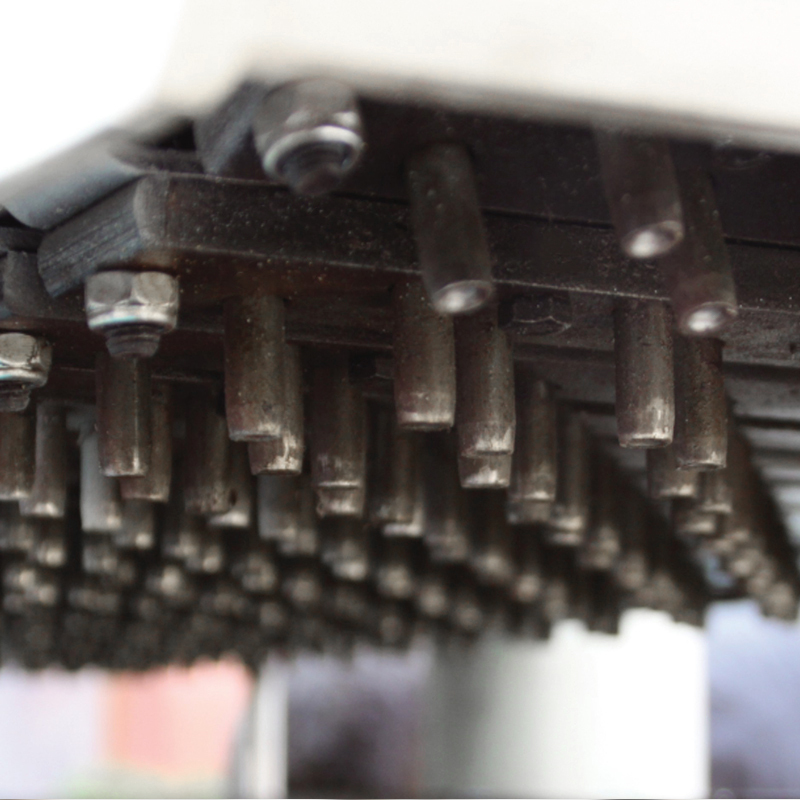

  • PRESSURE PLATE FOR SHORT WORKPIECE

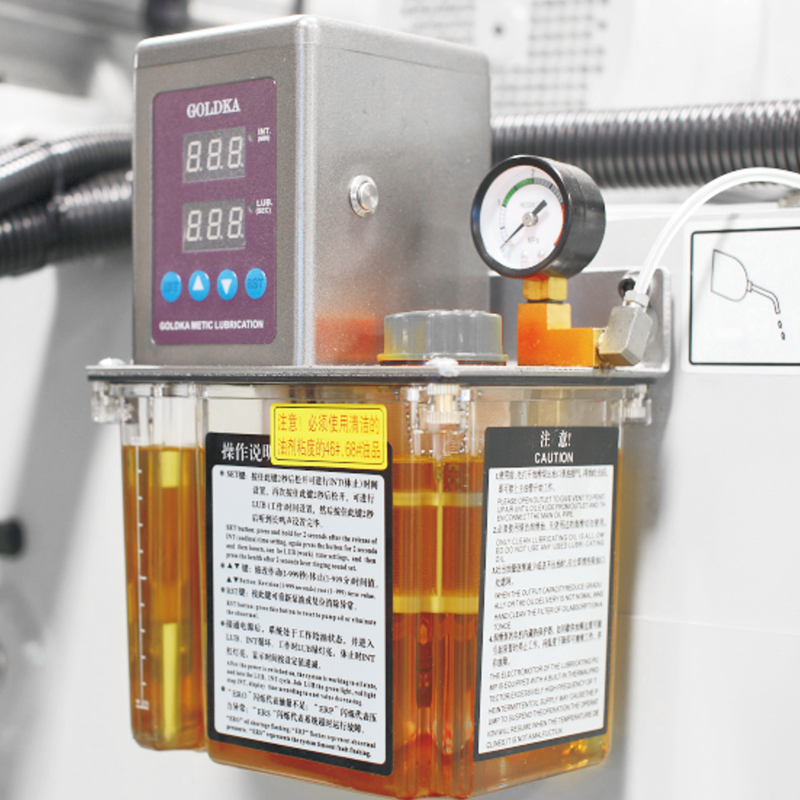

  • AUTOMATIC LUBRICATION
Model RMB470B RMB630B
Working thickness 9-200mm 9-200mm
Working width 10-470mm 10-630mm
Min. working length 300mm(200mm) 300mm(200mm)
Max. cutting depth Upper:5mm, Bottom:5mm Upper:5mm, Bottom:5mm
Cutting spindle dia. Ф100mm Ф100mm
Cutting spindle speed 5000r/min 5000r/min
Feeding speed 7-13m/min 7-13m/min
Top Spindle Power 7.5kw 15kw
Bottom spindle Power 5.5kw 7.5kw
Feeding motor power 2.2kw 2.2kw
Lifting motor power 0.37kw 0.37kw
Total power 15.57kw 25.07kw
Dust exit dia. Ф150mm Ф150mm
Cutter Head Spiral Spiral
Overall size(mm) 2650*980*1800mm 2650*1150*1800mm
Net weight 2200kg 2600kg

Double Sides Planer
