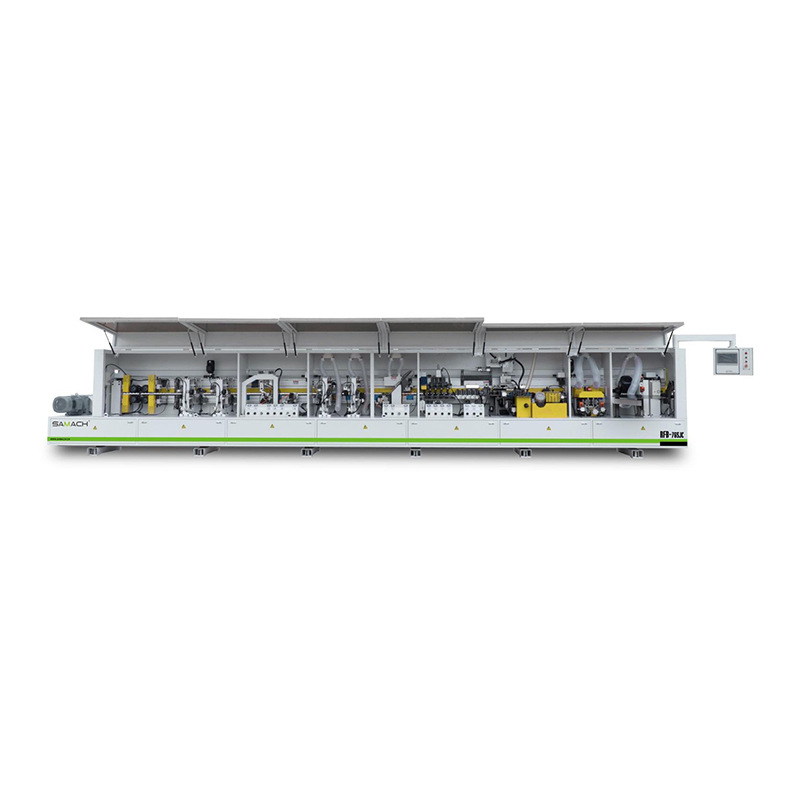

Automatic Inclination Edge Banding Machine with Pre-milling

Automatic Inclination Edge Banding Machine

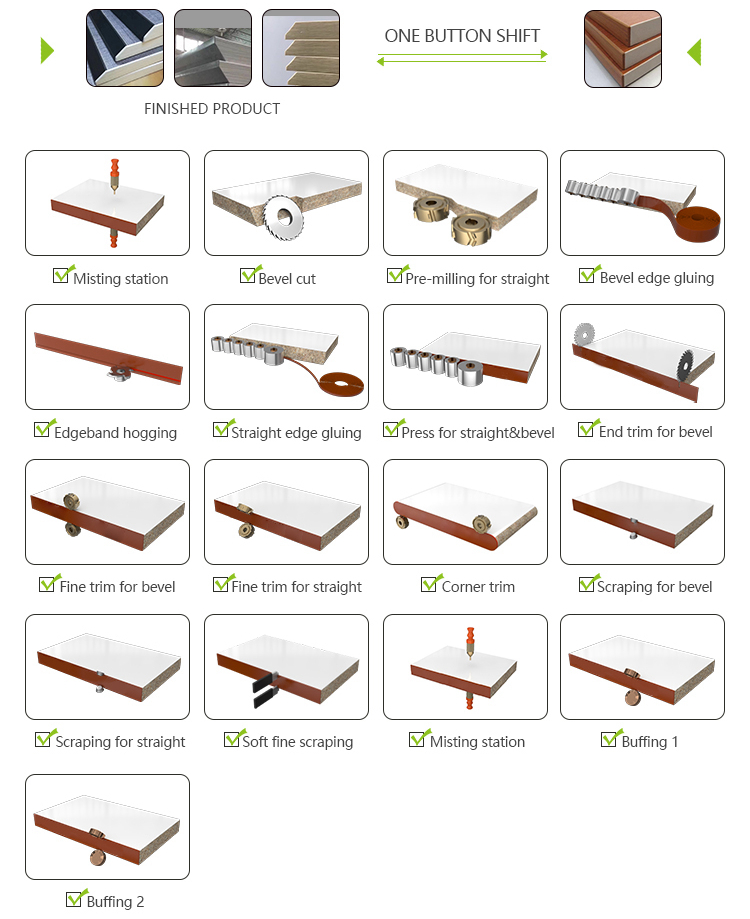

  • STRAIGHT & BEVEL EDGE OR TOTALLY STRAIGHT CAN BE DONE IN ONE MACHINE
  • MIN SIZE FOR BEVEL & STRAIGHT: 250*250*15MM
  • MIN SIZE FOR STRAIGHT: 120*120*9MM
  • THE STRAIGHT PART EDGE SHOULD BE OVER THAN 5MM
  • THICKNESS OF PVC:0.6-15MM FOR BEVEL & STRAIGHT, 0.4-3MM FOR STRAIGHT
Model RFB765JC
Panel length Inclined Straight: ≥250mm
Straight: ≥120mm
Panel width Inclined Straight: ≥250mm
Straight: ≥120mm
Panel thickness Inclined Straight:15-25mm
Straight: 9-50mm
Straight reserved: >5mm
Edge band thickness Inclined Straight: 0.6-1.5mm
Straight: 0.4-3mm
Infeed speed 0-22m/min (5.5kw feeding motor)
Lifting motor  0.37kw
Air pressure 0.6Mpa
Total power 32.5kw
Overall size 10400*1000*1900mm

Automatic Inclination Edge Banding Machine
